Description

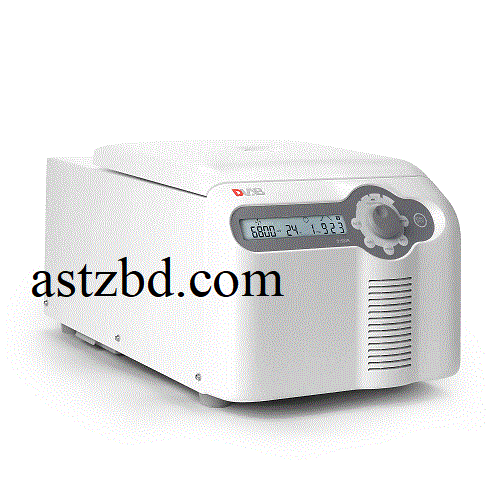

DLAB D1524R High Speed Refrigerated Centrifuge USA
- Short pre-cooling time of only 7minutes from room temperature to 4℃
- Up to 9 program storage capacity
- 3-layer sealed rotors ensure safe centifugation
- High-strength aluminum alloy rotor can be fully autoclavable at 121℃
- Rotor imbalance detection alarm
- Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation
- Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
- An external condensation tank prevents water accumulation within centrifuge chamber
| Description | Specification / Details |
|---|---|
| Cat.No. / Model | 9013111121 / D1524R (DLAB High Speed Refrigerated Micro Centrifuge) |
| Speed Range | 200–15,000 rpm (max 15,000 rpm), increment: 100 rpm |
| Max. RCF | 21,380 × g, increment: 10 × g |
| Speed Accuracy | – (typically ±20–50 rpm in DLAB high-speed series; not explicitly listed) |
| Rotor Type | – (High-strength aluminum alloy fixed-angle rotors; bio-safe options available) |
| Rotor Capacity | |
| Run Time | 30 sec – 99 min, HOLD (continuous running) |
| Acceleration / Braking Time | 25 sec ↑ / 25 sec ↓ (adjustable at 9 levels) |
| Temperature Setting Range | -20°C – +40°C (precise PID control; rapid pre-cooling) |
| Display | LCD (shows RPM/RCF, time, temperature, program status) |
| Power Consumption | 500 W |
| Power Supply | Single-phase, 100–120 V or 200–240 V, 50/60 Hz (universal voltage) |
| Noise Level | ≤56 dB (very quiet for refrigerated high-speed class) |
| Motor Type | Brushless DC motor (maintenance-free, reliable) |
| Dimensions (W × D × H) | 332 × 553 × 283 mm (compact footprint for benchtop) |
| Weight | 30 kg |
| Safety Performance | Dual door lock (electronic magnetic), Over-speed detection, Over-temperature detection, Automatic internal diagnosis system |
| Other Functions / Advanced Features | DLAB D1524R High Speed Refrigerated Centrifuge USA |
