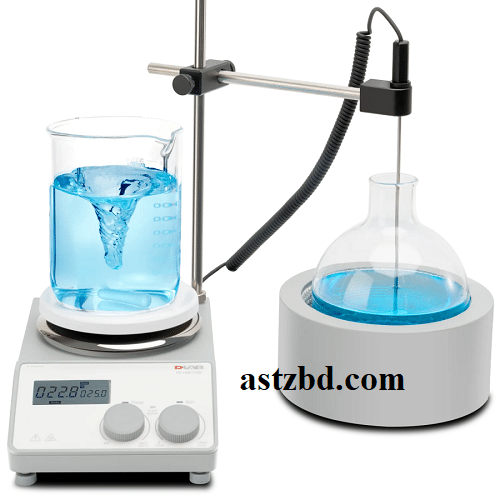

Dlab MS-H280-F500 LCD Digital Magnetic Stirrer
| Description | Specification / Details |
|---|---|
| Model / Common Name | MS-H280-F500 (LCD Digital Magnetic Hotplate Stirrer) |
| Max. Stirring Quantity (H₂O) | 3 L |
| Speed Range | 200 – 1500 rpm |
| Speed Display | LCD |
| Speed Setting Resolution | 1 rpm |
| Speed Accuracy | ±10 rpm |
| Heating Temperature Range | Room temperature +5 °C to 500 °C |
| Temperature Control Accuracy | ±1 °C (plate sensor) ±0.2 °C (with external PT1000 probe) |
| Temperature Display | LCD |
| Temperature Setting Resolution | 1 °C |
| Heating Power | 1000–1100 W |
| Work Plate Dimension | Ø 135 mm (≈5.3 inch round plate) |
| Work Plate Material | Glass ceramic (excellent chemical resistance, high temperature tolerance, very easy to clean) |
| Max. Recommended Stir Bar Length | 50 mm (optimal performance 30–40 mm) |
| Motor Type | Brushless DC motor (quiet, maintenance-free, long lifespan) |
| External Temperature Sensor | PT1000 (optional – not included in base unit) |
| Timer Function | Yes |
| Time Setting Range | 1 min – 99 h 59 min (or continuous) |
| Voltage / Frequency | 100–240 V, 50/60 Hz (universal power supply) |
| Total Power Consumption | ≈1100–1150 W |
| Dimensions (W × D × H) | ≈160 × 280 × 100 mm |
| Weight | ≈3.2–3.5 kg |
| Permissible Ambient Temperature | 5–40 °C |
| Permissible Ambient Humidity | ≤80% RH |
| Protection Class | IP21 |
| Safety Features | Overheat protection Separate safety cut-off circuit “HOT” surface warning light (remains on after power off) Over-current protection Boil-dry protection Dlab MS-H280-F500 LCD Digital Magnetic Stirrer |
