Description

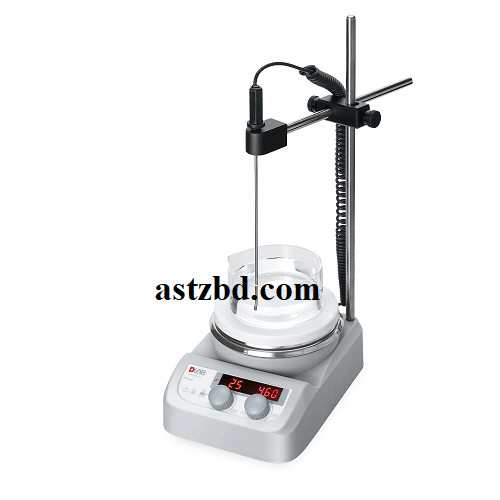

Dlab MS-H280-Pro LED Digital Magnetic Hotplate Stirrer
| Description | Specification / Details |
|---|---|
| Model / Cat.No. | MS-H280-Pro / 8030010111 (or very close variant) |
| Max. Stirring Quantity (H₂O) | 3 L |
| Speed Range | 200 – 1500 rpm |
| Speed Display | LED |
| Speed Control Accuracy | ±10 rpm |
| Heating Temperature Range | Room temperature +5 °C to 280 °C |
| Temperature Control Accuracy | ±1 °C (plate sensor) ±0.2 °C (with external PT1000 probe) |
| Temperature Display | LED |
| Temperature Setting Resolution | 1 °C |
| Heating Power | 600 W |
| Work Plate Dimension | Ø 135 mm (≈5.3 inch round plate) |
| Work Plate Material | Ceramic-coated aluminum (very good chemical resistance & heat conductivity) |
| Max. Recommended Stir Bar Length | 50 mm (optimal 30–40 mm) |
| Motor Type | Brushless DC motor (quiet, maintenance-free, long life) |
| External Temperature Sensor | PT1000 (optional – not included in base unit) |
| Timer Function | Yes (built-in timer) |
| Time Setting Range | Usually 1–999 min |
| Voltage / Frequency | 100–240 V, 50/60 Hz (universal power supply) |
| Total Power Consumption | ≈610–650 W |
| Dimensions (W × D × H) | 160 × 280 × 85 mm (compact footprint) |
| Weight | ≈2.8–3.0 kg |
| Permissible Ambient Temperature | 5–40 °C |
| Permissible Ambient Humidity | ≤80% RH |
| Protection Class | IP21 |
| Safety Features | Overheat protection, separate safety cut-off circuit, “HOT” surface warning light (remains on after power off), over-current protection, boil-dry protection (in most listings) Dlab MS-H280-Pro LED Digital Magnetic Hotplate Stirrer |
