Description
Features
- Independent heating and stirring control for each position.
- LCD Display shows real-time temperature and speed.
- PID controller ensure a precise and steady heating process. (Maximum temperature up to 340°C)
- Brushless DC motor is quiet reliable and maintenance free, and provides more powerful speed and control.
- External temperature sensor (PT1000) with accuracy 0.2°C.
- Brushless DC motor enables more powerful speed control.
- Overheating protection temperature at 420°C.
- Stainless steel work plate with ceramic coating provides good chemical resistance

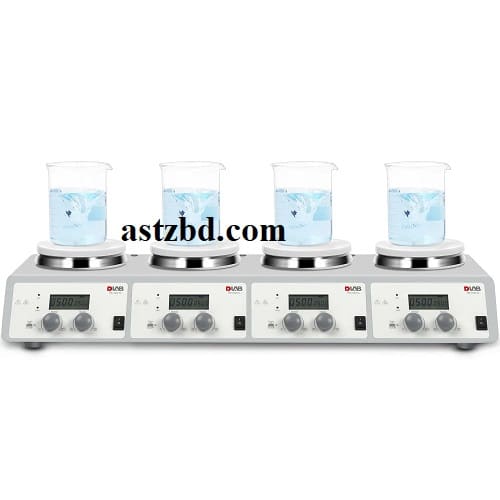

| Model | MS-H340-S4 |
| Plate dimension | Φ135mm（5inch) |
| Plate material | Stainless steel with ceramic coating |
| Motor Type | Brushless DC Motor |
| Motor rating input | 1.8W×4 |
| Power | 515W×4 |
| Heating power | 500W×4 |
| Voltage | 100-120V,60Hz; 200-240V,50 Hz |
| Stirring positions | 4 |
| Max. stirring quantity of single position (H2O) | 10L |
| Max. magnetic bar | 40mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Control accuracy of sensor[rpm] | ±20 |
| Temperature range | 25-340℃ |
| Over temperature protection | 420℃ |
| Temperature display accuracy | ±0.1°C |
| External temp. sensor | PT1000（Accuracy±0.2℃） |
| IP Protection class | IP21 |
| Dimensions[WxDxH] | 698×270×128mm |
| Weight | 9.5kg |
| Permissible ambient temperature | 5～40°C |
| Permissible relative humidity | 80%RH |
