Description

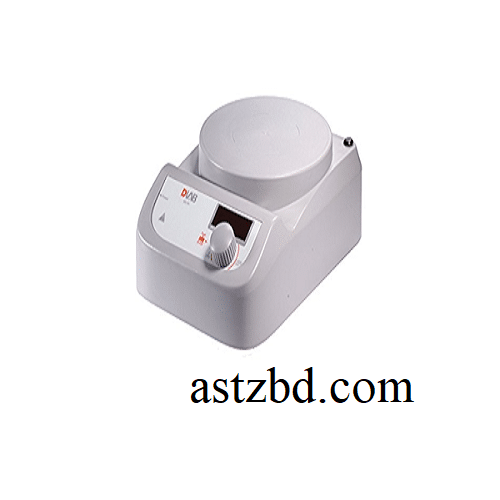

- Dlab MS-PA LED Digital Magnetic Stirrer
- Digital speed control within the range of 0-1500rpm
- Maximum stirring quantity of H2O at 3L
- LED display shows stirring speed
| Description | Specification / Details |
|---|---|
| Model / Cat.No. | MS-PA (LED Digital Magnetic Stirrer) |
| Max. Stirring Quantity (H₂O) | 3 L |
| Speed Range | 200–1500 rpm (some listings show 100–1500 rpm) |
| Speed Display | LED (shows set speed) |
| Speed Setting | Digital / stepless adjustment via knob |
| Speed Accuracy | ±10 rpm |
| Motor Type | Brushless DC motor (maintenance-free, quiet, long lifespan) |
| Work Plate Diameter | Ø 135 mm (≈5.3 inch round plate) |
| Work Plate Material | Nylon + GF (glass fiber reinforced) – good chemical resistance and durability |
| Max. Recommended Stir Bar Length | 50 mm |
| Motor Input Power | 5 W |
| Motor Output Power | 3 W |
| Total Power Consumption | ≈15 W (very low power draw) |
| Voltage / Frequency | 100–240 V, 50/60 Hz (universal power supply) |
| Dimensions (W × D × H) | 150 × 260 × 80 mm |
| Weight | ≈1.8 kg |
| Permissible Ambient Temperature | 5–40 °C |
| Permissible Ambient Humidity | ≤80% RH |
| Protection Class | IP42 (better splash protection than many IP21 models) |
| Safety Features | Over-current protection, overload protection, stable low-speed operation |
| Advanced Features | LED digital speed display, brushless DC motor, compact & lightweight design, chemical-resistant plate, very quiet & low vibration, simple one-knob operation, excellent price-to-performance ratio Dlab MS-PA LED Digital Magnetic Stirrer |
