Description

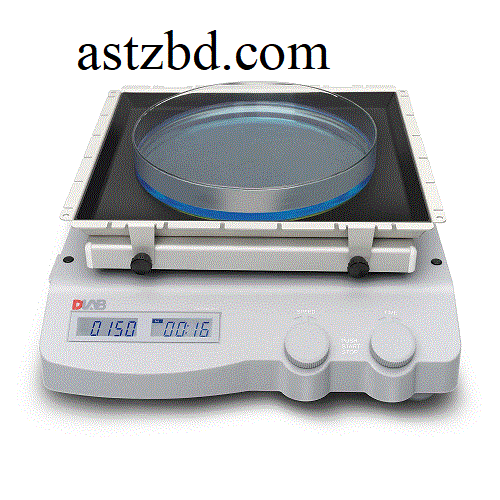

SK-O180-Pro Multifunctional Orbital Decolorizing Shaker

• Independent LCD display for speed and time

• Compact footprint

•  Provides smooth and uniform shaking

•  2.5kg with platform speed range  100-800 rpm

•  Continuous or timer operation mode

• Maintenance- free brushless DC motor

• Over speed detection and protection

• Wide range of optional platform for flasks, and other popular vessels

•  Remote function provides PC control and data transmission

•  Free software for PC control & data logging

Parameter	Specification / Value
Cat.No.	8032210100
Motion type	Orbital Shaker
Amplitude	4 mm
Tilt angle	–
Speed range	100 – 800 rpm
Speed display	LCD
Timer display	LCD
Time settings range	1 min – 19 h 59 min
Data connector	RS232
Max. load capacity (with platform)	2.5 kg
Motor type	Brushless DC motor
Motor rating input	28 W
Motor rating output	15 W
Power	30 W
Voltage	100 – 240 V
Frequency	50 / 60 Hz
Dimension [W × D × H]	300 × 340 × 100 mm
Work plate Dimension [W × D]	250 × 245 mm
Weight	8.1 kg
Permissible ambient temperature	5 – 40 °C
Permissible ambient humidity	80% RH
Protection class	IP20 Multifunctional Orbital Decolorizing Shaker
