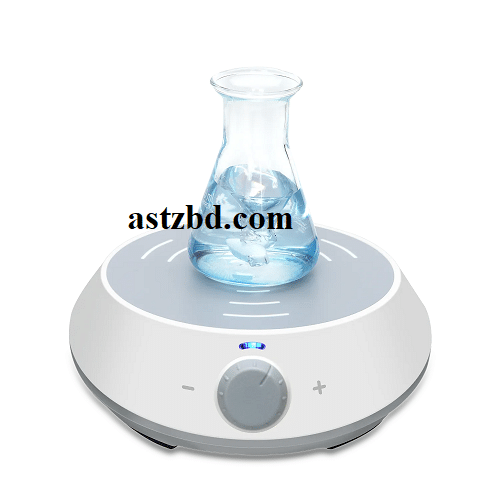

EcoStir Economical Magnetic Stirrer

Description

• EcoStir Economical Magnetic Stirrer
• Maintenance free brushless DC motor
• Rare earth magnets give powerful stirring
• Stepless speed regulation 300-2000rpm
• Ultra silence and vibration-free design
• PET top provides excellent chemical resistance
• Shaft can be fitted with a pH sensor or other sensors for different purposes

• Description	Specification / Details
  Model / Common Name	EcoStir (Economical Magnetic Stirrer)
  Typical Cat.No.	8030190000 (round plate version) or 8030197000 (square plate version with electrode holder)
  Max. Stirring Quantity (H₂O)	1.5 L
  Speed Range	300–2000 rpm
  Speed Control	Analog knob (stepless)
  Speed Display	Scale / no digital display
  Motor Type	Brushless DC motor (maintenance-free, extremely quiet)
  Work Plate Shape & Material	Round version: Circular PET plate Square version: Square PET plate (more stable for vessels)
  Work Plate Dimension	Round: ≈φ120 mm Square: ≈120 × 120 mm
  Max. Magnetic Bar Length	40 mm (recommended 20–30 mm for best performance)
  Power Consumption	≈7–8 W (extremely low power draw)
  Voltage / Frequency	100–240 V, 50/60 Hz (universal power supply)
  Dimensions (W × D × H)	≈150 × 145 × 50 mm (very compact)
  Weight	≈0.3 kg (ultra-lightweight)
  Permissible Ambient Temperature	5–40 °C
  Permissible Ambient Humidity	≤80% RH
  Protection Class	IP21
  Special Features (Square version)	Includes electrode holder + clamp (perfect for pH, ORP, conductivity measurements while stirring)
  Advanced Features (common)	Ultra-quiet & vibration-free operation; Brushless DC motor; Very low power consumption; Chemical-resistant PET plate; Compact design; Over-current protection; Extremely affordable entry-level stirrer EcoStir Economical Magnetic Stirrer
