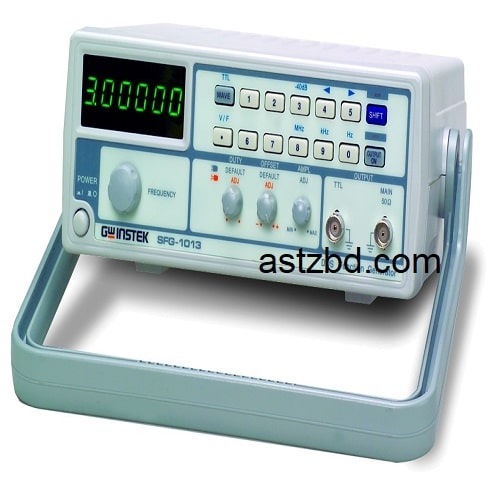

Description
Key Features:
- DDS Technique and FPGA Chip Design
- Frequency Range: 0.1Hz~3MHz
- High Frequency Accuracy: ± 20ppm
- High Frequency Stability: ± 20ppm
- Frequency Resolution: 100mHz
- Low Distortion Sine Wave: -55dBc,0.1Hz~200kHz
- Voltage Display: yes
SPECIFICAYIONS
| MAIN | Output Function
Frequency Range(For Sine, Square) Frequency Range(For Triangle) Resolution Stability Accuracy Aging Amplitude Range Amplitude Accuracy Impedance Attenuator DC Offset Duty Control Range
Display Output Control |
Sine, Square, Triangle, TTL
0.1Hz ~ 3MHz
z 0.1Hz ~ 1MHz 0.1Hz maximum 20ppm 20ppm 5ppm/year 10Vp-p (into 50 load) 20% at maximum position (only SFG-1013) 50+10% 40dB+1dB×1 <-5V ~> 5V (into 50 load) 25% ~ 75% below 1MHz (for square wave only) 6-digit LED display ON/OFF selector |
| SINE WAVE | Harmonics Distortion
Flatness (at maximum amplitude relative to 1kHz) |
From Amplitude control at maximum position without any attenuation to
its 1/10 of any combination setting, TTL OFF >-55dBc, 0.1Hz ~ 200kHz >-40dBc, 0.2MHz ~ 2MHz >-35dBc, 2MHz 3MHz <+0.3dB, 0.1Hz 1MHz ~ <+0.5dB, 1MHz 2MHz ~ <+1dB, 2MHz 3MHz |
| TRIANGLE WAVE | Linear | _>98 , 0.1Hz to 100kHz ; 95 , 100kHz to 1MHz |
| SQUARE WAVE | Symmetry | 5% of period 4ns ~ 0.1Hz ~ 100kHz |
| TTL OUTPUT | Rise or Fall Time
Level Fan Out Rise or Fall Time |
_<100ns at maximum output. (into 50 load)
_>3Vp-p 20 TTL load _<25ns |
| GENERAL | Power Source
Operation Environment |
AC 240V,220V,110V 10%, 50/60Hz
Indoor use, altitude up ~ 2000m Ambient Temperature 0 ~ 40 C Relative Humidity: Up to 80% at 0 ~ 40 C Up to 70% at 35 ~ 40 Installation category II Pollution Degree 2 |
| STORAGE TEMPERATURE | E Humidity | -10 ~ 70C , 70% (Maximum). |
| ACCESSORIES | GTL-101 1, User manual 1, Power cord | |
| DIMENSION & WEIGHT | 251(W) x 91(H) x 291(D) m/m, Approx. 2.1kg | |
