Description
- Standard: 1260°C (2300°F)
- High-Purity (HP): 1260°C
- Zirconia Grade (HZ): 1430°C (2600°F) (Continuous use temperature is approx. 100–150°C lower than classification temp)
Common Sizes Available:

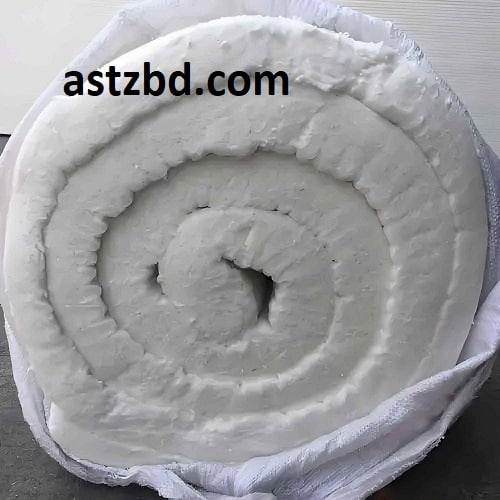

High Temperature Ceramic Fiber Blank
- Thickness: 13 mm (1/2″), 25 mm (1″), 50 mm (2″)
- Width: 610 mm (24 inches)
- Length per roll: 3.6 m, 7.2 m, 14.4 m (12 ft, 24 ft, 48 ft)
- Density: 96 kg/m³, 128 kg/m³ (most popular), 160 kg/m³
Key Technical Specifications:
- Thermal Conductivity: 0.09–0.20 W/m·K (depending on temperature)
- Low Heat Storage & Excellent Thermal Shock Resistance
- Lightweight & Flexible – Easy to cut, wrap, and install
- Chemical Stability: Resistant to most acids & alkalis (except hydrofluoric & phosphoric acid)
- Asbestos-Free & No harmful off-gassing when first heated
- Excellent sound absorption properties
Applications:
- Kiln, furnace, forge, and pizza oven insulation
- Foundry & heat-treatment equipment lining
- Boiler & turbine insulation
- Fire protection & passive fireproofing
- High-temperature gasketing & sealing
- Superior heat resistance up to 3000°F (1649°C) depending on grade.
- Low thermal conductivity for energy savings (up to 20% better than some alternatives).
- Excellent thermal shock resistance – no cracking during rapid heating/cooling.
- Low heat storage and lightweight design for quick installation and reduced structural load.
- Chemical resistance to most acids/alkalis (except strong ones like HF).
- Completely inorganic – no fumes or smoke when first heated.
