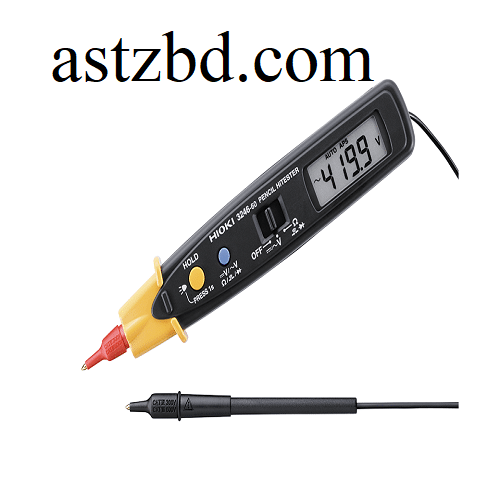

Description
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. | |||||
|---|---|---|---|---|---|---|
| AC Voltage range | 4.199 V to 600 V, 4 ranges, Basic accuracy 50 – 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified) | |||||
| Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. | |||||
| Continuity buzzer | Detection level 50 Ω ±40 Ω | |||||
| Diode check | Judges the right direction only, Open terminal voltage: 3.4 V or less, Testing current: 800 µA or less | |||||
| Auto power save | Available (cancel selectable) | |||||
| Display | Digital LCD, max. 4199 digits | |||||
| Sampling rate | 2.5 times/sec | |||||
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours (at DC V function), 30 hours (with light turned on for 10 seconds and off for 20 seconds per cycle and in DC V function) | |||||
| Dimensions and mass | 30 mm (1.18 in)W × 182 mm (7.17 in)H × 26.5 mm (1.04 in)D, 80 g (2.8 oz) | |||||
| Included accessories | Instruction manual ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1) | |||||
ADVANCE SCIENCE & TECHNOLOGY ZONE
1st floor shop #13 kader tropical
10 shaid nazrul islam road, hatkhola, tikatoly Dhaka-1203
E-mail: astzbd@gmail.com, Website: WWW.ASTZBD.COM
Cell: +88 01329100999
+88 01329100998
