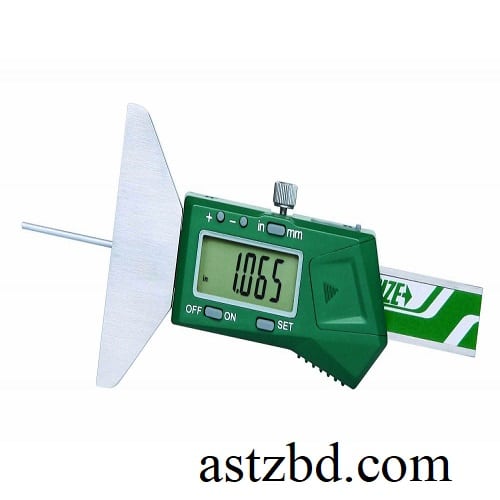

Insize (1140-25) 25mm/1″ Mini Digital Depth Gage with Round Bar

Description

The Insize 1140-25 25mm/1″ Mini Digital Depth Gage with Round Bar is a must-have compact measuring instrument for professionals and workshops needing accurate depth readings in confined or small areas. Manufactured by Insize (China), this model excels at measuring depths of small grooves, tight or small features where standard gauges can’t reach. This model features a thin round bar (Ø approx. 1.6mm) for accessing small grooves, holes, shoulders, and bores, with a wide stable base (approx. 65mm) for accuracy holes, slots, shoulders, inside bores, and even tire treads – scenarios where traditional depth gauges or calipers fall short due to size limitations

• Parameter	Specification
  Model	Insize 1140-25
  Measuring Range	0–25 mm / 0–1″
  Resolution	0.01 mm / 0.0005″
  Accuracy	±0.02 mm (or ±0.0008″ in some listings)
  Rod Type	Round bar (thin rod, approx. Ø 1.6 mm / 0.063″)
  Base Length	Approx. 65 mm / 2.56–2.6″ (stable wide base)
  Display	Large LCD
  Buttons/Functions	On/Off, Set (zero), Inch/mm, Preset (+/-)
  Power	CR2032 battery (included)
  Auto Power Off	Yes (with motion to wake)
  Data Output	Yes (SPC compatible)
  Material	Stainless steel rod/base
  Ingress Protection	Non-waterproof
  Weight	Approx. 0.315 kg (with battery)
  Country of Origin	China

• Measure Depth of Small Groove and Hole.
• Resolution: 0.01mm/0.0005”.
• Buttons: on/off, set, mm/inch, preset (+, -).
• Automatic Power off, move the digital unit to turn on power.
• Battery CR2032.
• Data Output.
• Made of stainless steel.
