Insize (1148-200) 200mm/8″Digital Depth Gage with Round Depth Bar

Description

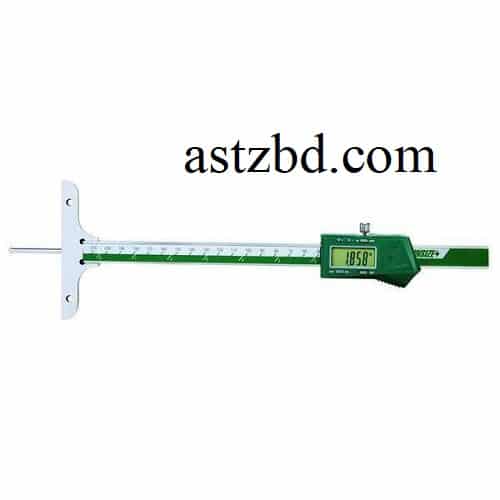

• The Insize (1148-200) 200mm/8″ Digital Depth Gage with Round Depth Bar (also listed as 1148-200E in some catalogs) is a professional electronic/digital depth gauge designed for precise measurement of hole depths, slot depths, step heights, and groove depths in machining, manufacturing, and quality control applications. It features a round depth bar (rod) with interchangeable points for versatile use on various surfaces.

  Key Specifications:

  • Model: 1148-200 (or 1148-200E)
  • Measuring Range: 0–200 mm / 0–8 inches
  • Resolution/Graduation: 0.01 mm / 0.0005 inches
  • Accuracy: ±0.03 mm (or ±0.0012 inches in some listings)
  • Base/Beam: Full base (approximately 3.976–4 inches / 101 mm wide) with mounting holes for optional extension base
  • Depth Bar: Round rod (interchangeable points: flat, spherical, disk/tip for small holes >Ø4mm)
  • Display: Large LCD screen with inch/mm conversion, data hold, preset (+/-), on/off, set buttons, and automatic power off
  • Material: Stainless steel construction for durability and corrosion resistance
  • Features:
    • Non-waterproof (standard digital model)
    • SPC data output capability (for connecting to printers or data collectors)
    • Battery-powered (CR2032, long life)
    • Move-to-turn-on functionality
    • Supplied with three interchangeable measuring points for flexibility (flat for general surfaces, spherical for curved bottoms, disk for small holes)
