Description

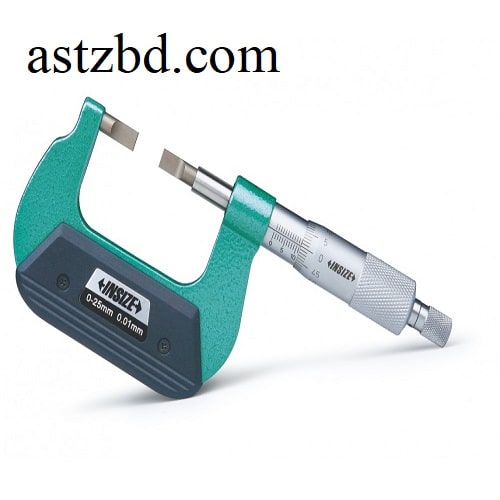

The Insize 3232-25A is a precision 0-25mm Blade Micrometer (Type A: blade anvil and blade spindle) from Insize, specifically designed for measuring groove diameters of shafts, keyways, narrow recesses, thin grooves, or hard-to-reach portions where standard flat anvils cannot make proper contact.
| Specification | Details |
| Measuring Range | 0–25 mm |
| Resolution / Graduation | 0.01 mm |
| Accuracy | ±4 μm (0.004 mm) |
| Parallelism | 5 μm |
| Blade Width (typical) | 6.5 mm |
| Blade Thickness | 0.75 mm |
| Length of Head (L) | 57 mm |
| Measuring Depth (b) | 32 mm |
| Thimble | Ratchet stop |
| Supplied | Without setting standard (for 0–25 mm range) |
