Description
-

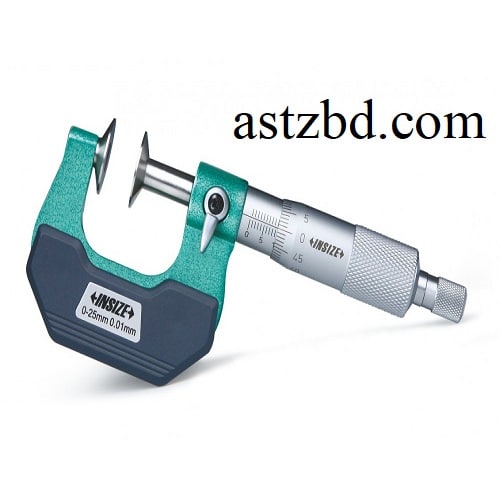

The Insize 3282-25 is a precision 25mm Disk Micrometer (disc anvil type) from Insize, specially designed for measuring the root tangent length of gears, thin materials like paper/foil/sheet metal, or other narrow/recessed surfaces where standard flat anvils cannot reach accurately. It features disc-shaped anvils (typically 20mm diameter, 3.3mm thickness) for excellent contact on curved or small-area surfaces
| Specification | Details |
| Measuring Range | 0–25 mm |
| Resolution / Graduation | 0.01 mm |
| Accuracy | ±4 μm (0.004 mm) |
| Parallelism | 5 μm |
| Disc Anvil Diameter | ~20 mm (typical for series) |
| Disc Thickness (c) | 3.3 mm |
| Length of Head (L) | 34 mm |
| Measuring Depth (b) | 24 mm |
| Thimble | Ratchet stop |
| Weight | Approx. 0.3–0.4 kg (lightweight for handheld use) |
