Description
-

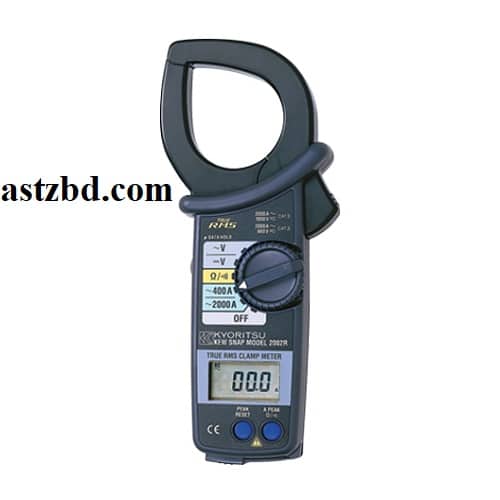

The Kyoritsu KEW 2002R AC Clamp Meter – a True RMS model from Japan designed for high-current measurements up to 2000A. Its large Ø55mm tear-drop shaped jaws clamp easily around thick cables or busbars KEW 2002R AC Clamp Meter (manufactured in Japan by Kyoritsu Electrical Instruments Works, Ltd.) is a high-end True RMS digital clamp meter built for demanding professional applications. With True RMS technology, it delivers precise AC current measurements up to 2000A even on irregular or harmonic-rich waveforms—making it superior to non-True RMS models like the 2002PA
- an measure large AC current up to 2000A
- Peak hold function
- φ55mm large tear drop shaped jaws
- Minimum resolution 0.1A
| AC A | 400A (0 – 400A) ±1.5%rdg±3dgt [45 – 65Hz] ±2.5%rdg±3dgt [40Hz – 1kHz]2000A (0 – 1500A) ±2%rdg±5dgt [45 – 65Hz] ±3%rdg±5dgt [40Hz – 1kHz]2000A (1500 – 2000A) ±4%rdg [50/60Hz] |
|---|---|
| AC V | 40/400/750V ±1%rdg±2dgt [45 – 65Hz] ±1.5%rdg±3dgt [40Hz – 1kHz] |
| DC V | 40/400/1000V ±1%rdg±2dgt |
| Ω | 400Ω/4/40/400kΩ ±1.5%rdg±2dgt |
| Continuity buzzer | Buzzer sounds below 50±35Ω |
| Conductor size | φ55mm max. |
| Frequency response | 40Hz – 1kHz |
| Output | Recorder : DC400mV against AC400A DC200mV against AC2000A |
| Safety Standard | IEC 61010-1 CAT III 600V / CAT II 1000V IEC 61010-2-031 IEC 61010-2-032 |
| Power source | R6 (AA) (1.5V) × 2 |
| Dimension | 247(L) × 105(W) × 49(D)mm |
| Weight | Approx. 470g |
| Accessories | 7107A (Test leads) 9094 (Carrying Case) R6 (AA) × 2 Instruction Manual |
| Optional Accessories | 7256 (Output cord) |
