Description
- LED display for precise monitoring of speed and temperature
- Speed range from 0-1500rpm
- Max. Heating Plate temperature at 550 degrees Celsius
Specification:

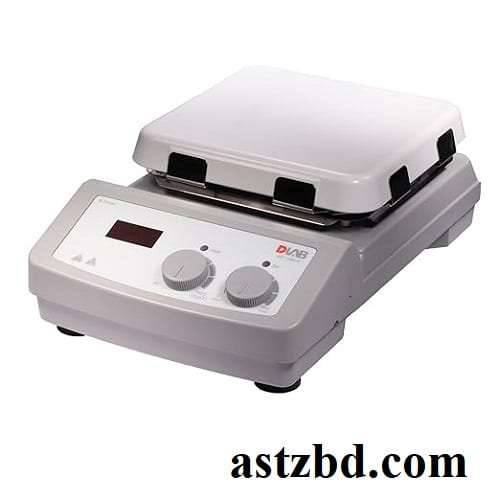

| Model: | MS7-H550-Pro |
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1050W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100-1500rpm |
| resolution ±1rpm | |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-550°C,increment 1°C |
| Temperature control accuracy | ±1 °C (<100°C) ±1%(>100°C) |
| Overheating protection | 580°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| Hot warning | 50°C |
| Data connector | RS232 |
| Protection class | IP21 |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 5.3kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
