Description

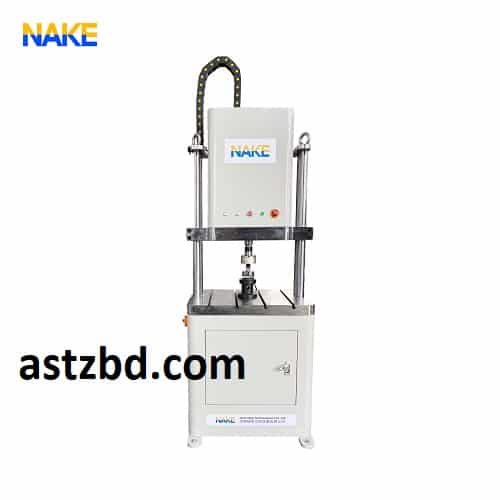

A precision electro-dynamic fatigue testing system designed for high-cycle fatigue life evaluation and static mechanical testing of materials and components.
| Ideal For |
|---|
| Springs (coil, leaf, disc) |
| Chains & wire ropes |
| Welded joints & pipes |
| Fasteners & connectors |
| Metallic & non-metallic specimens |
| Composite materials |
Trusted by:
- Universities & Research Institutes
- Aerospace & Defense
- Automotive & Rail
- Quality Inspection Bureaus
- Machinery Manufacturers
| Parameter | Specification |
|---|---|
| Model Variants | 10kN / 25kN / 50kN / 100kN / 200kN |
| Maximum Test Force | ±10 kN (dynamic & static) |
| Test Force Resolution | 0.01 kN |
| Measurement Range | 2% – 100% FS |
| Dynamic Force Fluctuation | ±1% FS |
| Static Force Accuracy | ±0.5% FS |
| Accuracy Grade | 0.5 (ISO 7500-1 Class 0.5) |
| Displacement Resolution | 0.001 mm |
| Stroke Amplitude | ±10 mm |
| Frequency Range | 0.1 – 30 Hz (amplitude-dependent) |
| Test Waveforms | Sine ● Triangle ● Square ● Custom |
| Test Space (L×W×H) | 300 × 500 × 500 mm (without fixtures) |
| Loading Method | Dynamic Electronic Load |
| Load Way | Electronic (Servo Actuator) |
| Component | Specification |
|---|---|
| Actuator | High-precision electric servo actuator |
| Motor | Siemens (or equivalent) AC servo motor |
| Drive | Siemens (or equivalent) servo controller |
| Force Sensor | High-accuracy interface load cell (±0.5% FS) |
| Parameter | Specification |
|---|---|
| Machine Dimensions (L×W×H) | 700 × 500 × 1700 mm |
| Weight | ~600 kg |
| Power Supply | AC 220V ±10%, 50/60 Hz, 4.0 kW |
| Transport Package | Non-solid wood crate (export-compliant) |
| Item | Qty |
|---|---|
| Main Testing Machine | 1 set |
| Siemens Servo Motor + Drive | 1 set |
| High-Precision Servo Actuator | 1 set |
| Interface Load Cell | 1 |
| Nake Precision Control System | 1 set |
| Nake Fatigue Test Software | 1 set |
| ASUS Commercial PC + Monitor | 1 set |
| HP Inkjet Printer | 1 |
| Fatigue Test Cables | 1 set |
| Test Tools & Fixtures (basic) | 1 set |
| Manuals, Certificates, Packing List | 1 each |
