Introduction Bitumen Extraction

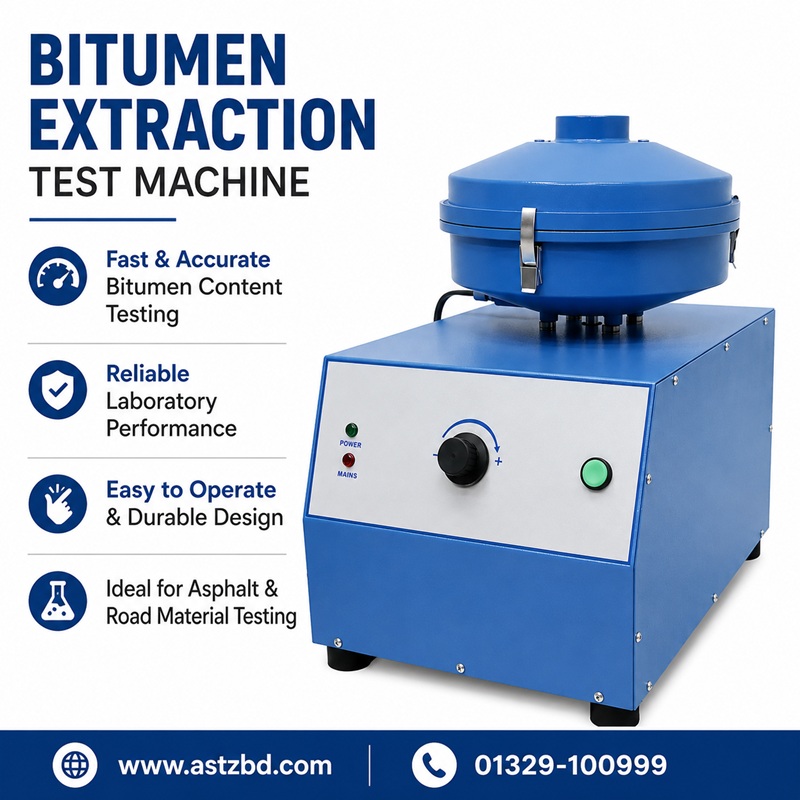

A Bitumen Extraction Apparatus determines the exact percentage of bitumen binder present in an asphalt paving mixture. Road construction laboratories rely on this centrifuge extractor to separate bitumen from aggregate through controlled spinning action and solvent washing. Engineers use the extracted data to verify mix design compliance before a contractor lays asphalt on site. This apparatus delivers fast, repeatable results.

Specifications Bitumen Extraction

Category	Specification
Product Name	Bitumen Extraction Apparatus
Type	Centrifuge Extractor
Standard Compliance	ASTM D2172, AASHTO T164, BS 598
Bowl Capacity	1500 g / 3000 g (Model Dependent)
Motor Power	0.5 HP – 1 HP
Rotation Mechanism	Direct-Drive Centrifugal Motor
Speed Range	0–3600 RPM (Variable Speed)
Speed Control	Stepless Variable Speed Dial
Construction Material	Stainless Steel Bowl & Casing
Bowl Material Grade	SS304 Stainless Steel
Sample Load Capacity	Up to 3000 g per Test Cycle
Compatible Solvents	Trichloroethylene, Benzene, Kerosene (As Per Laboratory Protocol)
Filter Paper	Standard Extraction Filter Ring Included
Timer Function	Adjustable Digital Timer (Selectable)
Power Supply	220–240V AC, 50Hz
Safety Features	Auto-Locking Lid, Vibration-Dampened Base
Electrical Protection	Overload Circuit Breaker
Noise Level	Below 65 dB During Operation
Ambient Operating Temperature	5°C to 40°C
Base Type	Anti-Vibration Rubber-Mounted Base
Dimensions	Approx. 500 × 500 × 600 mm
Weight	Approx. 35–45 kg (Model Dependent)
Warranty	1 Year (Manufacturer Standard)

Key Features

• Heavy-duty centrifuge bowl spins the asphalt sample at high RPM for complete bitumen separation
• Digital or analog speed controller regulates rotation for consistent, repeatable test results
• Stainless steel construction resists solvent corrosion and extends the machine’s service life
• Filter paper ring captures fine mineral particles and prevents them from escaping with the solvent
• Safety lid locks automatically during operation and protects the operator from solvent splashes
• Compact bench-top footprint fits easily into any material testing laboratory
• Low-noise motor operates smoothly across extended testing sessions
• Interchangeable bowl capacities accommodate different sample sizes for varied project needs



Applications Bitumen Extraction

• Highway and road construction quality control laboratories
• Asphalt plant production testing and mix verification
• University and research institute pavement engineering labs
• Government road authority inspection and compliance testing
• Private construction material testing companies
• Airport runway and pavement rehabilitation projects
• Bridge deck waterproofing material analysis



Who Uses This Bitumen Extraction

• Civil engineers who verify asphalt mix design specifications
• Highway authority inspectors who check bitumen content compliance
• Asphalt plant quality control technicians
• University researchers studying pavement material behavior
• Construction material testing laboratory staff
• Government infrastructure project consultants
• Private road contractors who self-certify mix quality before laying asphalt

Frequently Asked Questions (FAQ)

Q1: What does a Bitumen Extraction Apparatus measure?

It measures the percentage of bitumen binder present in an asphalt paving mixture sample.

Q2: Which testing standards does this apparatus follow?

The machine complies with ASTM D2172, AASHTO T164, and BS 598 testing methods.

Q3: What solvent works best with this extractor?

Trichloroethylene works well for most labs, though technicians also use benzene or kerosene depending on local safety regulations.

Q4: How much sample can the bowl hold?

Standard bowls hold between 1500 g and 3000 g, depending on the model.

Q5: Does ASTZ BD provide installation support?

Yes, our technical team assists with setup and calibration after delivery.

Q6: What warranty comes with this machine?

The apparatus carries a standard 1-year manufacturer warranty.

Q7: Is this apparatus suitable for small labs? Yes,

its compact bench-top design fits comfortably into small and mid-sized testing laboratories



Why Buy From ASTZ BD

• ASTZ BD supplies genuine, standard-compliant laboratory testing equipment to construction and engineering firms across Bangladesh.
• Every Bitumen Extraction Apparatus goes through a quality check before dispatch, so customers receive a machine that performs accurately from day one.
• Our technical team offers installation support and after-sales service, which saves laboratories from long equipment downtime. In addition, we maintain transparent pricing and fast delivery across Dhaka and other major districts.
• Therefore, engineers and lab managers choose ASTZ BD when they need dependable equipment backed by real local support.
