Description

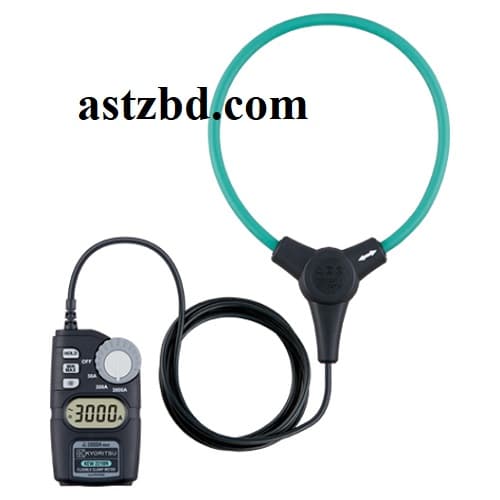

- Flexible and light weight clamp sensor
- Wide reading range up to 3000A
- True RMS
- MIN / MAX function
- Backlight LCD display
- IEC 61010-1 CAT Ⅳ 600V / CAT Ⅲ 1000V
- Minimum resolution 0.01A
| Range | 30.00/300.0/3000A | |
|---|---|---|
| Accuracy | ±3%rdg±5dgt[45-500Hz] (At the center of the circle formed by the flexible sensor) |
|
| Crest factor (CF) |
Full scale CF<1.6, half scale<3.2 Effective input crest values are √2 times of the max values of each range. |
|
| Conductor size | φ150mm max. | |
| Influence of Conductor position | Additional ±3% (max.) depending on the distance from the center position | |
| Overload protection | 5000A AC for 10 seconds | |
| Applicable standards | IEC 61010-1, IEC 61010-2-032 CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2 IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS) |
|
| Operating temperature and humidity range |
0 – +50℃,relative humidity 80% or less(no condensation) | |
| Storage temperature and humidity range |
-10 – +60℃,relative humidity 70% or less(no condensation) | |
| Power source | R03 / LR03(AAA)(1.5V)×2 ※Continuous measuring time：Approx.120hours (Auto power off：Approx.15 minutes) |
|
| Dimension | 120(L)×70(W)×26(D)：Display unit φ8.5mm approx.：Cable diameter 1.8m : Cable length |
|
| Weight | Approx. 300g (including batteries) | |
| Accessories | 9174 (Carrying case) LR03(AAA)×2, Insruction manual |
|
