Magna tal-Ittestjar tat-Tensjoni Idrawlika Orizzontali

  • Tat Tensjoni idrawlika
  • Brand: NAKE
  • Country of origin: China
Category: Tags: , , , , ,

Description

Product Description

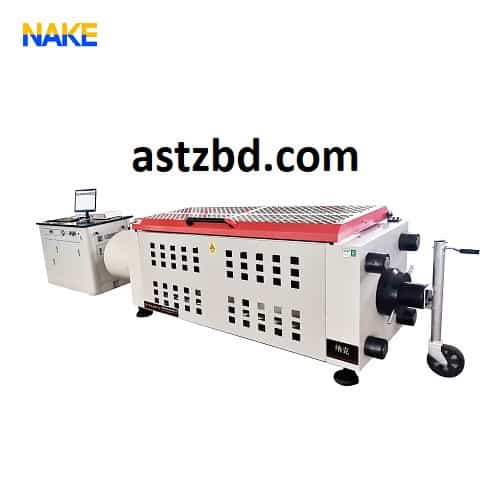

NAKE NRT-1000 – The world’s first fully automated rebar nut tightening & anchorage testing robot, engineered for steel reinforcement quality control in high-rise, bridge, and tunnel construction. Compliant with GB/T 14370, GB 50204, and JGJ 107 standards.

Key Features

  • 100% Automated Operation One-button start → 360° auto-rotation → Reach target torque → Auto-stop & record.
  • Dual-Mode Testing
    1. Nut Tightening – 200–1000 Nm
    2. Anchorage Pull-Out – Up to 500 kN (optional hydraulic module)
  • Smart Digital Workstation
    • 15″ Industrial Touchscreen PC
    • Real-time torque-angle curve
    • Auto-calculate tightening coefficient (K)
    • Thermal printer + USB export
  • Universal Rebar Compatibility
    • Ø16 – Ø40 mm HRB400/500 rebar
    • M20 – M39 mechanical couplers
    • Quick-change socket system
  • Precision Servo Drive
    • ±1% torque accuracy
    • ±0.5° angle precision
    • Zero backlash planetary gearbox
  • Safety & Compliance
    • Over-torque alarm & emergency stop
    • Anti-drop safety hook
    • CE & China National Type Test Certified

Applications

Project Type QC Requirement
High-Rise Buildings GB 50204 nut torque verification
Bridge & Viaduct JGJ 107 anchorage pull-out test
Tunnel & Metro Rebar coupler tightening audit
Nuclear & Hydropower 100% mechanical splice inspection
Third-Party Testing Labs Batch sampling & reporting

Technical Specifications

Parameter Specification
Model NAKE NRT-1000
Torque Range 200 – 1000 Nm
Angle Range 0 – 720°
Rebar Diameter Ø16 – Ø40 mm
Coupler Thread M20 – M39
Accuracy ±1% (torque), ±0.5° (angle)
Rotation Speed 5 – 30 RPM (adjustable)
Control System Industrial PC + PLC
Display 15″ touchscreen, live curve
Data Output USB, LAN, Thermal Print
Power Supply 380V AC, 3-phase
Optional Module 500 kN pull-out tester
Weight ~680 kg

Standard Inclusions

Item Qty
Main Robotic Tightening Unit 1 set
Industrial PC Workstation + Software 1 set
High-Precision Torque Sensor (1000 Nm) 1 unit
Angle Encoder 1 unit
Quick-Change Sockets (M20–M39) Full set
Thermal Printer + Paper Roll 1 set
Calibration Certificate (CNAS) 1 pc
User Manual + Test Templates 1 set
