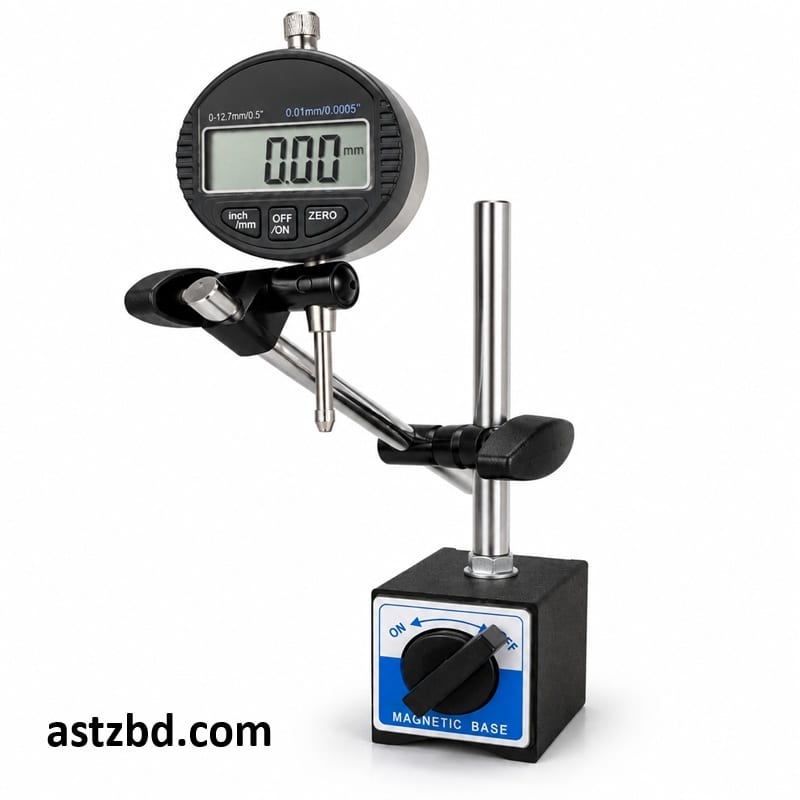

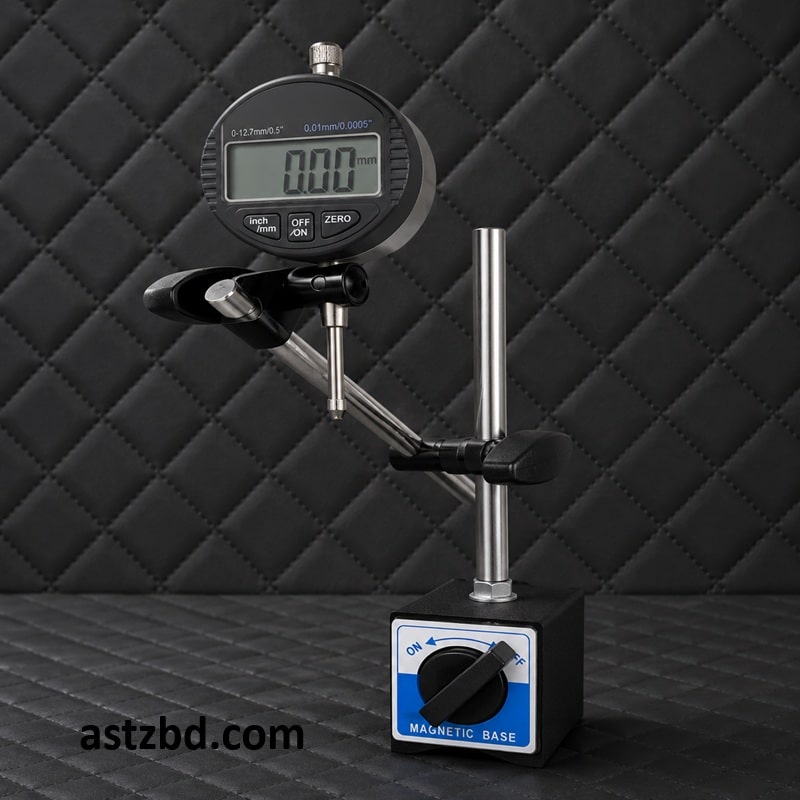

INTRODUCTION Magnetic Stand base with Digital indicator

The Magnetic Stand Base with Digital Indicator transforms precision measurement in Bangladesh’s workshops, factories, and quality labs. Traditional analog dial gauges require the user to read small graduation marks and estimate between them — a process that slows inspection and introduces reading errors. This complete set eliminates both problems. The digital indicator displays every measurement value as a clear numeral on a bright screen, so the operator reads the result instantly and without ambiguity. Meanwhile,

SPECIFICATIONS Magnetic Stand base with Digital indicator

Magnetic Base

Holding Force	60 KG (approximately 588 N)
Body Material	Heavy-duty cast iron
Arm Material	Chrome-plated alloy steel
Arm Type	Articulated fine-adjustment arm with locking knob
Magnetic Switch	ON/OFF rotary switch (tool-free operation)
Indicator Clamp	Universal – fits standard 8mm stem digital & dial indicators
Maximum Arm Reach	Approx. 300 mm (fully extended)
Fine Adjustment Range	±10 mm (micro-adjust screw)
Base Dimensions	Approx. 60 mm × 45 mm × 35 mm
Base Weight	Approx. 1.3 kg
Surface Finish	Black oxidized body with chrome-plated articulated arm
Compatible Surfaces	Flat ferromagnetic (carbon steel / cast iron) surfaces only



Digital Indicator

Indicator Type	Digital (electronic) indicator with LCD display
Measuring Range	0 – 12.7 mm (0 – 0.5 inch) / model-dependent
Resolution	0.001 mm (1 micron) / 0.0001 inch
Accuracy	±0.003 mm (per standard tolerance)
Display Type	Large LCD digital display
Stem Diameter	8 mm (standard universal fit)
Probe / Contact Point	Hardened steel, carbide-tipped (replaceable)
Zero Reset	ABS / INC zero-set button for instant reference zeroing
Unit Toggle	mm / inch switchable via front panel button
Direction Indicator	Arrow shows probe travel direction (up/down)
Power Source	SR44 / LR44 button cell battery (included)
Battery Life	Approx. 3,500 hours continuous use
Auto Power Off	Yes – activates after approx. 5 minutes of inactivity
Data Output	SPC / digimatic output port (model-dependent)
Housing Material	Chrome-plated steel body with ABS display panel
IP Protection	Splash-resistant (not fully waterproof)
Compatible Standards	JIS B 7503 / DIN 878 equivalent



Set & Packaging

Set Contents	1 × Magnetic Base (60KG), 1 × Digital Indicator, 1 × Battery
Total Set Weight	Approx. 1.6 kg
Packaging	Protective foam-lined carry case / branded box
Warranty	1 Year (manufacturer defects on both components)
Application	Workshop, tool room, quality lab, metrology, automobile



WHO USES THIS Magnetic Stand base with Digital indicator

• CNC machinists who need fast, clear digital readout for machine setup and runout verification
• Quality control engineers who perform surface measurement, flatness, and parallelism inspection
• Tool room technicians who set up fixtures and jigs with digital precision
• Metrology and calibration lab professionals who require stable, error-free digital measurement
• Industrial maintenance engineers who check shaft alignment and bearing wear with digital readout
• Automobile workshop technicians who measure brake disc runout and engine component tolerances
• Engineering students and trainers who learn or teach modern digital precision measurement techniques

KEY FEATURES Magnetic Stand base with Digital indicator

• Complete ready-to-use set – magnetic stand and digital indicator ship together with no additional parts needed
• Digital display – shows measurement values as clear numerals, eliminating analog scale reading errors
• 60KG magnetic holding force – the cast-iron base grips ferromagnetic surfaces firmly with zero slippage
• Zero-reset button – sets the reference point instantly with a single press for comparative measurement
• mm/inch toggle – switches between metric and imperial units to suit any measurement standard
• Fine-adjustment arm – moves the digital indicator to the exact probe contact point with micro-level control
• ON/OFF magnetic switch – activates or releases the base instantly with a single twist
• Heavy cast-iron base body – absorbs machine vibration and maintains stability throughout measurement
• Hardened steel probe tip – resists wear and preserves measurement accuracy over long service life
• Data output port (model-dependent) – connects to a computer or SPC system for recording and analysis



APPLICATIONS Magnetic Stand base with Digital indicator

• Runout measurement on CNC lathes, turning centers, and milling machines
• Surface flatness and parallelism verification on machine tables and surface plates
• Shaft concentricity and alignment checks in motor, pump, and gearbox assemblies
• Bore alignment and concentricity testing in precision machined components
• Height comparison and step measurement between reference surfaces and workpieces
• Fixture and jig alignment confirmation before production runs
• Grinding wheel dressing position control on surface and cylindrical grinders
• Brake disc, flywheel, and hub runout measurement in automobile workshops
• Quality inspection of turned, milled, ground, and fabricated components
• Calibration reference verification in metrology and inspection laboratories

FREQUENTLY ASKED QUESTIONS Magnetic Stand base with Digital indicator

Q: What is the difference between a digital indicator and an analog dial gauge?

A: An analog dial gauge uses a rotating pointer and graduation marks that the user reads visually. A digital indicator shows the measurement value as a number on an LCD screen. The digital display eliminates parallax reading errors and speeds up the measurement process, especially during repeated or high-volume inspection tasks.

Q: What resolution does the digital indicator in this set provide?

A: The digital indicator reads to 0.001mm (1 micron) resolution. This means the display updates in 0.001mm steps, giving you fine measurement detail suitable for precision machining, quality inspection, and calibration work.

Q: Does the 60KG magnetic base work on stainless steel or aluminum surfaces?

A: No. The magnetic base only grips ferromagnetic surfaces such as carbon steel and cast iron. Stainless steel, aluminum, brass, and non-metallic surfaces do not attract the magnet, so the base does not hold on those materials Magnetic Stand base with Digital indicator.

Q: How do I zero the digital indicator before measurement?

A: Place the probe tip on the reference surface, then press the zero or ABS/INC button on the digital indicator front panel. The display resets to 0.000 mm, and all subsequent readings show deviation from that zero reference point.

Q: Can I switch the digital indicator between mm and inch units?

A: Yes. The digital indicator has a unit toggle button on the front panel. Press it to switch between millimeter and inch display. This makes the set compatible with both metric and imperial engineering drawings Magnetic Stand base with Digital indicator

Q: Does this set include a battery for the digital indicator?

A: Yes. Astzbd supplies the set with a battery included so the digital indicator operates immediately out of the box. The battery type is SR44 or LR44 button cell, which provides approximately 3,500 hours of continuous use Magnetic Stand base with Digital indicator

Q: Where can I buy the Magnetic Stand Base with Digital Indicator in Bangladesh?

A: You can buy the complete set from Astzbd, Bangladesh’s trusted precision tool supplier. Astzbd delivers nationwide with secure payment options including bKash, Nagad, and cash on delivery. Visit the Astzbd website or contact the team for current pricing and stock availability Magnetic Stand base with Digital indicator
