Description
Grade 0.5 accuracy (0.4%–100% FS, no gear shift)
- Japanese Panasonic / Mitsubishi servo motor
- Precision ball screw – zero backlash
- High-resolution load cell (1/500,000)
- Displacement resolution: 0.001 mm
- Speed range: 0.001–500 mm/min (stepless)
- Auto return & emergency stop
-

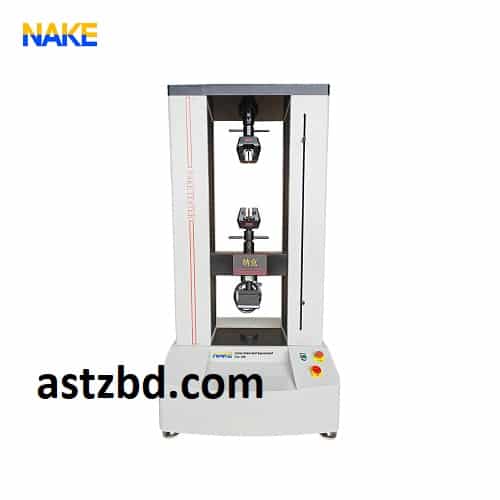

Bending Testing Machine
- Discover factory direct bending testing machines with computer control for precise three-point and four-point flexural tests on materials. User-friendly software ensures accurate results compliant with ASTM and ISO standards.” (159 characters)
- “Bending testing machine: Computer-controlled, user-friendly equipment for material flexural strength testing. Ideal for metals, plastics, and composites – factory direct pricing and high-precision features.” (158 characters)
- “Explore advanced computer-controlled bending testing machines for reliable three-point bend tests. User-friendly interface, real-time data, and versatile for lab or industrial use.” (152 characters)
| Model | WDW-10 | WDW-20 | WDW-30 | WDW-50 | WDW-100 | WDW-200 | WDW-300 |
|---|---|---|---|---|---|---|---|
| Max Force | 10 kN | 20 kN | 30 kN | 50 kN | 100 kN | 200 kN | 300 kN |
| Frame Type | Single-column | ← | ← | Dual-column | ← | ← | ← |
| Force Accuracy | ±0.5% | ← | ← | ← | ← | ← | ← |
| Force Resolution | 1/500,000 | ← | ← | ← | ← | ← | ← |
| Speed Range | 0.001–500 mm/min | ← | ← | ← | ← | ← | ← |
| Test Width | 400 mm | 400 mm | 400 mm | 450 mm | 450 mm | 550 mm | 600 mm |
| Tensile Space | 700 mm | 700 mm | 700 mm | 700 mm | 600 mm | 600 mm | 600 mm |
| Power | 0.4 kW | 0.4 kW | 0.75 kW | 1.0 kW | 1.5 kW | 2.0 kW | 3.0 kW |
| Weight | ~150 kg | ~180 kg | ~220 kg | ~350 kg | ~450 kg | ~800 kg | ~1000 kg |
- Mainframe (single/dual column)
- Panasonic servo motor + ball screw
- High-precision load cell
- Wedge grips (round + flat)
- Compression platens
- ASUS PC + monitor
- Full testing software (Win7/10/11)
- Calibration certificate & manual
