Description

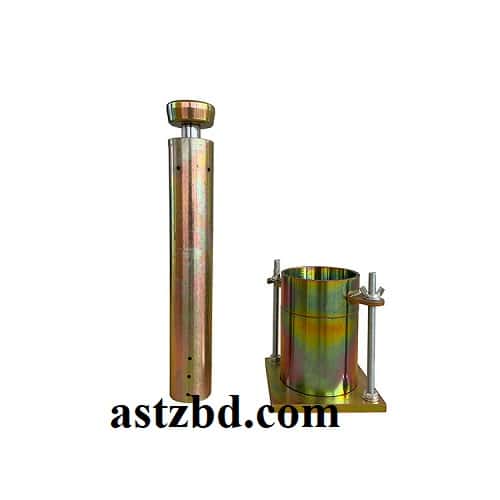

MDD moulds/Proctor Compaction Test Apparatus 6” Mould & Hammer 4.5 Kg Keyphrase in introduction & density: Start your page content with: “The modified proctor mould (6 inch diameter) with 4.5kg hammer is a precision laboratory apparatus for determining maximum dry density (MDD) and optimum moisture content (OMC) in soils using heavy compaction
Technical Parameter
| Standard | Hammer Type | Internal Dia(mm) | Body Height (mm) | Hammer Weight(kgs) | Drop (mm) |
| ASTM | Light | ∅101.6 | 116.4 | 2.5 | 305 |
| Heavy | ∅152.4 | 177.8 | 4.54 | 457 | |
| Hammer Type | Internal Dia(mm) | Body Height (mm) | Hammer Weight(kgs) | Drop (mm) | |
| BS | Light | ∅101.6 | 127 | 2.5 | 305 |
| Heavy | ∅152.4 | 127 | 4.54 | 457 | |
| Hammer Type | Internal Dia(mm) | Body Height (mm) | Hammer Weight(kgs) | Drop (mm) | |
| EN | Light | ∅100 | 127 | 2.5 | 300 |
| Heavy | ∅152 | 127 | 4.5 | 450 | |
| Hammer Type | Internal Dia(mm) | Body Height (mm) | Hammer Weight(kgs) | Drop (mm) | |
| GB | Light | ∅102 | 116 | 2.5 | 305 |
| Heavy | ∅152 | 116 | 4.5 | 457 |
![CALIFORNIA BEARING RATIO TEST, California Bearing Ratio (CBR), Laboratory California Bearing Ratio Test Apparatus, LABORATORY CBR APPARATUS, California Bearing Ratio [CBR] Test Machines, California Bearing Ratio CBR Test Apparatus, california Bearing Ratio Apparatus, CBR testing machine, California Bearing Ratio, CBR Test Apparatus, Cbr Test Machine, Laboratory CBR Test Apparatus, CBR Machine, Soil Lab Test Machine, Electric Cbr Test Machine, Electrical CBR Test Machine, CBR Testing Machine](https://astzbd.com/wp-content/uploads/2023/06/lab-cbr-test-apparatus-500x500-1-300x300.jpg)
