Description

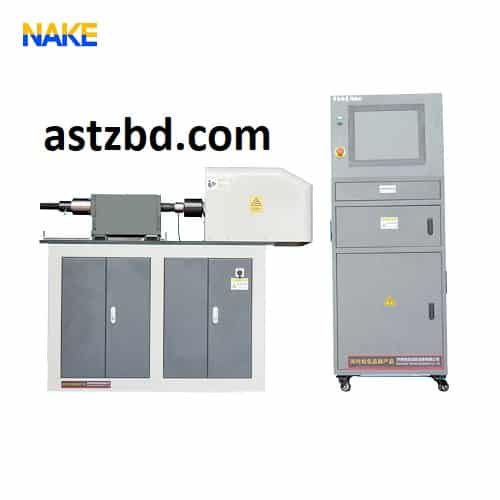

The YJZ-500D is a compact, computer-controlled friction and torque coefficient tester for high-strength hexagonal bolt assemblies (M16–M30). It precisely measures axial force, tightening torque, torque coefficient, friction coefficient, and rotation angle under dynamic loading.
After each test cycle, the system automatically calculates and prints:
- Average axial force / torque / torque coefficient
- Standard deviation (SD)
- Coefficient of variation (CV)
Ideal for wind turbine flanges, steel structures, and medium-scale fastener QC.
- EN 14399-2:2005 – Preload suitability test
- GB/T 16823.2-1997 – Threaded fastener tightening
- GB/T 50205-2000 / GB 50205-2020 – Steel structure quality
- NB/T 31082-2016 – Wind turbine tower bolting
- GB/T 3098.1-2010 – Fastener mechanical properties
- 3 Control Modes: Pre-set axial force, torque, or angle
- Multi-Stage Testing: Initial torque → 1st angle → 2nd angle
- Real-time data capture at every stage
- Auto statistical analysis (avg, SD, CV)
- Panasonic 4.0 kW servo system – smooth, energy-efficient
- Full M16–M30 tooling set included
- User-friendly software with data export & printing
| Parameter | Specification |
|---|---|
| Model | YJZ-500D |
| Type | Friction & Torque Coefficient Testing Machine |
| Bolt Specification | M16 – M30 (M10–M39 compatible) |
| Bolt Length | 50 – 500 mm |
| Max Axial Force | 500 kN |
| Max Torque | 5000 Nm |
| Max Capacity | <1000 kN |
| Output Speed | 0.1 – 4 r/min (stepless) |
| Accuracy Grade | ±1.0% (Force & Torque) |
| Load Way | Electronic Load |
| Loading Method | Dynamic Load |
| Display / Control | Digital + Full Computer Control |
| Motor Power | 4.0 kW (Panasonic Servo, Japan) |
| Power Source | Control: 220V AC Motor: 380V AC, 50Hz |
| Weight | 1000–2000 kg |
| Dimensions (approx.) | 2400 × 1000 × 1600 mm |
- Pre-set Axial Force
- Pre-set Torque
- Pre-set Rotation Angle
- Advanced Program: → Initial torque → 1st target angle → 2nd target angle (Records torque & axial force per stage)
| Item | Qty |
|---|---|
| Testing Host (with 1000 kN force & 5000 Nm torque sensors) | 1 unit |
| Panasonic 4.0 kW Servo Motor & Drive System | 1 set |
| Dedicated High-Strength Bolt Testing Controller | 1 set |
| ASUS Industrial PC + LCD Monitor | 1 set |
| Nut Sockets (M10–M39, 11 sizes) | 1 set |
| External Bolt Retaining Plates (M10–M39) | 1 set |
| Internal Bolt Retaining Plates (M10–M39) | 1 set |
