Description
Introduction

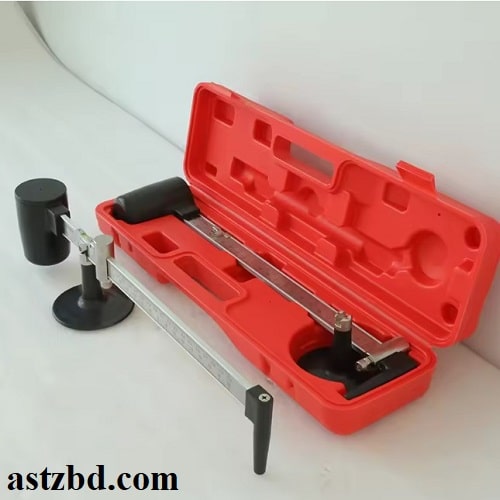

The density meter soil testing mud balance is an essential precision instrument designed for accurate measurement of drilling fluid density, cement slurry, and soil samples in various applications. This professional-grade meter soil testing equipment provides reliable measurements for construction, geotechnical engineering, oil and gas exploration, and environmental testing projects.
Specifications
| Specification | Details |
| Product Type | Density Meter Soil Testing Mud Balance |
| Measurement Range | 0.96 – 3.0 g/cm³ (8 – 25 ppg) |
| Accuracy | ±0.01 g/cm³ |
| Scale Units | g/cm³, lb/gal (ppg), specific gravity |
| Cup Capacity | 140 ml |
| Material | Stainless steel & aluminum alloy |
| Weight | 2.5 – 3.5 kg (approx.) |
| Dimensions | 380mm x 90mm x 50mm |
| Application | Drilling fluids, cement slurry, soil testing |
| Standards | API RP 13B-1, ISO 10414-1 |
| Components | Balance arm, mud cup with lid, rider, base |
| Calibration | Water & oil standard calibration |
| Operating Temp | 0°C to 50°C |
| Display Type | Graduated scale with sliding weight |
