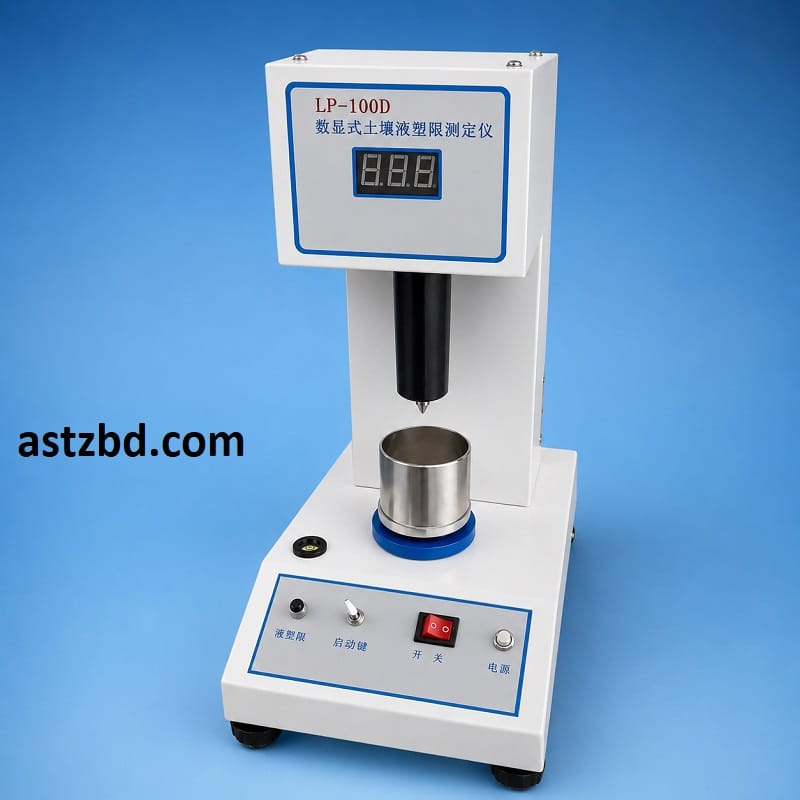

Electric Plastic Liquid Limit Test Cone Penetrometer

Description

Introduction Electric Plastic Liquid Limit Test Cone Penetrometer

The Electric Plastic Liquid Limit Test Cone Penetrometer represents a significant advancement in soil consistency measurement. Laboratories that perform Atterberg limit determinations depend on accurate data to classify fine-grained soils and make safe engineering decisions. Traditional manual methods introduce human error and slow down workflow. This electric cone penetrometer eliminates those problems by automating the penetration measurement and digitally recording depth readings in real time.

Specifications Electric Plastic Liquid Limit Test Cone Penetrometer

Parameter	Specification
Model	Electric Cone Penetrometer (Liquid Limit)
Standard Compliance	BS 1377 Part 2 / ASTM D4318
Cone Angle	30° ± 1°
Cone Mass	80 g ± 0.1 g
Cone Material	Stainless steel, polished finish
Penetration Range	0 – 47 mm
Display Resolution	0.01 mm
Measurement Accuracy	± 0.1 mm
Drop Duration	5 seconds (automatic, motorised)
Soil Cup Dimensions	Ø 55 mm × 40 mm depth (standard)
Power Supply	AC 220 V / 50 Hz (DC battery option)
Power Consumption	≤ 20 W
Base Material	Cast iron, powder-coated
Display Type	Digital LCD with backlight
Operating Temperature	5 °C – 40 °C
Relative Humidity	≤ 80 % RH (non-condensing)
Instrument Dimensions (approx.)	300 mm × 200 mm × 450 mm
Net Weight (approx.)	7 kg
Warranty	1 year (ASTZ BD service support)
Country of Origin	As per manufacturer certificate
Accessories Included	Stainless-steel cone, soil cup, power cable, grounding cone tool, user manual



Key Features Electric Plastic Liquid Limit Test Cone Penetrometer

• Digital LED/LCD display reads penetration depth to 0.01 mm resolution — eliminates manual gauge reading errors
• Electric motorised cone release — ensures consistent 5-second cone drop every test, removing operator variability
• 80 g stainless-steel 30° cone — machined to BS 1377 specification for internationally recognised results
• Automatic depth lock — freezes the digital readout the instant the cone stops, giving stable and repeatable readings
• Adjustable cone height — the screw-lift platform lets operators position the soil cup precisely without guesswork
• Compact, stable cast-iron base — resists vibration and keeps the instrument level during measurement
• Simple two-button operation — minimal training requirement suits technicians at all experience levels
• Dual power supply (AC mains and battery option) — supports both laboratory bench use and field site testing
• Corrosion-resistant stainless-steel contact parts — extends service life in humid tropical laboratory environments like Bangladesh Electric Plastic Liquid Limit Test Cone Penetrometer



Applications Electric Plastic Liquid Limit Test Cone Penetrometer

• Liquid limit determination of fine-grained cohesive soils (clay, silt, and silty clay)
• Atterberg limit testing for soil classification in geotechnical investigation reports
• Subgrade soil assessment for road, highway, and airport runway design
• Foundation soil evaluation for building, bridge, and embankment projects
• Quality control testing of soil fill materials on construction sites
• Slope stability analysis — understanding plasticity index from liquid and plastic limit data
• Compaction control — linking soil consistency limits to optimum moisture content
• Environmental site assessments — characterising contaminated or expansive soils
• Educational laboratory exercises for civil and geotechnical engineering students Electric Plastic Liquid Limit Test Cone Penetrometer



Frequently Asked Questions (FAQ) Electric Plastic Liquid Limit Test Cone Penetrometer

Q1: Does this cone penetrometer comply with BS 1377: Yes. The instrument uses an 80 g, 30° stainless-steel cone and a motorised 5-second drop — both requirements of BS 1377 Part 2. The digital display reads to 0.01 mm, which exceeds the standard resolution requirement.

Q2: Can I also determine the plastic limit with this machine: The machine measures the liquid limit directly. Engineers calculate the plastic limit separately using the thread-rolling method and derive the plasticity index from the difference. ASTZ BD supplies the thread-rolling accessories as an add-on if you need them. Electric Plastic Liquid Limit Test Cone Penetrometer

Q3: How do I calibrate the digital display; Turn the instrument on and lower the cone to touch the reference flat plate supplied in the accessory kit. Press the zero button on the control panel. The display resets to 0.00 mm. Repeat this step at the start of every testing session.

Q4: Does the machine work with Bangladesh power supply: Yes. The instrument operates on 220 V / 50 Hz, which matches the standard Bangladesh mains supply. A two-pin power cable comes in the box. The optional battery module supports field work away from a power outlet.

Q5: What is the warranty period: ASTZ BD provides a one-year warranty covering manufacturing defects. The warranty covers the electronic display unit, motorised release mechanism, and frame. Normal wear items such as the cone tip are consumables and are not covered under warranty.

Q6: How long does delivery take across Bangladesh: ASTZ BD dispatches in-stock units within 1–2 working days of order confirmation. Dhaka metro deliveries take 1 day; other districts take 2–4 days via courier. ASTZ BD messages the tracking number to your phone as soon as the courier collects the parcel. Electric Plastic Liquid Limit Test Cone Penetrometer



Who Uses This

1. Geotechnical engineers — to classify fine-grained soils and design safe foundations
2. Civil engineering firms — to evaluate subgrade soil consistency for road and highway projects
3. University and polytechnic laboratories — to teach ASTM D4318 and BS 1377 soil testing methods
4. Government testing bureaus (LGED, RHD, PWD) — to verify soil quality on public infrastructure projects
5. Construction material quality-control labs — to ensure soil fill materials meet specification limits
6. Environmental engineering consultants — to assess soil behaviour at remediation and landfill sites
7. Research institutes — to investigate soil plasticity parameters for academic and applied studies Electric Plastic Liquid Limit Test Cone Penetrometer



Why Buy from ASTZ BD

• Genuine instrument with manufacturer certificate — ASTZ BD imports directly and provides documentation you can present to project owners and auditors
• Nationwide delivery across Bangladesh — Dhaka, Chittagong, Sylhet, Rajshahi, Khulna, and all districts
• Pre-delivery inspection and calibration — every unit passes a functional check before ASTZ BD ships it to you
• Post-sale technical support in Bangla and English — our engineers answer your questions by phone, WhatsApp, and email
• Spare parts and consumables available — replacement cones, soil cups, and power adapters in stock at our Dhaka warehouse
• Competitive pricing with flexible payment — bank transfer, bKash, and Nagad accepted; bulk order discounts for institutions
• VAT invoice and warranty card — full documentation supports your procurement process and audit trail
• Training on request — ASTZ BD offers on-site operator training for university labs and engineering firms
