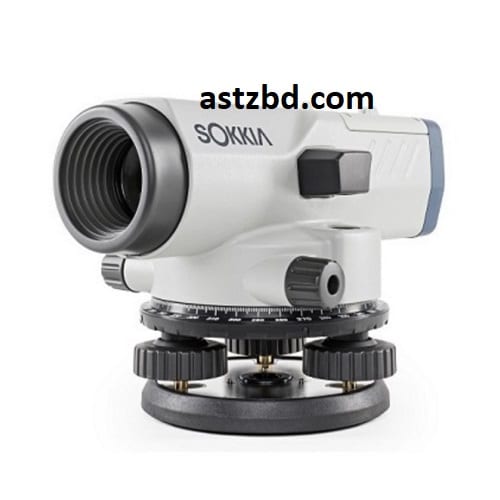

Introduction Sokkia B40 Auto level levelling machine full set

The Sokkia B40 Auto Level price in Bangladesh attracts engineers and surveyors who need professional accuracy at a practical cost. ASTZBD supplies this complete levelling machine full set with a standard tripod and 5-meter staff so buyers can start working immediately. Sokkia, a globally trusted Japanese brand, builds the B40 to withstand Bangladesh’s demanding field conditions, land development, road alignment, and infrastructure projects. Read on to discover every specification, feature, and application Sokkia B40 Auto level levelling machine full set Sokkia B40 Auto level levelling machine full set.

Specifications Sokkia B40 Auto level levelling machine full set

SOKKIA B40 AUTO LEVEL — COMPLETE SPECIFICATIONS
Brand	Sokkia (Japan)
Model	B40 / B40A
Magnification	24x
Objective Aperture	32 mm
Telescope Length	215 mm
Field of View	1° 25′ (at 100m: ~2.5m wide)
Minimum Focus Distance	0.2 m (20 cm)
Stadia Ratio / Additive Constant	100 / 0
Image	Erect
Reticle Pattern	Cross-line
Levelling Accuracy (Standard Deviation)	±1.5 mm/km (double-run)
Compensator Type	Magnetic damping, 4-wire suspension
Compensator Working Range	±15′
Compensator Setting Accuracy	0.3″
Circular Level Sensitivity	8′ / 2 mm
Horizontal Circle	360° graduation, least count 1°
Waterproof Rating	IPX6 (jet-water resistant)
Operating Temperature	-20°C to +50°C
Weight (instrument only)	Approx. 1.5 kg
Full Set Contents	Instrument, Standard Tripod, 5m Levelling Staff, Carrying Case
Country of Origin	Japan / China (Sokkia certified)
Warranty	As per ASTZBD policy



Key Features Sokkia B40 Auto level levelling machine full set

1. 24x Magnification — delivers sharp, bright images over long distances and reduces eye fatigue during extended fieldwork.
2. IPX6 All-Weather Protection — the sealed body resists powerful water jets from every direction, so the instrument survives Bangladesh’s monsoon season with zero downtime.
3. Ultra-Short 20 cm Minimum Focus — operators can sight targets as close as 20 cm, which proves invaluable in confined construction spaces.
4. 4-Wire Magnetic Damping Compensator — super-high-tensile suspension wires with minimal thermal expansion maintain accuracy even near heavy machinery or vibrating roadways.
5. ±1.5 mm/km Levelling Accuracy — meets the precision requirements of road construction, building foundation surveys, and infrastructure alignment.
6. ±15′ Compensator Working Range — the wide working range means faster setup on uneven ground.
7. 360° Horizontal Circle — supports quick layout and alignment tasks without additional instruments.
8. Durable Compact Body — the reinforced housing passes drop, rotation, and focus-knob durability tests in Sokkia’s factory certification programme.
9. -20°C to +50°C Operating Range — the B40 performs reliably in every season Bangladesh experiences.
10. Complete Full Set — tripod and levelling staff included, so buyers avoid extra procurement steps.

Applications Sokkia B40 Auto level levelling machine full set

• Building Construction — establishes and verifies floor levels, column heights, and formwork alignment across multi-storey structures.
• Road and Highway Alignment — checks longitudinal grades and cross-sections during earthworks and pavement laying.
• Land Surveying — supports cadastral surveys, boundary demarcation, and topographic mapping throughout Bangladesh.
• Bridge and Culvert Construction — monitors differential settlement and verifies deck-level tolerances during erection.
• Drainage and Irrigation Projects — aligns canals, drains, and embankments to designed fall gradients.
• Railway Track Alignment — verifies rail cant and longitudinal gradient for new and rehabilitated tracks.
• Utility Pipeline Laying — ensures gravity-fed water and sewer mains follow the correct slope.
• Industrial Plant Layout — sets machinery foundations and equipment pads to precise elevation Sokkia B40 Auto level levelling machine full set.
• Academic and Training Use — serves surveying departments in engineering universities and polytechnics across Bangladesh Sokkia B40 Auto level levelling machine full set.

Who Uses This

1. Civil Engineers working on building and infrastructure contracts in Bangladesh.
2. Licensed Land Surveyors conducting cadastral, topographic, and route surveys.
3. Construction Site Engineers monitoring floor levels and formwork during execution.
4. Government Survey Departments — RAJUK, PWD, Roads and Highways, LGED, and BWDB field teams.
5. Engineering Consultancy Firms that need a reliable backup or second instrument on large projects.
6. University Students and Lecturers in civil and geomatics engineering programmes.
7. Contractors and Builders who want an affordable, accurate tool without relying on hired surveyors.

Frequently Asked Questions (FAQ) Sokkia B40 Auto level levelling machine full set

Q: What does the Sokkia B40 Auto Level full set include?

A: The full set includes the Sokkia B40 Auto Level instrument, a standard aluminum tripod, a 5-metre telescopic levelling staff, and a protective carrying case.

Q: What is the accuracy of the Sokkia B40 Auto Level?

A: The Sokkia B40 Auto Level achieves a standard deviation of ±1.5 mm per kilometre of double-run levelling, meeting the requirements of most civil engineering projects in Bangladesh.

Q: Does the Sokkia B40 work in rainy weather?

A: Yes. The instrument carries an IPX6 waterproof rating, which means it resists powerful water jets from all directions. It handles Bangladesh’s monsoon season without damage.

Q: What is the minimum focus distance of the Sokkia B40?

A: The Sokkia B40 Auto Level focuses on objects as close as 20 cm (0.2 m) in front of the telescope, making it ideal for work in confined or congested spaces.

Q: How long does delivery take in Bangladesh?

A: Within Dhaka, ASTZBD delivers within 1–2 business days. Orders to other districts typically arrive within 2–5 business days via courier.

Q: Does ASTZBD provide a warranty for the Sokkia B40?

A: Yes. Every Sokkia B40 Auto Level sold by ASTZBD comes with a warranty as per official policy. Contact ASTZBD directly to confirm current warranty terms.

Q: Is the Sokkia B40 suitable for university lab use?

A: Absolutely. The B40 is a widely specified instrument in civil and geomatics engineering programmes and survives the repeated handling typical of student laboratory sessions Sokkia B40 Auto level levelling machine full set.

Why Buy From ASTZBD Sokkia B40 Auto level levelling machine full set

1. 100% Original Product — ASTZBD sources Sokkia instruments directly from authorised distributors, so buyers receive genuine equipment with full traceability.
2. Best Price Guarantee — the team matches or beats competitors’ prices on the Sokkia B40 Auto Level in Bangladesh.
3. Fast Nationwide Delivery — orders reach Dhaka within 1–2 business days and most other districts within 2–5 business days.
4. Expert After-Sales Support — trained technical staff assist with setup, calibration queries, and minor adjustments post-purchase.
5. Warranty Coverage — every Sokkia instrument sold through ASTZBD comes with documented warranty terms.
6. Complete Set Available — the full set (instrument + tripod + staff) eliminates the hassle of sourcing accessories separately.
7. Trusted Vendor — ASTZBD serves engineers, government departments, and academic institutions across Bangladesh with a strong reputation for reliability.
