Introduction Bipod for Prism Pole

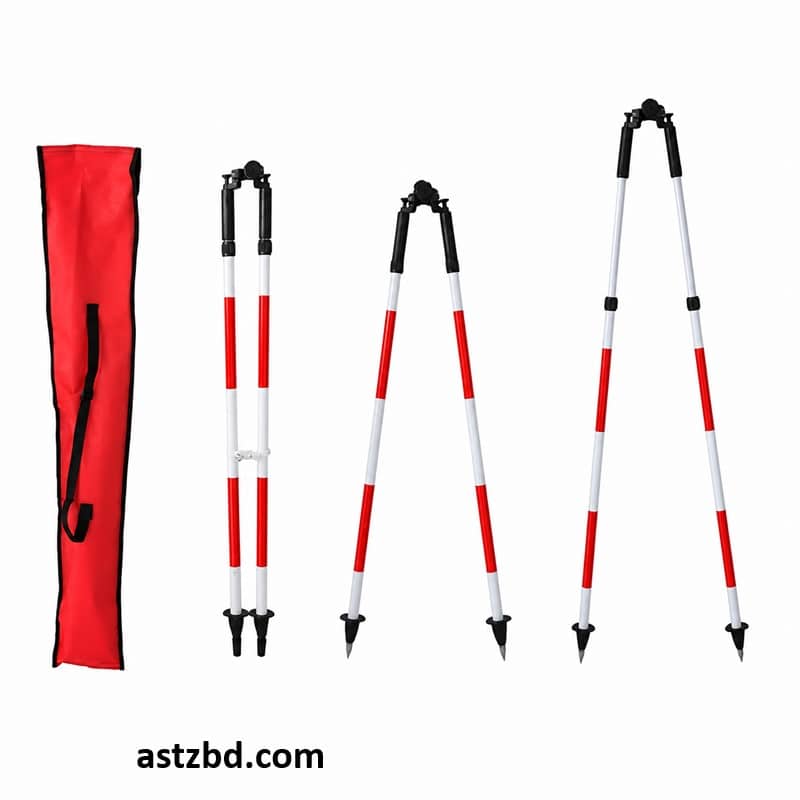

The bipod for prism pole solves one of the most common challenges in total station surveying — keeping the prism rod perfectly still without tying up a second person to hold it. ASTZBD delivers this practical accessory to surveyors, engineers, and field teams across Bangladesh who demand accurate and efficient measurement workflows. The two-legged clamp attaches directly to any standard prism pole shaft, spreads outward for firm ground contact, and locks the rod upright at the required height — all without tools. Solo surveyors especially appreciate this bipod because



Specifications Bipod for Prism Pole

Product Name	Bipod for Prism Pole
Bipod Body Material	Aluminum alloy with anodized anti-corrosion finish
Leg Material	Aluminum alloy legs with adjustable spread angle
Leg Tip	Replaceable rubber feet with embedded ground spike
Compatible Pole Diameter	25mm standard surveying prism pole
Clamp Type	Quick-release lever clamp — tool-free attachment and height adjustment
Clamp Position Range	Slides freely along entire pole shaft length
Leg Spread Angle	Adjustable, approx. 60°– 90° for terrain adaptation
Load Capacity	Up to 3kg (suitable for all standard prism assemblies)
Bipod Weight	Approx. 350g – 500g
Pole Compatibility	Fits all standard 25mm surveying prism poles — carbon fiber and aluminum
Surface Compatibility	Concrete, asphalt, soil, grass, and soft ground
Finish	Matte anodized yellow / black
Carry Method	Clips to pole for transport — no separate bag required
Warranty	1 Year (ASTZBD Bangladesh)



Key Features

Hands-Free Prism Stability

The bipod holds the prism pole upright at the target point without any human assistance, freeing the surveyor to operate the total station, record data, or communicate — all while the prism stays perfectly still.

Tool-Free Lever Clamp

The quick-release lever clamp attaches to the prism pole shaft instantly and slides to any height without tools, letting the operator set the bipod position in seconds and move on to the next survey station without delay.

Adjustable Leg Spread

The operator adjusts the bipod leg spread angle between approximately 60° and 90° to match the terrain — wider spread on soft ground for more stability, narrower spread on confined or sloped surfaces.

Dual Ground Contact Tips

Each bipod leg ends in a rubber foot with an embedded spike that grips on hard surfaces and penetrates soft ground, ensuring the prism rod stays in position on any surface type common across Bangladesh’s diverse survey sites.

Fits All 25mm Prism Poles

The bipod clamp fits the universal 25mm diameter prism pole standard, making it compatible with aluminum and carbon fiber poles from Leica, Topcon, Sokkia, South, Hi-Target, and other brands available in Bangladesh.

Clips to Pole for Easy Carry

The bipod clips directly onto the prism pole during transport between stations, adding minimal weight and requiring no separate bag — surveyors carry pole and bipod together as a single unit throughout the field day.



Applications

• Total Station Traverse Survey
• Construction Stakeout
• Boundary & Cadastral Survey
• Road & Highway Alignment
• As-Built Survey
• Topographic Data Collection
• Bridge & Structural Survey
• Utility & Pipeline Layout
• Solo Operator Surveying
• Urban & Rural Land Survey
• Monitoring Survey
• Student Field Training



Who Uses This

• Land Surveyors

Surveyors use the bipod for prism pole on traverse and detail surveys where a second rodman is unavailable, allowing solo fieldwork without sacrificing measurement accuracy or stability.

• Civil Engineers

Site engineers attach the bipod to their prism pole during construction stakeout and as-built check surveys, keeping the prism steady at each stake point while they operate the total station.

• Solo Survey Operators

Independent surveyors working alone on small projects depend on the bipod to hold the prism at the target so they can move back to the instrument and take readings without a helper.

• Government Field Teams

Survey of Bangladesh, LGED, PWD, and BWDB field teams use the bipod for prism pole to improve efficiency on multi-point daily survey schedules across urban and rural sites.

• Private Survey Firms

Survey companies handling residential layout, road design, and infrastructure projects across Bangladesh use this bipod to reduce crew size and lower project costs without affecting output quality.

• Engineering Students

Surveying and civil engineering students at BUET, CUET, and polytechnic institutes use the bipod for prism pole during fieldwork practicals to learn proper rod setup and instrument operation techniques.



Frequently Asked Questions

Q1. What is a bipod for prism pole and how does it work?

A bipod for prism pole is a two-legged clamp-on stand that attaches to a standard 25mm prism pole shaft and holds the rod upright at a survey point without any manual support. The operator clamps the bipod onto the pole at the desired height, spreads the two legs outward, presses the feet into the ground, and the rod stands independently. This setup allows the surveyor to step away from the prism pole and operate the total station or record data without the rod moving.

Q2. Does this bipod fit carbon fiber prism poles?

Yes. The bipod clamp fits both aluminum and carbon fiber prism poles with the standard 25mm outer diameter. The lever clamp grips the pole shaft firmly regardless of the pole material, making it compatible with all major prism pole brands — including Leica, Topcon, South, Hi-Target, and Sokkia poles available in Bangladesh.

Q3. Does the bipod work on soft or uneven ground?

Yes. Each leg tip combines a rubber foot for grip on hard surfaces with a ground spike for penetration into soft or muddy ground — both conditions common across Bangladesh’s field sites. On very uneven terrain, the operator adjusts the individual leg spread angles to compensate for slope, keeping the pole as vertical as possible before fine-tuning with the pole’s bubble level.

Q4. What warranty does ASTZBD offer on this product?

ASTZBD provides a 1-year local warranty on every bipod for prism pole. Customers report any defect directly to ASTZBD and receive service or replacement within Bangladesh — there is no requirement to send the product to an overseas service center or manufacturer.
