Introduction Digital Compression Testing Machine 2000KN

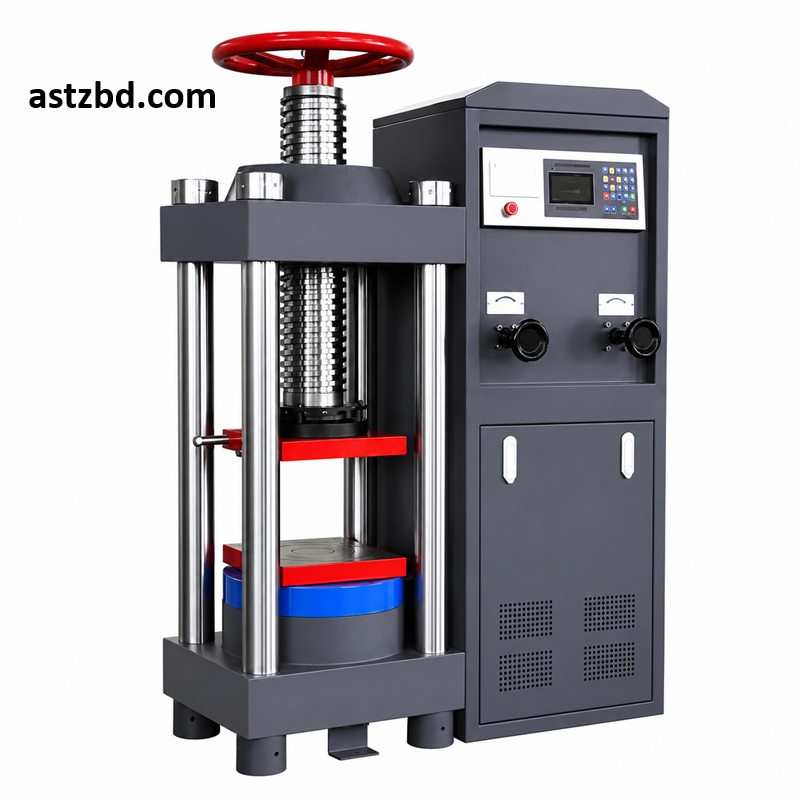

Concrete quality decisions depend on accurate strength data, and the Digital Compression Testing Machine 2000KN delivers that accuracy with ease. This heavy-duty press applies a controlled compressive load to concrete cubes, cylinders, and other construction materials until failure occurs. Consequently, engineers obtain reliable compressive strength values that confirm whether a concrete mix meets design requirements. The machine features a high-capacity load frame, a digital display, and an adjustable loading rate that suits multiple testing standards.

Specifications Digital Compression Testing Machine 2000KN

Parameter	Specification
Machine Type	Digital Compression Testing Machine
Load Capacity	2000 kN (200 tons)
Load Accuracy	±1% of the indicated load
Load Measurement	Digital load cell with LCD/LED display
Loading Rate	Adjustable, digitally controlled (typically 0.2–1.0 MPa/s)
Platen Size	300 mm x 300 mm (standard, model-dependent)
Specimen Size Range	100 mm, 150 mm, 200 mm cubes; standard cylinders
Frame Type	Four-column, heavy-duty steel frame
Hydraulic System	Motorized hydraulic power pack with pressure gauge backup
Data Output	USB/RS232 port for data logging (model-dependent)
Power Supply	415V, 50Hz, three-phase (model-dependent)
Dimensions (approx.)	700 mm (W) x 650 mm (D) x 1400 mm (H)
Weight (approx.)	800–1200 kg

Standards Compliance	ASTM C39, BS EN 12390-4, IS 516
Calibration	Factory calibrated with a calibration certificate
Warranty	1 year manufacturer warranty (parts)

Key Features Digital Compression Testing Machine 2000KN

• The machine applies compressive load to concrete specimens at a steady, controlled
• A digital indicator displays peak load and failure strength
• The 2000 kN capacity handles large cubes, cylinders, and high-strength concrete
• A four-column steel frame provides rigidity under maximum loading
• The loading rate adjusts to match different testing standards and specimen
• An auto-hold function locks the peak reading once the specimen
• The hydraulic system delivers smooth, vibration-free load
• The unit accommodates cube sizes of 100 mm, 150 mm, and 200 mm, along with standard



Applications Digital Compression Testing Machine 2000KN

• Construction material laboratories test concrete cube strength for project
• Ready-mix concrete (RMC) plants verify batch quality before delivery to
• Government infrastructure departments check compliance with national building
• Cement and brick manufacturers assess product strength during quality control
• University civil engineering departments train students on standard concrete testing
• Contractors confirm structural material strength before proceeding with construction



Who Uses This

• Civil Engineers – they confirm concrete strength before structural
• Construction Material Laboratories – they run routine compression tests for client
• RMC Plant Quality Teams – they monitor batch consistency across production
• Government Testing Authorities – they verify compliance with national construction
• Cement and Brick Manufacturers – they validate product strength during
• University Research Departments – they conduct academic studies on concrete



Frequently Asked Questions (FAQ)

Q1: What does the Digital Compression Testing Machine 2000KN test?

A: It tests the compressive strength of concrete cubes, cylinders, bricks, and similar construction materials.

Q2: Which specimen sizes fit this machine?

A: The standard configuration accepts 100 mm, 150 mm, and 200 mm cubes, along with standard concrete cylinders.

Q3: Does the machine include a calibration certificate?

A: Yes, ASTZBD ships every unit with a factory calibration certificate.

Q4: What power supply does this machine require?

A: Most 2000 kN models run on a 415V, three-phase supply, which matches industrial power connections common at labs and plants across Bangladesh.

Q5: Which testing standards does this machine follow?

A: The machine complies with ASTM C39, BS EN 12390-4, and IS 516 testing standards.

Q6: Does ASTZBD provide installation support?

A: Yes, our technical team handles installation, leveling, and operator training after delivery.

Q7: What warranty applies to this machine?

A: ASTZBD offers a 1-year manufacturer warranty covering parts and workmanship.



Why Buy From ASTZBD

1. ASTZBD supplies genuine, factory-tested compression testing equipment directly to laboratories, contractors,andmanufacturersacross
2. Every Digital Compression Testing Machine 2000KN ships with a calibration certificate, so buyers receive verified accuracy from the first Furthermore, our technical team manages installation, leveling, and operator training, which reduces setup delays for busy facilities.
3. ASTZBD also maintains transparent pricing and fast delivery across Dhaka and other major industrial zones.
4. Therefore, engineers and lab managers choose ASTZBD when they need dependable heavy-duty testing equipment backed by strong local support.
