Description

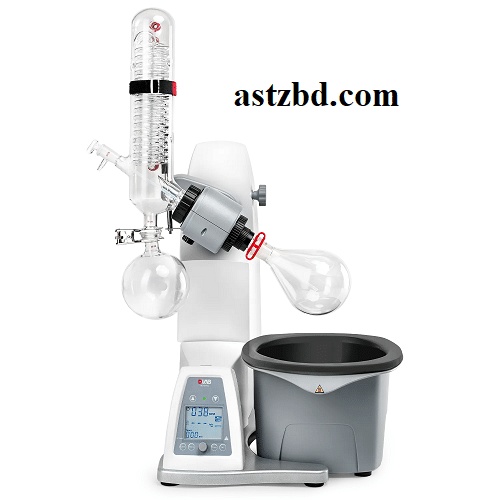

• Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes
• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temperature to 180°C Water/oil heating mode can be changed only through a switch
• Overheating protection temperature at 220 °C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Condenser (cooling surface 1700cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Patented double spring sealing ring made of PTFE provides an excellent sealing performance
• Optional glassware with explosion proof film available
Cat.No.: 6030110111
Evaporating flask volume: 50-3000mL
Temperature range: Room temp.-180℃
Temperature control accuracy: water: ± 1℃ ；oil: ±3℃
Speed range: 20-280rpm
Direction of Rotation: Clockwise and counterclockwise
Evaporation capacity: 1.56L/h
Ultimate vacuum: –
Temperature control: Micro processer PID control
Display: LCD
Timer: Yes
Time Setting Range: 1-999min
Lifting mode: Motorized
Lifting stroke: 150mm
Heating bath size: –
Motor Type: Brushless DC motor
Heating Power: 1300W
Power: 1400W
Voltage/Frequency: 100-120/200-240V，50/60Hz
Dimension[D×W×H]: 465×457×583mm
Weight: 15kg
Permissible ambient temperature: 5-40℃
Permissible ambient humidity: ≤80% RH
Protection Class: IP20
USB Interface: Yes
Safety features: Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications: Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories
