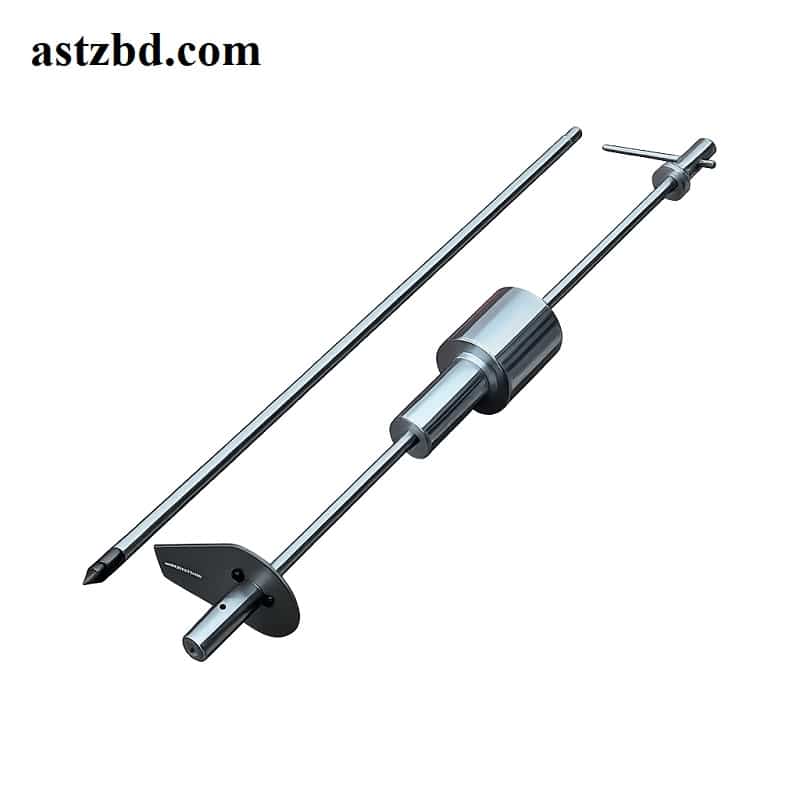

Introduction Dynamic Cone Penetrometer Testing Machine

The Dynamic Cone Penetrometer Testing Machine gives engineers and site supervisors a fast, reliable way to measure soil strength directly in the field. ASTZBD supplies this instrument to construction teams, geotechnical laboratories, and road authorities across Bangladesh.

Engineers use the Dynamic Cone Penetrometer to evaluate subgrade bearing capacity before and after compaction. The machine drives a standardized cone into the soil layer by layer, and the operator records the penetration per blow to calculate the DCP Index (mm/blow). This index directly correlates with California Bearing Ratio (CBR) values, which engineers rely on for pavement design.

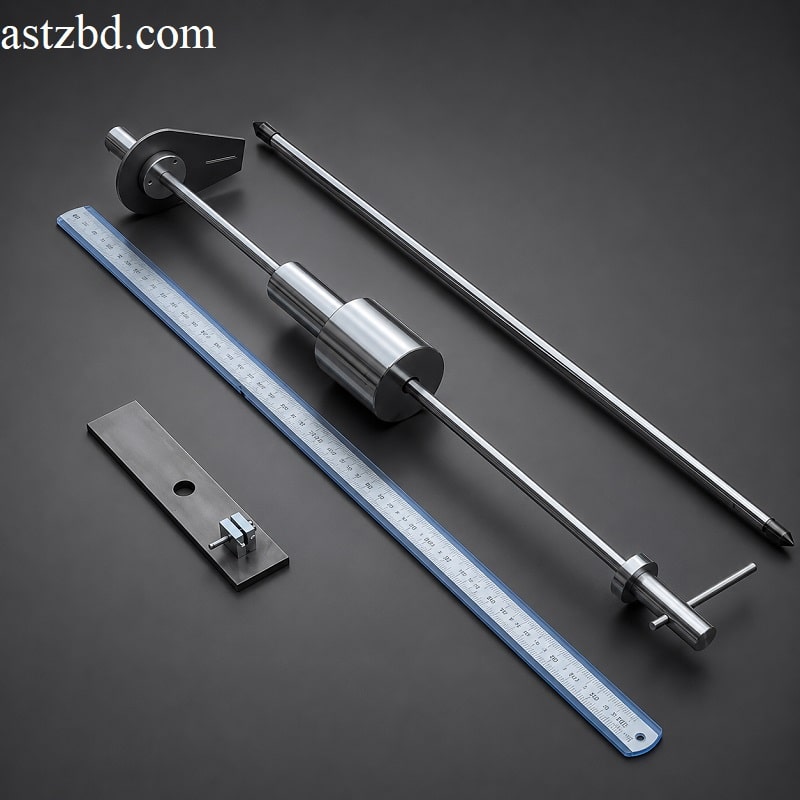

Specifications Dynamic Cone Penetrometer Testing Machine

Feature	Details
Hammer Weight	8 kg (standard)
Drop Height	575 mm (standard, fixed)
Cone Tip	60° hardened steel cone, 20 mm base diameter
Portable	Yes – total weight ~15 kg
Operate	Easy – single operator, no power required
Setup Time	Ready to test within minutes
DCP Extractor	Included – for easy rod extraction
Design	Heavy-duty – vibration-resistant, corrosion-protected
Extension Rods	Graduated (marked in mm/cm), 1 m each, heat-treated steel
Carrying Case	Heavy-duty aluminum or polymer case with foam inserts
User Manual	Yes – step-by-step guide + CBR correlation charts



Key Features DCP Test Machine Price in BD.

• Lightweight, portable single-operator design for rapid field deployment
• Standard 60° cone angle with 20 mm diameter tip as per ASTM D6951 and BS 1377
• 8 kg drop hammer with a fixed 575 mm drop height for consistent energy per blow
• Graduated steel rod with clear millimeter markings for precise penetration readings
• High-grade alloy steel construction resists corrosion in wet and dusty field conditions
• Modular rod sections allow operators to extend depth coverage easily
• Compatible with standard CBR correlation charts and international testing norms
• Minimal maintenance requirements — no power supply, motor, or hydraulic system needed



Applications Soil Penetrometer Price in Bangladesh

• Road and highway subgrade strength verification before paving
• Airport runway pavement design and maintenance assessment
• Earthwork compaction quality control on embankments and fills
• Geotechnical site investigation for building foundations
• Bridge approach and abutment soil evaluation
• Flood control levee and embankment inspection
• Military and emergency route traffic-ability assessment
• Research and academic soil mechanics experiments





Frequently Asked Questions FAQ DCP Machine Price in BD

1. What does the DCP Index tell you?
2. The DCP Index (mm/blow) measures how far the cone penetrates the soil per hammer blow. Engineers convert this value directly into an estimated CBR percentage using standard correlation equations. A lower DCP Index means the soil resists penetration strongly, which indicates higher bearing capacity.
3. Does one operator run the machine alone?
4. Yes. The DCP Testing Machine is a single-operator device. One person lifts the hammer to the drop guide, releases it, and reads the rod scale after each blow. No assistant, no power source, and no heavy equipment support are necessary.
5. Which standard does this machine follow?
6. This machine conforms to ASTM D6951 and BS 1377 Part 9. Both standards specify the 8 kg hammer, 575 mm drop height, and 60° cone geometry that this unit delivers.
7. How deep can the machine test?
8. Each rod section extends testing depth by 1000 mm. Users add sections sequentially. Most field tests cover 0–800 mm per extension. For deeper profiles, they add additional rod sections to reach layers beyond 1 meter.
9. Does astzbd provide after-sales support in Bangladesh?
10. Yes. Provides full after-sales service including spare parts, replacement cone tips, calibration certificates, and technical guidance for operators across Bangladesh. Buyers in Dhaka, Chittagong, and other regions access support through our service team directly.
11. Can the DCP Test replace a laboratory CBR test?
12. The DCP test delivers a field-correlated CBR estimate rather than a laboratory-measured value. Engineers use it to screen large sites quickly and to verify compaction uniformity. For detailed pavement design work, they often combine DCP field results with laboratory CBR tests for maximum accuracy.





Why buy from astzbd DCP Machine Price in BD

Bangladesh-focused stock — astzbd maintains DCP Testing Machines in local inventory, so buyers avoid long import wait times.

Genuine instruments — every machine astzbd sells meets ASTM D6951 and BS 1377 specifications. astzbd provides calibration documentation on request.

Competitive pricing — astzbd sources directly and passes cost savings to buyers across Bangladesh.

Technical expertise — the astzbd team understands soil testing requirements specific to Bangladeshi road, foundation, and flood control projects.

Spare parts availability — astzbd stocks replacement cone tips and extension rods locally, so machines stay operational without long delays.

Nationwide delivery — astzbd ships to Dhaka, all districts across Bangladesh.

After-sales service — astzbd provides usage guidance, operator training support, and warranty service directly in Bangladesh.
