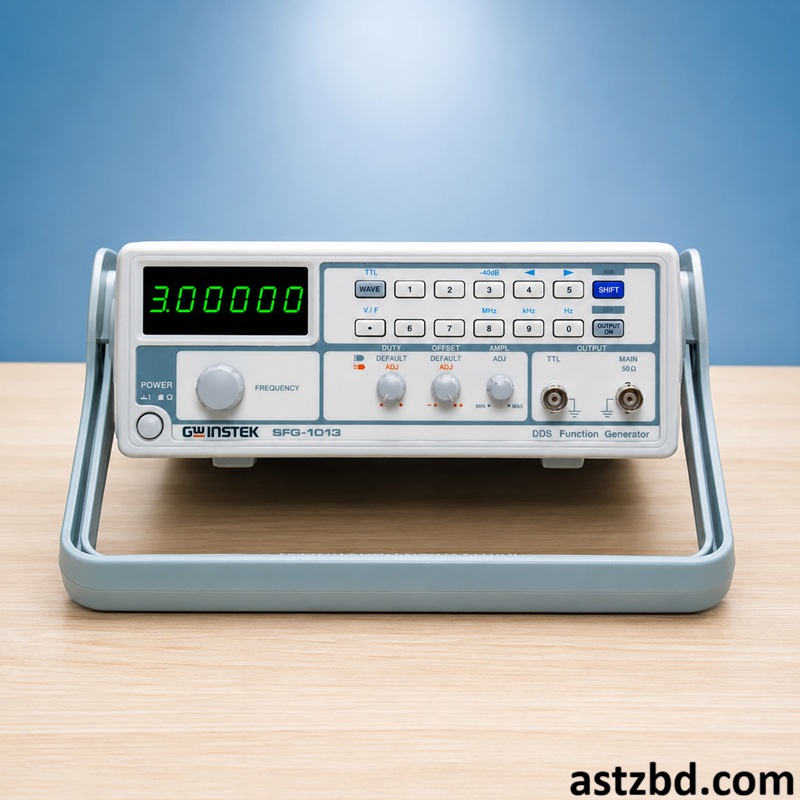

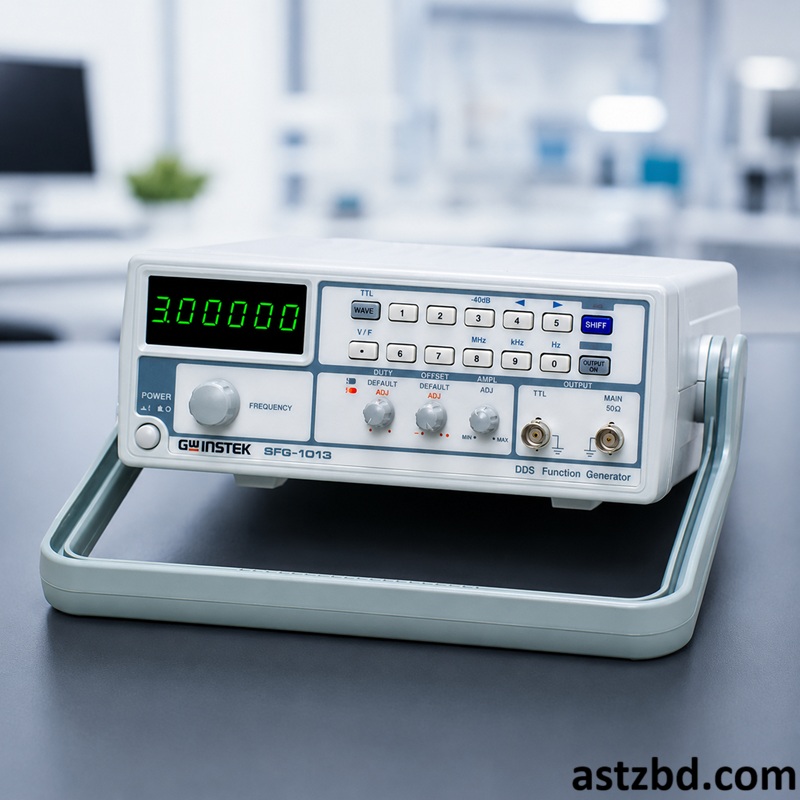

Introduction GW Instek SFG-1013 Function Generator

The GW Instek SFG-1013 Function Generator delivers accurate, stable signal output for engineers, technicians, and students across Bangladesh. Built on DDS (Direct Digital Synthesis) technology embedded in a large-scale FPGA, this unit generates Sine, Square, Triangle, and TTL waveforms across a 0.1Hz to 3MHz frequency range. As a result, users gain a dependable signal source for filter testing, amplifier verification, and general lab measurements without paying for features they do not need. Consequently, the SFG-1013 remains a popular choice among Bangladesh’s electronics labs, polytechnic institutes, and repair workshops. Astzbd supplies this unit with genuine specifications, a full accessory set, and delivery coverage across Dhaka, Chattogram, and Sylhet.



Specifications DDS Function Generator Price in Bangladesh

Specification	Value
Output Function	Sine, Square, Triangle, TTL
Frequency Range (Sine, Square)	0.1Hz ~ 3MHz
Frequency Range (Triangle)	0.1Hz ~ 1MHz
Frequency Resolution	0.1Hz maximum
Frequency Stability	±20ppm
Frequency Accuracy	±20ppm
Aging	±5ppm/year
Amplitude Range	10Vp-p (into 50Ω load)
Amplitude Accuracy	±20% at maximum position
Output Impedance	50Ω ±10%
Attenuator	-40dB ±1dB, x1
DC Offset	<-5V ~ >5V (into 50Ω load)
Duty Control Range	25% ~ 75% below 1MHz (square wave only)
Display	6-digit LED display with voltage display
Output Control	ON/OFF selector
Sine Wave Distortion	≥-55dBc (0.1Hz~200kHz), ≥-40dBc (0.2MHz~2MHz), ≥-35dBc (2MHz~3MHz)
Sine Wave Flatness	<±0.3dB (0.1Hz~1MHz), <±0.5dB (1MHz~2MHz), <±1dB (2MHz~3MHz)
Triangle Wave Linearity	≥98% (0.1Hz~100kHz), ≥95% (100kHz~1MHz)
Square Wave Symmetry	5% of period + 4ns (0.1Hz~100kHz)
Rise/Fall Time	≤100ns at maximum output (into 50Ω load)
Dimensions (W x H x D)	251 x 91 x 291 mm
Weight	2.1 kg
Power Source	AC 100V/120V/220V/240V ±10%, 50/60Hz
Included Accessories	User Manual, Power Cord, GTL-101 Test Lead
Warranty	12 Months



Key Features SFG-1013 DDS Function Generator

1. Generates Sine, Square, Triangle, and TTL waveforms from a single compact chassis.
2. Covers a 0.1Hz to 3MHz frequency range for Sine and Square waves, and 0.1Hz to 1MHz for Triangle waves.
3. Delivers high frequency accuracy of ±20ppm, so measurements stay consistent over repeated use.

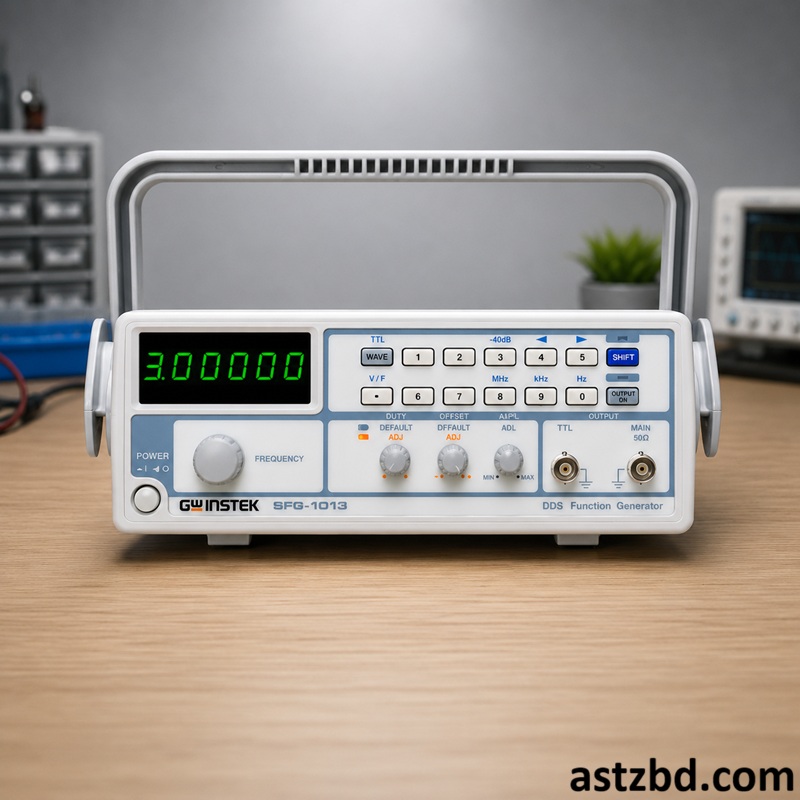

4. Includes a 6-digit LED display with voltage display, which lets users read frequency and amplitude at a glance.
5. Provides a 10Vp-p output amplitude into a 50Ω load, with a built-in -40dB attenuator for fine control.
6. Offers adjustable duty cycle control from 25% to 75% below 1MHz for square wave testing.
7. Produces low-distortion sine waves, rated at -55dBc between 0.1Hz and 200kHz, for cleaner measurement results.

Applications 3MHz Function Generator Bangladesh

1. Testing and calibrating audio amplifiers and filters in electronics workshops.
2. Verifying frequency response in analog and digital circuit design.
3. Supporting practical lab sessions in university and polytechnic electronics courses.
4. Generating reference signals for repair and maintenance of consumer electronics.
5. Driving phase-locked loop (PLL) experiments using the built-in TTL output.
6. Simulating signal sources for quality control in small-scale manufacturing.



Who Uses This GW Instek Signal Generator?

1. Electronics engineers who need a dependable bench signal source for daily testing.
2. University and polytechnic students learning waveform generation and circuit analysis.
3. Repair technicians who service audio equipment, PCBs, and consumer electronics.
4. R&D teams that require a low-cost, high-accuracy DDS function generator for prototyping.
5. Instructors and lab administrators who equip teaching labs across Bangladesh.



Frequently Asked Questions GW Instek Signal Generator

Q1. What frequency range does the GW Instek SFG-1013 Function Generator cover?

The SFG-1013 covers 0.1Hz to 3MHz for Sine and Square waves, and 0.1Hz to 1MHz for Triangle waves. This range suits most audio and low-frequency RF testing needs.

Q2. Which waveforms can this function generator produce?

The unit produces Sine, Square, Triangle, and TTL waveforms from a single output, so users do not need separate generators for different waveform types.

Q3. Does the SFG-1013 include a voltage display?

Yes, the unit features a 6-digit LED display that shows both frequency and voltage readings, which speeds up bench measurements.

Q4. What accessories come included with the purchase?

Astzbd ships each unit with a user manual, a power cord, and a GTL-101 test lead, matching the manufacturer’s standard accessory list.

Q5. Is the SFG-1013 suitable for classroom or lab use?

Yes, its compact size, simple front-panel controls, and stable DDS-based output make it a practical choice for teaching labs and student projects.

Q6. Does Astzbd deliver this function generator outside Dhaka?

Yes, Astzbd delivers the SFG-1013 across Dhaka, Chattogram, and Sylhet, along with other regions the store serves.

Q7. What warranty does Astzbd provide on this unit?

Astzbd provides a 12-month warranty on the GW Instek SFG-1013, consistent with the manufacturer’s standard coverage.



Why Buy From Astzbd GW Instek SFG-1013 Function Generator

Astzbd sources the GW Instek SFG-1013 Function Generator directly from authorized channels, so buyers receive a genuine unit with full manufacturer specifications. Additionally, every order includes the complete accessory set: user manual, power cord, and GTL-101 test lead. Astzbd also delivers across Dhaka, Chattogram, and Sylhet, and the team provides after-sales support for setup and calibration questions. Therefore, customers who buy from Astzbd get a verified product, transparent pricing, and reliable local service in one purchase.
