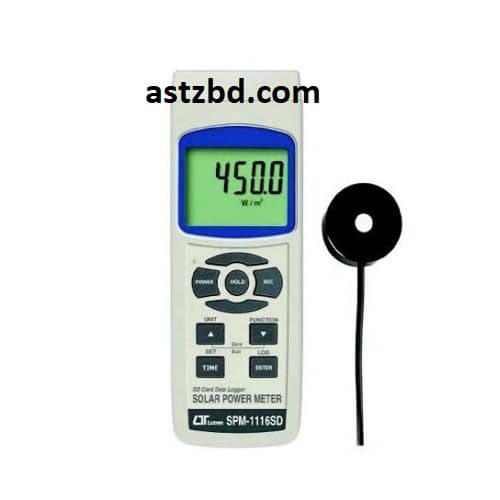

Lutron SPM-1116SD Solar Power Meter Taiwan

Description

Features

• Wide spectral range, long term stability, cosine correction
• Range: 2000 W/m2, 634 Btu/ (ft2 x h)
• Spectral response: 400 to 1100 nm
• 3 Function: Solar Power, Power Integration, Transmission
• Cosine corrected
• Separate probe, easy for operation of different measurement environments
• Data hold, Record (Max, Min)
• SD card capacity: 1 GB to 16 GB, SD card is  optional
• RS-232/USB computer interface
• Application: solar radiation measurement, solar power research, physics and optical laboratories solar transmission measurement

Resolution:

<1000W / m², resolution 0.1W / m²
≧ 1000W / m², resolution 1W / m²
<317 Btu / (ft²xh), 0.1Btu / (ft²xh)
≧ 317 Btu / (ft²xh), 1Btu / ( ft²xh)
☆ Accuracy: ± 10W / m², ± 3Btu / (ft²xh) or ± 5% of reading
☆ Accuracy of angle measurement: cosine correction accuracy <5% at <60 °

☆ Sampling time 1 second
☆ Operating temperature 0-50 ℃
☆ power may applied
☆ reading lock / maximum / minimum function

☆ Integrated SD card record function, and records the time / date
automatic sampling time can set 1-3600 seconds
can set manually record

Specifications:

• Solar Power
• Transmission (%)
• Solar Power Integration.
• Spectral Response: 400 to 1000 nm
• Solar Range to 2000 W/m^2, 634 Btu/( ft^2 x h )
• Built In Data Logger with output on SD Card
• SD Card directly connects to PC in Excel
• Data Hold, Memory Recall
• Clock Setting
• Zero Adjust
• Cosine correction
