• Introduction Magnetic Stand with Dial Gauge

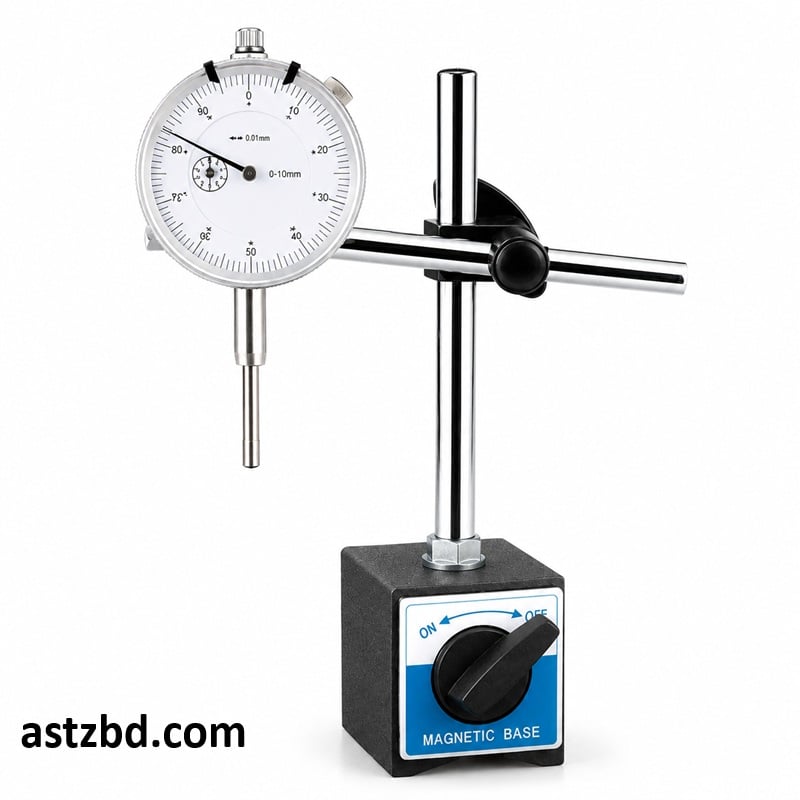

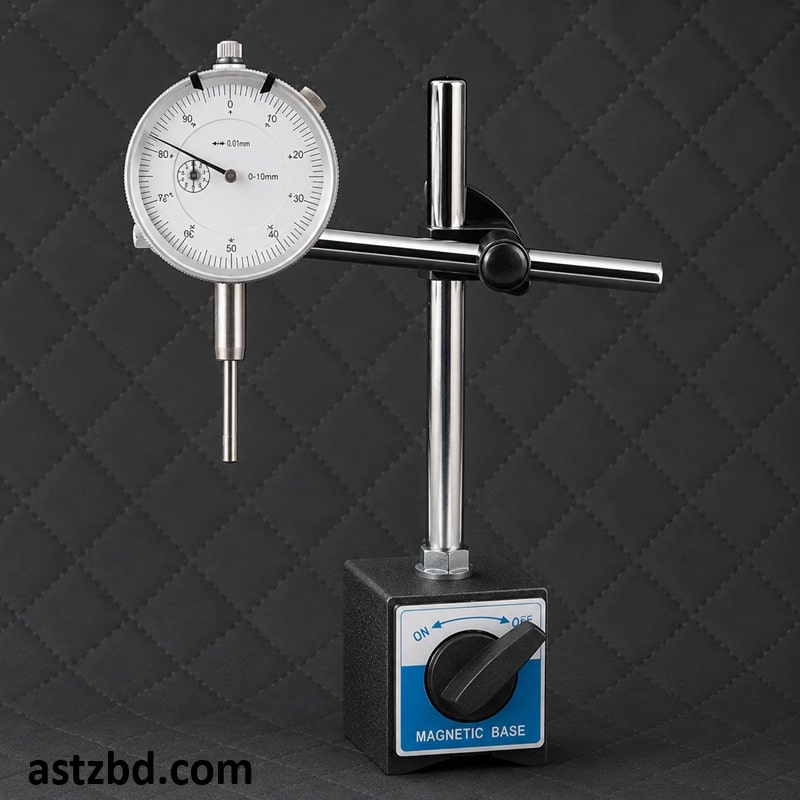

  The Magnetic Stand with Dial Gauge 0-10mm 0.01mm 60 kg Base delivers the rock-solid stability and measurement precision that machinists, quality control inspectors, and metrologists demand for accurate surface, runout, and flatness measurement work.  ]Magnetic Stand with Dial Gauge This complete set pairs a powerful 60 kg magnetic base with a 0–10mm range dial gauge reading to 0.01mm resolution, giving professionals a reliable and portable measurement station they can deploy on any Magnetic Stand with Dial Gauge ferromagnetic machine tool surface in seconds. Engineers and technicians across Bangladesh use this combination daily in CNC workshops, lathe operations, milling setups, quality control benches. Magnetic Stand with Dial Gauge Magnetic Stand with Dial Gauge

• Specifications Magnetic Stand with Dial Gauge

  Magnetic Base Specifications

  Specification	Details
  Magnetic Holding Force	60 kg (approximately 588 N)
  Base Type	ON/OFF switchable permanent magnet
  Base Dimensions	Approx. 60 × 40 × 45 mm
  Base Material	Hardened steel with ground contact surface
  Arm Type	Fine adjustment articulating arm (double or single rod)
  Arm Material	Hardened steel rods with brass locking knuckles
  Fine Adjustment	Micro-adjustment knob for precise dial positioning
  Clamp Compatibility	Accepts 8mm stem diameter gauges (standard)
  Finish	Chrome-plated / black oxide coated
  Total Arm Reach	Approx. 200–300 mm (fully extended)

  Dial Gauge Specifications

  Specification	Details
  Measurement Range	0 – 10 mm
  Graduation / Resolution	0.01 mm
  Dial Face Diameter	58 mm
  Stem Diameter	8 mm
  Contact Point	Carbide-tipped flat contact point (standard)
  Bezel Type	Rotatable locking bezel
  Dial Reading Type	Continuous / Revolution counter
  Accuracy	±0.01 mm (per graduation)
  Repeatability	≤ 0.01 mm
  Measuring Force	Approx. 1.2 – 1.5 N
  Body Material	Hardened steel casing
  Lug Back	Standard lug back for clamp mounting
  Standard Compliance	DIN 878, JIS B 7503



Key Features Magnetic Stand with Dial Gauge

• 60 kg Magnetic Holding Force — The powerful permanent magnet base grips ferromagnetic surfaces with 60 kg of holding force, eliminating vibration-induced measurement errors during machine operation.
• ON/OFF Magnetic Switch — The lever-operated ON/OFF switch activates and releases the magnetic grip instantly, allowing the operator to reposition the stand without tools or effort.
• Full Articulating Arm System — The multi-joint articulating arm with brass locking knuckles reaches and angles into tight measurement positions around workpieces, fixtures, and machine tool surfaces.
• Fine Adjustment Knob — The micro-adjustment knob on the arm moves the dial gauge spindle precisely to the measurement contact point without overshooting the target surface.
• 0.01mm Resolution Dial Gauge — The 0–10mm dial gauge reads to 0.01mm graduation, providing the measurement resolution required for precision machining, quality inspection, and alignment tasks.
• Rotatable Locking Bezel — The operator rotates the bezel to zero the dial gauge at any position on the measurement range, enabling direct deviation reading without mental arithmetic.
• Carbide Contact Point — The carbide-tipped contact point resists wear from repeated contact with hardened steel, cast iron, and other workpiece materials, extending the gauge service life Magnetic Stand with Dial Gauge

Applications

• Lathe and milling machine setup — checking chuck runout, spindle runout, and workpiece alignment before and during machining operations
• Surface plate inspection — measuring flatness, parallelism, and height variation of machined components against a surface plate reference
• CNC machining centers — verifying fixture alignment, datum setting, and part position before program execution
• Grinding machine setup — checking wheel dress runout and workpiece surface flatness during cylindrical and surface grinding
• Gear and shaft runout measurement — detecting eccentricity, wobble, and radial runout in rotating shafts, gears, pulleys, and bearing journals
• Calibration and metrology laboratories — setting up comparative measurement references and verifying gauge block stacks

Who Uses This

• Machinists and CNC operators in precision engineering workshops setting up lathes, mills, and grinding machines
• Quality control inspectors in manufacturing facilities measuring machined component dimensional compliance
• Mechanical engineers in production engineering and process engineering roles conducting precision alignment work
• Tool room technicians maintaining cutting tool geometry, fixture accuracy, and machine tool condition
• Automotive engineers and technicians checking rotating component runout and alignment during vehicle repair
• Calibration laboratory metrology technicians conducting comparative measurement and instrument verification Magnetic Stand with Dial Gauge

Frequently Asked Questions (FAQ)

Q1: What does the 60 kg magnetic holding force mean in practical use? The 60 kg holding force means the magnetic base resists a pull-off force of 60 kilograms when the magnet sits on a flat, clean ferromagnetic steel surface. In workshop practice, this force keeps the stand completely stable against vibration, accidental bumps, and the measurement contact force of the dial gauge spindle during normal use.

Q2: Does the magnetic base work on aluminum or stainless steel surfaces? No. The permanent magnet base only grips ferromagnetic materials such as mild steel, cast iron, and hardened steel. It does not grip aluminum, copper, brass, stainless steel, or granite surface plates. For non-magnetic surfaces, operators use a separate clamping fixture or magnetic base adapter.

Q3: How do I zero the dial gauge before measurement? Place the gauge contact point on the reference surface, apply light spring pressure to compress the spindle slightly, then rotate the outer bezel until the needle points to zero. Lock the bezel in position. The gauge now reads deviation from that reference point directly on the dial face.

Q4: Can this stand hold the dial gauge in an inverted or horizontal position? Yes. The articulating arm joints lock in any orientation including vertical, horizontal, angled, and inverted positions. The locking knuckles maintain the selected position rigidly under the dial gauge’s measurement contact force throughout the test.

Q5: Does astzbd supply replacement contact points for the dial gauge? Yes. astzbd stocks standard replacement contact points compatible with 8mm stem dial gauges. Customers can order flat, spherical, and pointed carbide contact points separately to suit different measurement surface requirements Magnetic Stand with Dial Gauge.
