Introduction MCP M21-7000 Trainer Board

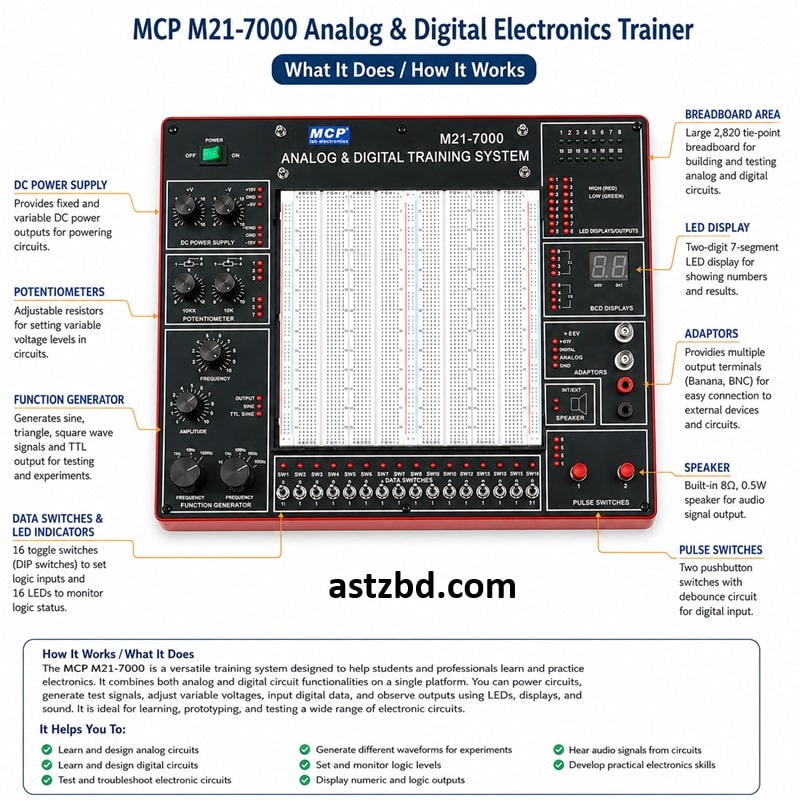

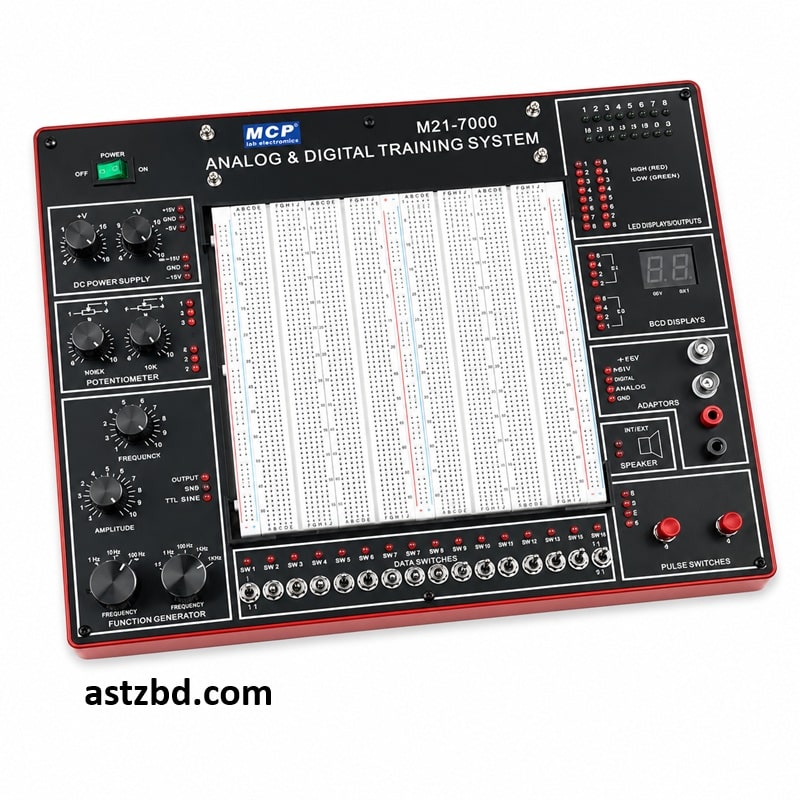

The MCP M21-7000 Trainer Board delivers a complete analog and digital electronics learning platform for classrooms and labs across Bangladesh. Students build circuits directly on the built-in solderless breadboard, and instructors demonstrate live signal behavior using the onboard DC power supply and function generator. Engineers test digital logic through sixteen data switches and monitor outputs on sixteen LED indicators. Technicians also connect the trainer to external equipment through banana sockets, BNC jacks, and D-sub ports. ASTZ (Advance Science & Technology Zone) supplies this trainer board with genuine MCP components and full after-sales support in Dhaka.
Key Features MCP M21-7000 Trainer Board
- Combines a solderless breadboard, DC power supply, and function generator in one unit
- Offers 2,820 tie points with nickel-plated contacts for flexible circuit prototyping
- Generates four waveform types: sine, triangle, square, and TTL pulse
- Covers five frequency ranges from 1Hz to 100kHz
- Displays digital states on sixteen LED indicators and a two-digit 7-segment display
- Debounces pulse inputs through two dedicated pushbutton switches
- Connects to external peripherals via banana sockets, BNC jacks, and D-sub 25-pin ports
- Includes sixteen toggle data switches for digital logic experiments
- Ships with a power cord, ten connector pins, and a printed user manual
SPECIFICATIONS MCP M21-7000 Trainer Board
| Specification | Details |
| Brand | MCP |
| Model | M21-7000 |
| Country of Origin | China |
| Category | Analog & Digital Electronics Trainer Board |
| Feature | Specification |
| Tie Points | 2,820 tie points |
| Contact Material | Nickel-plated contacts |
| Wire Compatibility | Accepts DIP ICs and AWG #22–30 (0.3–0.8 mm) solid/lead wires |
| Design | Removable breadboard, compatible with demonstration panel |
| Output Type | Specification |
| Fixed Output | +5V DC, 1A |
| Fixed Output | −5V DC, 1A |
| Variable Output | 0V to +15V DC, 1A |
| Variable Output | 0V to −15V DC, 1A |
| Control | Value |
| VR1 | 1kΩ |
| VR2 | 100kΩ |
| Feature | Specification |
| Frequency Range 1 | 1Hz – 10Hz |
| Frequency Range 2 | 10Hz – 100Hz |
| Frequency Range 3 | 100Hz – 1kHz |
| Frequency Range 4 | 1kHz – 10kHz |
| Frequency Range 5 | 10kHz – 100kHz |
| Sine Wave Output | 0–10 Vpp (Variable) |
| Triangle Wave Output | 0–10 Vpp (Variable) |
| Square Wave Output | 0–10 Vpp (Variable) |
| TTL Output | 4 Vpp |
| Feature | Specification |
| LED Display | Two-digit 7-segment display |
| Pulse Switches | 2 pushbutton switches with debouncer circuit |
| Data Switches | 16 toggle switches (Down = LO, Up = HI) |
| LED Indicators | 16 red LEDs for input monitoring |
| Feature | Specification |
| Speaker | 2.5-inch diameter |
| Impedance | 8Ω |
| Power Rating | 0.5W |
| Feature | Specification |
| Banana Sockets | 2 |
| BNC Jacks | 2 with interchangeable point tips |
| Connector Type | Specification |
| Straight Header | 60-pin |
| Card Edge Connector | 62-pin, 2.54 mm pitch |
| D-Sub Connector | 25-pin Male & Female |
| Card Edge Connector | 56-pin, 3.96 mm pitch |
| DIP Socket | 28-pin & 40-pin |
| Included Items |
| Power Cord |
| Connector Pins (10 pcs) |
| User Manual |
| Feature | Specification |
| Dimensions (W × H × D) | 258 × 95 × 334 mm |
| Weight | Approx. 4.5 kg |
Applications MCP M21-7000 Trainer Board
- Electronics labs teach analog circuit design using the built-in breadboard and power supply
- Technicians test digital logic gates through the toggle switches and LED indicators
- Instructors demonstrate waveform generation with the four-mode function generator
- Students practice signal sampling and reconstruction using the BNC output jacks
- Engineering institutes run combined analog-digital coursework on a single trainer
- Labs pair the trainer with an oscilloscope for real-time signal analysis
Who Uses This MCP M21-7000 Trainer Board
- Electrical and electronics engineering departments
- Polytechnic institutes and technical training centers
- Diploma and vocational electronics students
- University electronics and circuit design labs
- Private training academies teaching embedded and analog electronics
- Research and development teams needing a portable prototyping bench
Frequently Asked Questions (FAQ)
Q1: What does the MCP M21-7000 Trainer Board include? The trainer board includes a solderless breadboard, DC power supply, function generator, pulse switches, data switches, LED display, speaker, and connector accessories.
Q2: Which frequency range does the function generator cover? The function generator covers five ranges spanning 1Hz to 100kHz.
Q3: Can students connect the trainer to an oscilloscope? Students connect the trainer to an oscilloscope or other test equipment through the BNC jacks and banana sockets.
Q4: What is the price of the MCP M21-7000 Trainer Board in Bangladesh? ASTZ sells the MCP M21-7000 Trainer Board at ৳45,000, though prices may change based on current stock and offers.
Q5: Does ASTZ provide a warranty for this trainer board? ASTZ provides a manufacturer warranty and after-sales technical support for every unit sold.
Q6: Who should use this trainer board? Electronics students, engineering instructors, and lab
technicians use this trainer board for analog and digital circuit training.
Q7: Does the breadboard support all component sizes? The breadboard supports all standard DIP sizes and accepts lead or solid wire in AWG #22–30.
Why Buy From ASTZ
- ASTZ supplies genuine MCP trainer boards directly to Bangladeshi institutions.
- The company stocks the MCP M21-7000 Trainer Board in Dhaka and ships orders nationwide.
- Customers receive a manufacturer warranty and dedicated technical support after purchase.
- ASTZ’s team also assists with installation and answers product questions promptly.
- The store’s physical location at Ittefaq Mor, Dhaka, gives customers the option to inspect equipment before buying.
- Educational institutions receive customized quotations for bulk orders upon request.
