NAKE CYLSN-1000E High-Strength Bolt Torsion & Preload Tester – 1000 kN / 5000 Nm M10–M39 | EN 14399-2 · GB/T 32076 · ASTM F3125 · ISO 16047 | Auto K-Calc + Angle Control
Professional E-Commerce Product Description

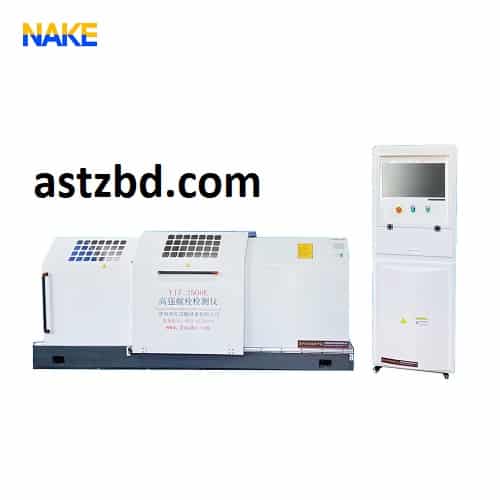

NAKE CYLSN-1000E – The ultimate computer-controlled torsion testing system for large hexagon high-strength bolts (M10–M39), delivering axial force, torque, torque coefficient (K), and rotation angle with ±1.0% precision. Fully compliant with EN 14399-2, GB/T 32076.2, ASTM F3125, ISO 16047, AS/NZS 1252, NB/T 31082.
Key Features
- One-Click Full Automation Start → Tighten to target force/angle → Beep + 1s hold → Auto-reverse unload → Print full report
- 4-in-1 Precision Testing
- Axial Force: 100–1000 kN
- Torque: 100–5000 Nm
- Torque Coefficient (K): Auto-calculated
- Torsion Angle: 0–1000° (unlimited) ±1%
- Smart Multi-Mode Control Set by:
- Axial Force
- Torque
- Angle (initial torque → 1st angle → 2nd angle) Auto-stats for N samples: avg, S, V
- Wide Bolt Compatibility
- M10–M39 (10 sizes)
- Length: 30–350 mm (≥2.5d)
- Full fixture set included
- 3.0 kW Imported Servo System
- 0.1–4.0 r/min speed
- ±1.0% torsion speed control
- Industrial PC Workstation
- Lenovo PC + LCD
- Real-time force-torque-angle curve
- USB/LAN export, thermal printer
- Safety & Mobility
- Auto-adjust mobile base (ball screw)
- Full metal safety shield (optional)
- Overload, E-stop, beep alert
Applications
| Industry | Standard |
|---|---|
| Steel Structures | GB/T 50205, EN 14399-2 |
| Wind Turbine Towers | NB/T 31082 |
| Bridge & High-Rise | ASTM F3125, AS/NZS 1252 |
| Railway & Offshore | GB/T 32076.2 |
| Third-Party Certification | ISO 16047, CNAS |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NAKE CYLSN-1000E |
| Type | Torsion Testing Machine |
| Max Capacity | >1000 kN |
| Accuracy Grade | 1 (±1.0%) |
| Load Way | Electronic Load |
| Loading Method | Static Load |
| Display | PC (LCD monitor) |
| Control | Computer Control |
| Weight | 1000–2000 kg (~2000 kg) |
| Power Source | AC380V (motor), 220V (control) |
| Total Motor Power | 5.0 kW |
| Output Speed | 0.1–4.0 r/min |
| Axial Force Range | 100–1000 kN |
| Torque Range | 100–5000 Nm |
| Torsion Angle | 0–1000° (unlimited) |
| Bolt Specs | M10–M39 |
| Bolt Length | 30–350 mm (≥2.5d) |
| Test Accuracy | ±1.0% (force, torque, angle) |
| HS Code | 9024109000 |
| Trademark | NAKE |
| Origin | China |
| Production Capacity | 500 Sets/Year |
Standard Inclusions
| Item | Qty |
|---|---|
| Main Test Host (1000 kN + 5000 Nm sensors) | 1 set |
| 3.0 kW Imported Servo Motor + Drive | 1 set |
| Microcomputer Controller | 1 set |
| Lenovo PC + LCD Monitor | 1 set |
| Nut Sleeves (M10–M39, 10 pcs) | 1 set |
| Inner/Outer Plates + Anti-Rotation Boards (10 sizes) | 1 set each |
| Auto-Adjust Mobile Base (ball screw) | 1 set |
| Full Safety Shield (optional) | 1 set |
| Thermal Printer + Paper | 1 set |
| Technical Docs (Manual, Cert, Software) | 1 set |
