Introduction UNI-T UT301C Infrared Thermometer

The UNI-T UT301C+ Infrared Thermometer sets a new standard for non-contact temperature measurement in Bangladesh’s industrial and technical sectors. Engineers, HVAC technicians, electricians, and quality control professionals choose this advanced ring laser pyrometer because it combines wide-range measurement (-32°C to 600°C), outstanding ±1.5°C accuracy, and a host of intelligent data management features into one ergonomic, field-ready device.

Unlike conventional spot laser thermometers, the UNI-T UT301C+ uses a ring laser system that visually outlines the exact measurement area on the target surface. This unique feature eliminates guesswork and improves measurement confidence, especially when working on small components or from a distance. With a 12:1 distance-to-spot ratio, the device measures a 5 cm diameter spot from 60 cm away, making it equally effective on circuit boards and large industrial machinery.

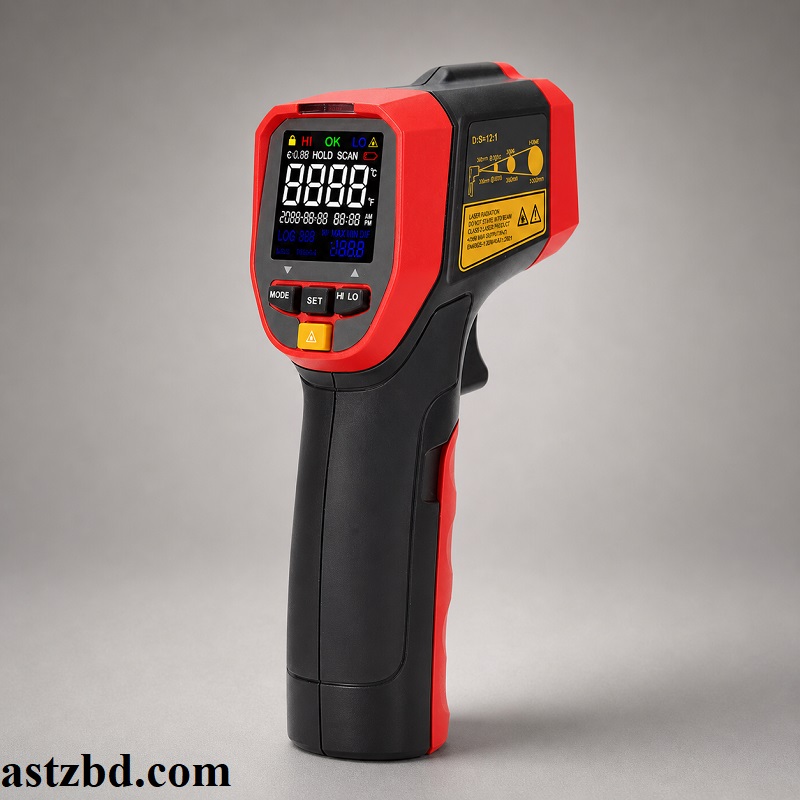

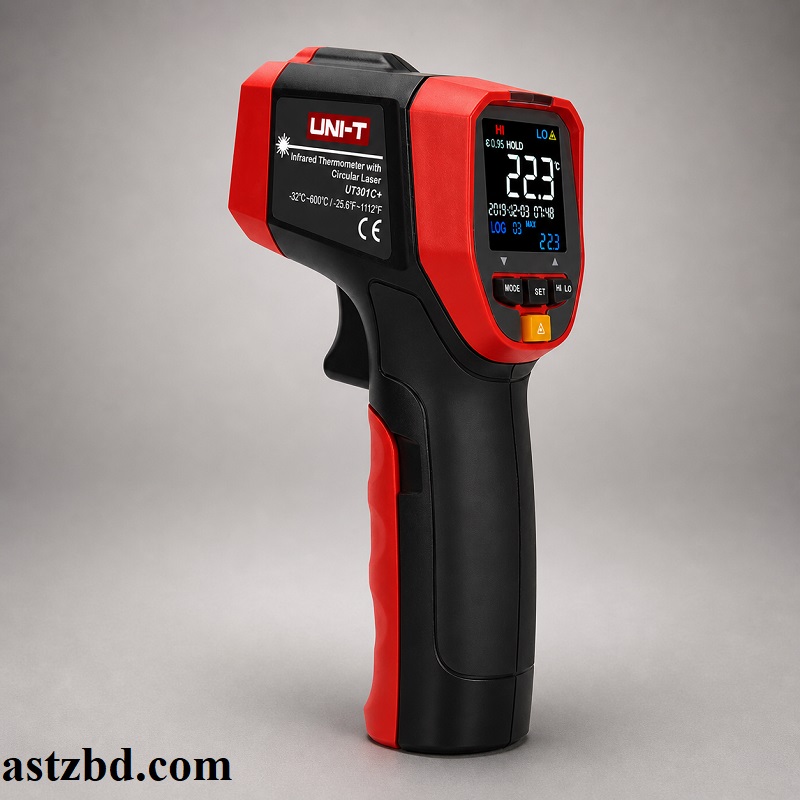

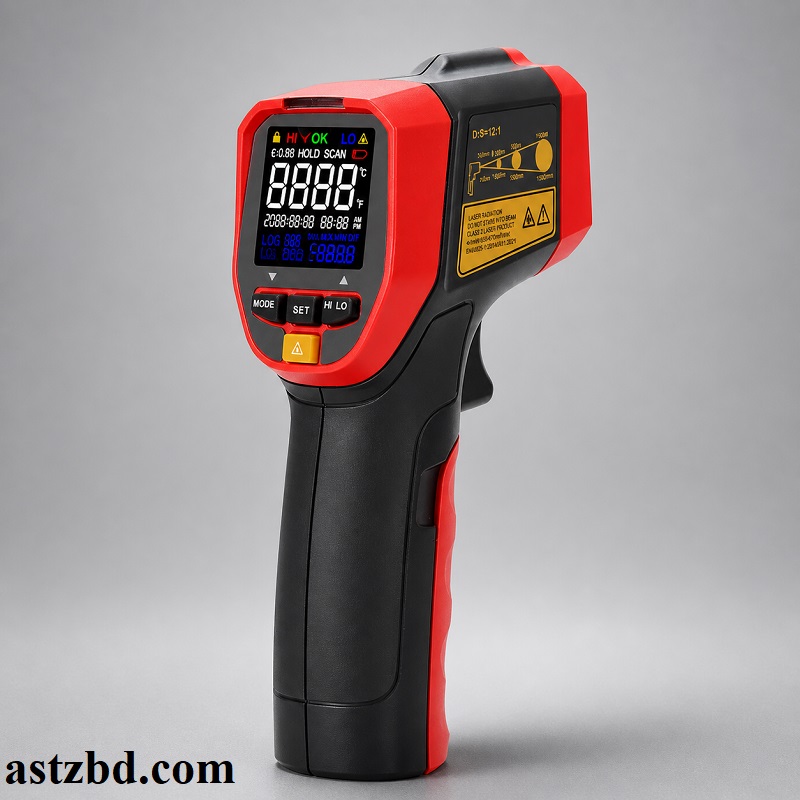

UNI-T UT301C+ Infrared Thermometer

Users can store up to 99 measurement groups, schedule automatic readings at custom intervals (1 minute to 96 hours), and recall recorded data directly on the color display. The adjustable emissivity (0.1–1.0) with five preset save slots ensures accurate readings across metals, plastics, ceramics, and organic materials. ASTZ supplies this genuine UNI-T product in Bangladesh with warranty support and fast delivery to Dhaka and beyond.



Specifications UNI-T UT301C+ Infrared Thermometer

Parameter	Specification
Model	UNI-T UT301C+
Temperature Range (IR)	-32°C to 600°C (-25.6°F to 1112°F)
Measurement Accuracy	±1.5°C or ±1.5% of reading (whichever is greater)
Repeatability	±0.5°C or ±0.5% of reading
Display Resolution	0.1°C / 0.1°F
Distance-to-Spot Ratio (D:S)	12:1
Spectral Response	8 μm to 14 μm
Response Time	< 250 ms (95% of reading)
Emissivity	Adjustable 0.1 to 1.0 (5 preset save slots)
Laser Type	Ring Laser (Class II)
Display Type	High-Contrast EBTN Color LCD
Measurement Modes	MAX / MIN / AVG / DIFF / HOLD
Data Storage	Up to 99 groups with date & time
Scheduled Measurement	1 minute to 96 hours interval, up to 99 sets
Alarm	Visual & Audible (user-defined high/low thresholds)
Tripod Mount	Yes
Lock Measurement	Yes (continuous trigger-free monitoring)
Temperature Unit	°C / °F selectable
Power Supply	9V Battery (6F22)
Auto Power-Off	Yes
Low Battery Indicator	Yes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	≤ 85% RH (non-condensing)
Gross Weight (approx.)	~332 g (including battery)
Warranty	1 Year (Manufacturer Warranty)
Country of Origin	China (UNI-Trend Technology)



Key Features UNI-T UT301C+ Infrared Thermometer

1. Ring laser sighting system marks the exact measurement zone on the target surface for precise aiming
2. Wide temperature range of -32°C to 600°C (-25.6°F to 1112°F) covers cryogenic to high-heat industrial applications
3. ±1.5°C / ±1.5% measurement accuracy with ±0.5°C / ±0.5% repeatability
4. 12:1 distance-to-spot ratio enables accurate measurement from a safe working distance
5. Adjustable emissivity from 0.1 to 1.0 with five saveable preset slots for different surface materials
6. MAX / MIN / AVG / DIFF hold modes provide comprehensive statistical temperature analysis
7. Data logger stores up to 99 measurement groups with date and time stamps
8. Scheduled time measurement function runs automated readings at intervals from 1 minute to 96 hours
9. Visual and audible alarms trigger when temperature exceeds user-defined high or low thresholds
10. High-contrast EBTN color display offers excellent readability in bright and low-light environments
11. Tripod mount compatibility allows hands-free, stable monitoring on fixed positions
12. Lock measurement function holds the trigger for continuous monitoring without fatigue
13. Celsius and Fahrenheit selectable for flexible reporting across different standards
14. Low battery indicator and automatic power-off extend battery life
15. 9V battery (6F22) power supply with compact ergonomic pistol-grip body



Applications UNI-T UT301C+ Infrared Thermometer

1. Electrical distribution panel and switchgear temperature inspection
2. HVAC system duct, pipe, and component temperature monitoring
3. Automotive engine, brake, exhaust, and drivetrain diagnostics
4. Industrial motor, bearing, and conveyor belt maintenance
5. Food processing line quality control and cold chain verification
6. Building envelope and insulation thermal performance assessment
7. Transformer and substation equipment inspection in power utilities
8. Plastics and rubber manufacturing process temperature control
9. Research and development laboratory thermal testing
10. Printing machine roller and drum temperature management



Who Uses This UNI-T UT301C+ Infrared Thermometer Price in Bangladesh

1. Electrical engineers and electricians performing preventive maintenance on panels and switchgear
2. HVAC technicians servicing air conditioning, refrigeration, and ventilation systems
3. Automotive mechanics diagnosing engine and brake system heat issues
4. Industrial maintenance teams monitoring rotating machinery and conveyors
5. Quality control inspectors in food, pharmaceutical, and textile factories
6. Building and construction professionals conducting energy audits
7. Research engineers and laboratory scientists performing thermal analysis
8. Power utility workers inspecting transformers and outdoor substations

Frequently Asked Questions (FAQ) UNI-T UT301C+ Infrared Thermometer Price in Bangladesh

Q1: What temperature range does the UNI-T UT301C+ Infrared Thermometer cover?

The UNI-T UT301C+ covers a range of -32°C to 600°C (-25.6°F to 1112°F). This wide range makes it suitable for everything from cold storage temperature checks to high-temperature industrial process monitoring.

Q2: What is the distance-to-spot ratio of the UT301C+?

The UT301C+ features a 12:1 D:S ratio. At a distance of 60 cm (24 inches), the device measures a circular spot approximately 5 cm (2 inches) in diameter.

Q3: What makes the ring laser different from a standard single-point laser?

The ring laser in the UT301C+ projects a circular outline around the entire measurement area rather than a single center dot. This gives the operator a clear, visible boundary of exactly which surface area the thermometer samples, eliminating the guesswork that comes with single-point laser systems and improving accuracy on small or irregular targets.

Q4: Can I adjust the emissivity on the UT301C+?

Yes. The emissivity is adjustable from 0.1 to 1.0. Users can also save up to five custom emissivity presets and switch between them quickly. This capability makes the device accurate across shiny metals, matte surfaces, plastics, ceramics, and organic materials.

Q5: Is the UNI-T UT301C+ safe to use on humans for medical temperature checks?

No. The UT301C+ is an industrial infrared thermometer and the manufacturer does not certify it for medical or clinical body temperature measurement. For human temperature screening, buyers should choose a dedicated UNI-T medical infrared thermometer.

Q6: How do I get the UNI-T UT301C+ delivered to my location in Bangladesh?

Astzbd ships the UNI-T UT301C+ Infrared Thermometer to Dhaka and all major cities across Bangladesh via trusted courier services. Customers in Dhaka can also arrange same-day or next-day delivery.
