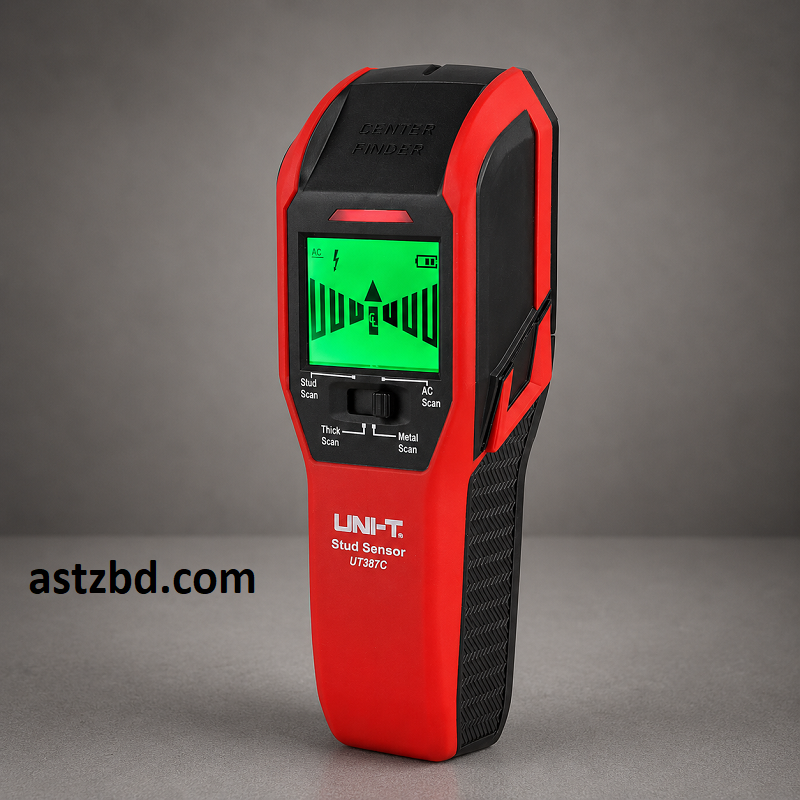

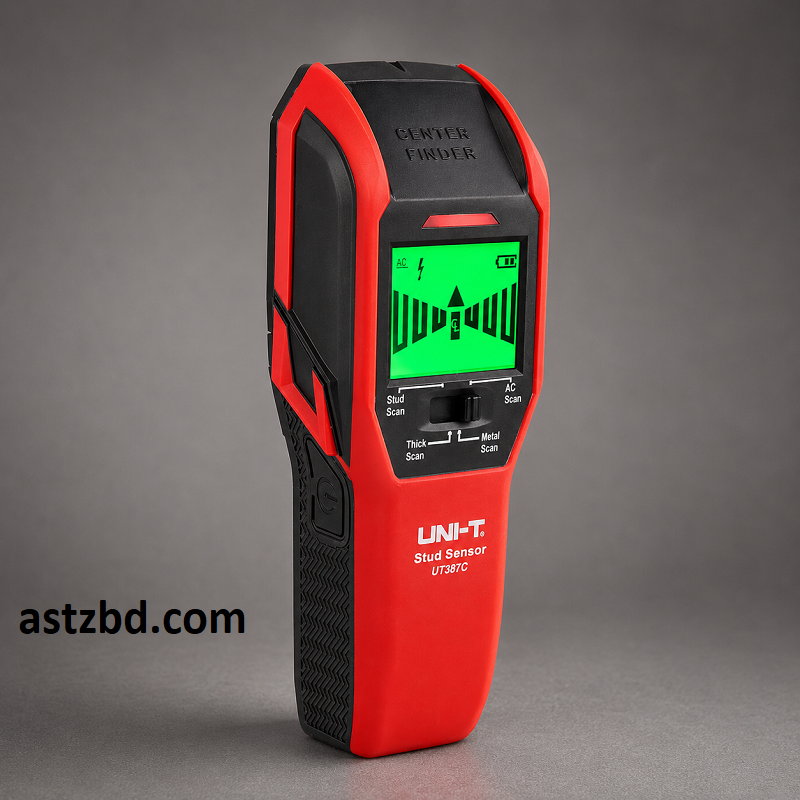

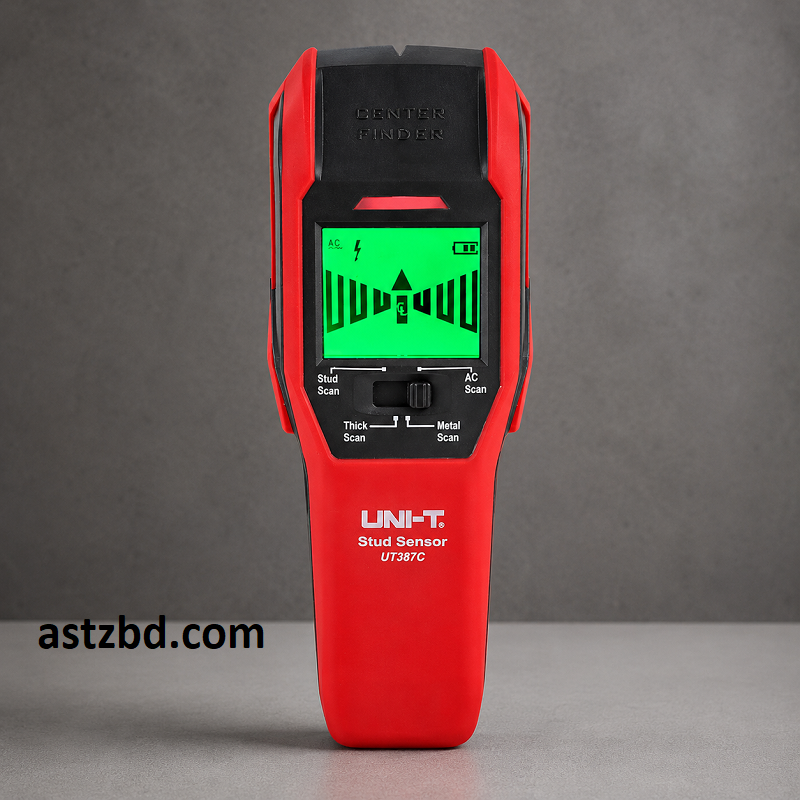

Introduction UNI-T UT387C Stud Sensor Wall Detector

Every construction worker, electrician, and home renovator in Bangladesh knows the frustration of drilling into a hidden pipe or live wire. The UNI-T UT387C Stud Sensor Wall Detector with AC Wire Detection eliminates that danger entirely. This professional-grade wall scanner combines three powerful detection modes into a single ergonomic device, making it the most practical tool for anyone who works with walls.

Specifications UNI-T UT387C Stud Sensor Wall Detector

Brand	UNI-T
Model	UT387C
Product Type	Multi-Mode Stud Sensor / Wall Detector
Detection Modes	Wood Stud / Deep Metal & Rebar / AC Live Wire (3 modes)
Wood Stud Detection Depth	Up to 38 mm (1.5 inches)
Metal / Rebar Detection Depth	Up to 76 mm (3 inches)
AC Wire Detection Depth	Up to 76 mm (3 inches)
AC Wire Frequency	50 Hz / 60 Hz
Indicator Type	LED bar indicator + audible beep
Display	LCD with backlight
Calibration	Auto-calibration (surface-referenced)
Power Supply	9V battery (6F22 / 6LR61)
Battery Life Indicator	Low-battery warning on LCD
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 50°C
Relative Humidity	≤ 80% RH (non-condensing)
Weight	Approx. 220 g (with battery)
Dimensions	Approx. 168 × 60 × 33 mm
Marking / Notch	Center-stud marking notch on device top
Warranty	1 Year Manufacturer Warranty
Country of Origin	China
Compatible Surfaces	Drywall, plywood, concrete, plaster, tile



Key Features UNI-T UT387C Stud Sensor Wall Detector

• Three Detection Modes — Wood Stud mode (up to 38 mm), Deep Metal/Rebar mode (up to 76 mm), and AC Live Wire mode for complete wall scanning coverage.
• AC Wire Detection Safety — The device identifies live 50/60 Hz AC electrical wires behind walls before drilling, preventing dangerous electrical accidents on every job site.
• LED Bar + Audio Alert — A multi-segment LED indicator bar and audible beeping tone guide you to the exact center of any stud or object, removing all guesswork.
• Auto-Calibration Technology — The UT387C calibrates itself automatically against the wall surface, so every scan starts accurate without manual adjustment.
• Deep Scan Capability — Metal detection reaches 76 mm depth, making it effective on concrete walls, timber-framed structures, and thick plasterboard common in Bangladeshi construction.
• Ergonomic One-Hand Design — The compact, lightweight body fits comfortably in one hand, reducing user fatigue during extended scanning sessions on large walls UNI-T UT387C Stud Sensor Wall Detector
• Clear LCD Display — The backlit LCD screen shows detection mode status and signal strength in real time, even in low-light environments.
• Battery Indicator — A low-battery warning prevents unexpected shutdowns mid-project, ensuring reliability throughout the workday.



Frequently Asked Questions (FAQ) UNI-T UT387C Stud Sensor Wall Detector

Q1: What materials can the UNI-T UT387C detect behind walls?

The UT387C detects three types of hidden objects. It finds wood studs and joists in wood-framed walls up to 38 mm deep. It locates metal objects including steel pipes, rebar, and conduits up to 76 mm deep. It also identifies live AC electrical wires carrying 50 Hz or 60 Hz current up to 76 mm behind the wall surface UNI-T UT387C Stud Sensor Wall Detector

Q2: Does the UT387C work on concrete walls common in Bangladesh?

Yes. The deep metal and rebar detection mode specifically targets reinforced concrete construction. In Bangladesh, where RC-frame buildings dominate urban housing, the UT387C locates rebar positions accurately to depths of 76 mm, making it highly relevant for local construction conditions UNI-T UT387C Stud Sensor Wall Detector

Q3: How does the auto-calibration feature work?

When you press the detection mode button, the UT387C scans the wall surface at the starting position and sets that as the baseline reading. Subsequently, as you slide the device across the wall, it compares incoming readings against the baseline and triggers the LED and beeper when it detects a significant change indicating a stud or object beneath UNI-T UT387C Stud Sensor Wall Detector

Q4: Can a non-professional DIY user operate the UT387C?

Absolutely. The auto-calibration removes the need for manual setup. The LED bar indicator and audio beep provide clear, intuitive feedback that requires no technical training to interpret. Most users achieve reliable results after just one or two practice scans on a test area.

Q5: What battery does the UT387C use and how long does it last?

The UT387C uses one standard 9V battery (6F22 or 6LR61 type), widely available in Bangladesh. Battery life depends on usage frequency. The LCD screen displays a low-battery warning icon before the battery dies completely, giving you time to replace it before your next project.

Q6: Is the UNI-T UT387C suitable for tile and brick walls?

The UT387C works best on drywall, plywood, plaster, and similar smooth surfaces. On tile and brick walls, results vary depending on material density and surface irregularity. However, the metal and AC wire detection modes remain functional through these materials when the target is within the detection depth range.

Q7: What is the warranty on the UT387C from ASTZBD?

ASTZBD provides a 1-year manufacturer warranty on every UNI-T UT387C unit sold through the platform. The warranty covers manufacturing defects and functional failures under normal use conditions. ASTZBD also provides dedicated after-sales support throughout the warranty period. UNI-T UT387C Stud Sensor Wall Detector



Applications UNI-T UT387C Stud Sensor Wall Detector

Construction & Civil Engineering

Contractors use the UT387C to locate rebar and metal conduits inside reinforced concrete before coring or drilling. Moreover, civil engineers map structural members in load-bearing walls to plan safe anchor positions UNI-T UT387C Stud Sensor Wall Detector

Electrical Installation

Licensed electricians scan walls before chasing cable routes to avoid existing live circuits. The AC wire detection mode provides an essential safety check before every cut.

Interior Design & Furniture Mounting

Interior designers and carpenters locate wood studs to mount heavy shelving units, TV brackets, cabinets, and artwork securely. In addition, the wood mode confirms stud spacing for even load distribution.

Home Renovation & DIY

DIY enthusiasts across Bangladesh use the UT387C when installing air conditioners, bathroom fixtures, and partition walls. Because the device auto-calibrates, even first-time users achieve professional results.

Plumbing & HVAC

Plumbers identify metal water pipes and gas lines before cutting into walls. HVAC technicians similarly locate ductwork and brackets inside ceiling cavities.

Real Estate Inspection

Property inspectors use the UT387C to map hidden utilities and structural elements during pre-purchase building inspections, producing detailed reports for buyers and sellers.



Who Uses This UNI-T UT387C Stud Sensor Wall Detector

• Professional Construction Workers — Use daily on commercial and residential job sites to work faster and avoid costly mistakes during drilling and anchoring operations.
• Electricians & Electrical Contractors — Rely on the AC wire detection feature as a primary safety tool before installing new circuits, outlets, or cable trays.
• Carpenters & Interior Fitters — Locate studs with precision to mount cabinetry, shelving, and structural fixtures that carry significant loads.
• Civil Engineers & Site Supervisors — Map embedded rebar in concrete structures during renovation or structural alteration projects.
• Plumbers & Gas Technicians — Identify metal pipes before cutting wall openings to prevent water or gas leaks.
• DIY Home Renovators — Complete home improvement tasks safely and confidently without needing professional assistance for every small drilling job.
• Property Inspectors & Surveyors — Conduct thorough wall and ceiling surveys during building assessments and pre-sale inspections.
• Architects & Interior Designers — Verify wall compositions and stud layouts during space planning and furniture layout design.
