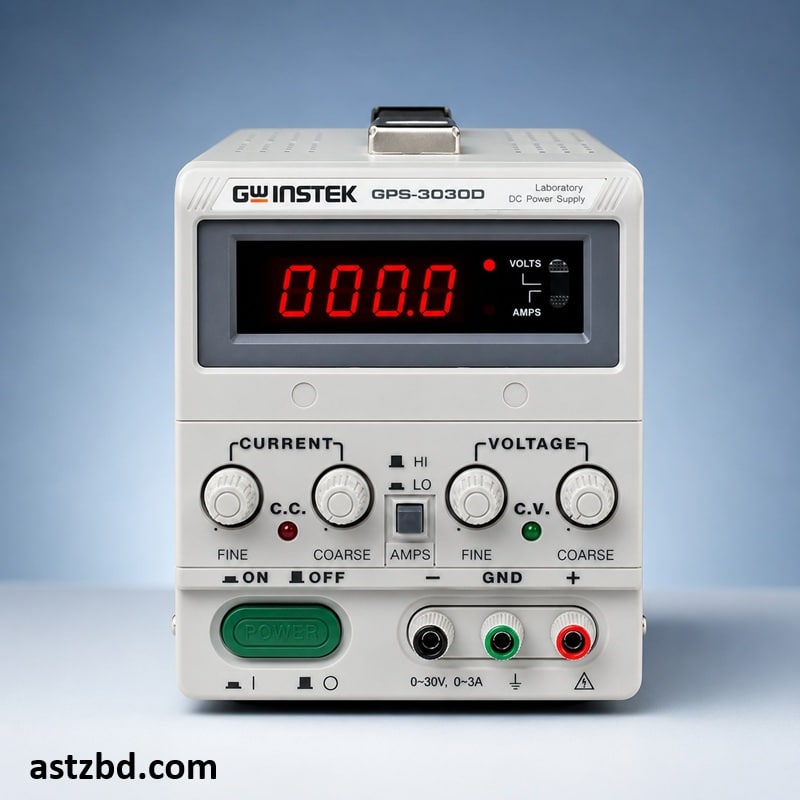

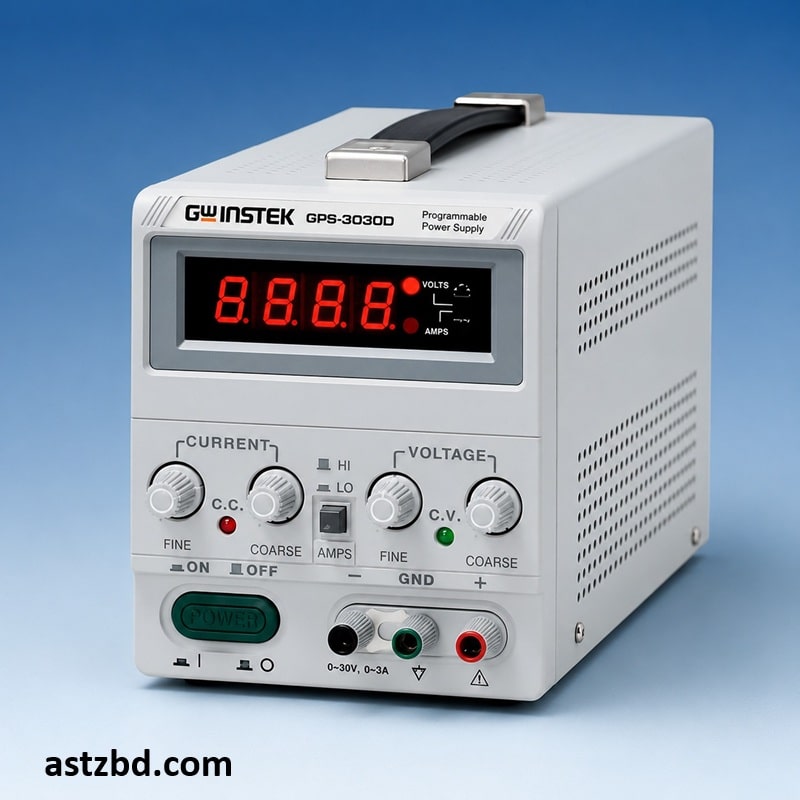

Introduction GW Instek GPS-3030D

The GW Instek GPS-3030D Linear DC Power Supply is engineered for professionals and students who demand precise, stable, and reliable DC power in laboratory and production environments. This 90W single-output power supply delivers a continuously adjustable output of 0–30V and 0–3A, making it the preferred instrument for electronics development, testing, and education. The GPS-3030D is trusted by engineers across Bangladesh and worldwide for its exceptional regulation performance, ultra-low ripple noise, GW Instek GPS-3030D Digital DC Power Supply is a high-precision 0–30V, 0–3A regulated linear power supply designed for laboratories, electronics repair, testing, and educational applications. It features digital voltage/current displays, Constant Voltage (CV) and Constant Current (CC) modes, low ripple output, and reliable overload protection for accurate and stable performance.

Specifications GW Instek GPS-3030D

DC OUTPUT
Output Voltage	0 ~ 30V (continuously adjustable)
Output Current	0 ~ 3A (continuously adjustable)
Maximum Output Power	90W
Number of Outputs	1 (Single Output)
CONSTANT VOLTAGE OPERATION
Line Regulation	≤0.01% + 3mV
Load Regulation (≤3A)	≤0.01% + 3mV
Ripple & Noise (≤3A)	≤0.5mVrms, 5Hz ~ 1MHz
Recovery Time	≤100μS (50% load change, min. load 0.5A)
Temperature Coefficient	≤300ppm/°C
Output Range	0 to rating voltage, continuously adjustable
CONSTANT CURRENT OPERATION
Line Regulation	≤0.2% + 3mA
Load Regulation	≤0.2% + 3mA
Ripple Current	≤3mArms
Output Range	0 to rating current, continuously adjustable (Hi/Lo range switchable)
DISPLAY & METERS
Analog Meter	V-meter and I-meter, 2.5 class, 50 × 50mm
Digital Display	3½ digit, 0.5″ LED display
Meter Accuracy	±(0.5% of reading + 2 digits)
PROTECTION
Overload Protection	Yes
Reverse Polarity Protection	Yes
INSULATION
Chassis to Terminal	≥20MΩ (DC 500V)
Chassis to AC Cord	≥30MΩ (DC 500V)
POWER SOURCE
AC Input Voltage	100V / 120V / 220V / 240V ±10%
AC Input Frequency	50 / 60Hz
PHYSICAL
Dimensions (W×H×D)	128mm × 145mm × 285mm
Weight	Approx. 5 kg
Chassis Material	Rugged metal housing
ACCESSORIES INCLUDED
User Manual	× 1
Power Cord	× 1
Test Lead	GTL-105A × 1 (≤3A) or GTL-104A × 1 (≤10A)
Optional	European Test Lead GTL-203A / GTL-204A



Key Features GW Instek GPS-3030D Linear DC Power Supply

1. Single output, 90W linear DC power supply
2. Output range: 0 to 30V and 0 to 3A, continuously adjustable
3. Dual display: 2.5-class analog meters (V + A) AND 3½-digit 0.5″ LED digital display
4. Ultra-low line regulation: ≤0.01% + 3mV for stable, precise output
5. Ultra-low ripple and noise: ≤0.5mVrms (5Hz–1MHz) for clean DC
6. Overload and reverse polarity protection for safe operation
7. Hi/Lo current range switch for flexible current control
8. Continuous or dynamic internal load selection for pulsed current applications
9. Remote control terminals for external programming and operation
10. Recovery time ≤100μS (50% load change, min. load 0.5A)
11. Temperature coefficient ≤300ppm/°C for stable performance
12. Universal AC input: 100V / 120V / 220V / 240V ±10%, 50/60Hz
13. Compact, rugged metal chassis: 128(W) × 145(H) × 285(D) mm

Applications GW Instek GPS-3030D

1. Electronics research and development (R&D) laboratories
2. Academic and university electronics labs in Bangladesh
3. PCB assembly, testing, and troubleshooting
4. Microcontroller, Arduino, and Raspberry Pi development and powering
5. Telecommunications equipment testing
6. Automotive electronics diagnosis and repair
7. Sensor, transducer, and actuator testing
8. LED driver and lighting circuit development
9. Battery charging research and simulation
10. Production line QC testing for consumer electronics
11. Pulsed current applications (dynamic internal load)



Who Uses This GW Instek GPS-3030D

1. Electronics Engineers & R&D Professionals
2. Development engineers use the GPS-3030D daily to power prototype circuits, test components, and validate designs. Its low ripple noise ensures measurement accuracy in sensitive RF and analog circuits.
3. University & Polytechnic Students
4. Students across Bangladesh’s engineering faculties rely on the GPS-3030D for lab practicals, project work, and final year projects. Its clear dual-display and intuitive controls accelerate the learning curve significantly.
5. Hobbyists & Makers
6. Hobbyists building DIY electronics, robotics projects, and home automation systems choose the GPS-3030D for its affordability, reliability, and professional-grade protection features.
7. Service Technicians
8. Electronics repair technicians use the GPS-3030D to simulate correct supply voltages during fault diagnosis of consumer electronics, mobile chargers, and industrial control boards.
9. Production & Quality Control Teams
10. Manufacturing QC teams use the GPS-3030D to conduct burn-in testing and verify that finished PCBs operate correctly within specified voltage and current limits before shipment.



Frequently Asked Questions (FAQ)

Q1: What is the maximum output power of the GW Instek GPS-3030D?

The GPS-3030D delivers a maximum output power of 90W, with an output voltage range of 0–30V and an output current range of 0–3A.

Q2: Does the GPS-3030D have both analog and digital displays?

Yes. The GPS-3030D features a 2.5-class analog V-meter and I-meter (50×50mm) alongside a 3½-digit 0.5″ LED digital display, giving users both a quick visual trend reading and a precise numeric readout simultaneously.

Q3: Does the GPS-3030D include overload protection?

Yes. The GPS-3030D includes both overload protection and reverse polarity protection, safeguarding the power supply and connected devices from accidental damage during testing.

Q4: Can the GPS-3030D accept Bangladesh’s standard AC supply (220V)?

Yes. The GPS-3030D accepts AC inputs of 100V, 120V, 220V, and 240V (±10%) at 50/60Hz. Bangladesh’s standard 220V/50Hz supply is fully compatible without any modification.

Q5: What does the Hi/Lo current range switch do?

The Hi/Lo current range switch allows users to select between a high-current range and a low-current range, enabling finer resolution and better control when working with sensitive low-current circuits.

Q6: Can the GPS-3030D operate under remote control?

Yes. Remote control terminals on the rear panel allow an external device — such as a computer or PLC — to program and control the output voltage and current remotely.

Q7: What is the ripple noise level of the GPS-3030D?

The GPS-3030D maintains an ultra-low ripple and noise level of ≤0.5mVrms across 5Hz to 1MHz (for currents ≤3A), making it suitable for noise-sensitive analog and RF applications.

Q8: Is the GPS-3030D available in Bangladesh with warranty?

Yes. ASTZBD supplies the GW Instek GPS-3030D in Bangladesh with an official manufacturer warranty. All units are genuine, tested, and ready to use right out of the box.
