Introduction Lutron DW-6163 Watt-Meter

The Lutron DW-6163 Watt Meter price in Bangladesh attracts engineers, technicians, and academic institutions who need professional-grade power measurement at a sensible cost. Lutron DW-6163 Watt-Meter Taiwan ASTZBD stocks this Taiwan-made digital watt meter so buyers across Bangladesh receive a genuine Lutron instrument with warranty and after-sales support. Lutron Electronics, a globally recognised Taiwanese instrument manufacturer, engineers the DW-6163 with a custom LSI microprocessor circuit that delivers reliable True RMS measurement up to 6000 W. The meter reads active power, AC voltage, AC current, and power factor on a single large dual-LCD display with backlight. Moreover, Lutron DW-6163 Watt-Meter Taiwan Lutron DW-6163 Watt-Meter Taiwan

Specifications Lutron DW-6163 Watt-Meter

LUTRON DW-6163 WATT METER — COMPLETE SPECIFICATIONS
GENERAL
Brand	Lutron
Model	DW-6163
Country of Origin	Taiwan
Circuit	Custom one-chip microprocessor LSI circuit
Display	Large LCD, max. reading 9999, digit size 21.8 × 8.5 mm
Display Type	Dual-value LCD with backlight
Sampling Time	Approx. 1 second
Data Hold	Freezes display reading
Memory Record	Maximum and Minimum value recall
Data Output	RS232 / USB PC computer interface
Zero Adjustment	Automatic
Over-Input Indication	“____” mark on display
Operating Temperature	0°C to 50°C (32°F to 122°F)
Power Supply	DC 9V battery (006P) or AC-to-DC 9V adapter
Low Battery Indicator	Built-in
Backlight	Built-in, easy night/low-light readout
ELECTRICAL SPECIFICATIONS (at 23°C ± 5°C)
WATT (True Power) Range	0 to 6000 W
WATT Resolution	1 W
WATT Accuracy	± (1% + 5 W)
ACV Range	0 to 600.0 V
ACV Resolution	0.1 V
ACV Accuracy	± (0.3% + 0.3 V)
ACA Range	0.01 to 10.00 A
ACA Resolution	0.01 A (10 mA)
ACA Accuracy	± (0.3% + 0.03 A)
Power Factor (PF) Range	0.01 to 1.00
PF Resolution	0.01
PF Accuracy	± (1% + 2d)
Measurement Type	True RMS for ACV and ACA
Frequency Response (ACV/ACA)	40 Hz to 400 Hz
Ranging	Full Auto Range
Max. AC Voltage Input	600 V
Max. AC Current Input	10 A
Signal Condition for Accuracy	Sine wave, 50/60 Hz

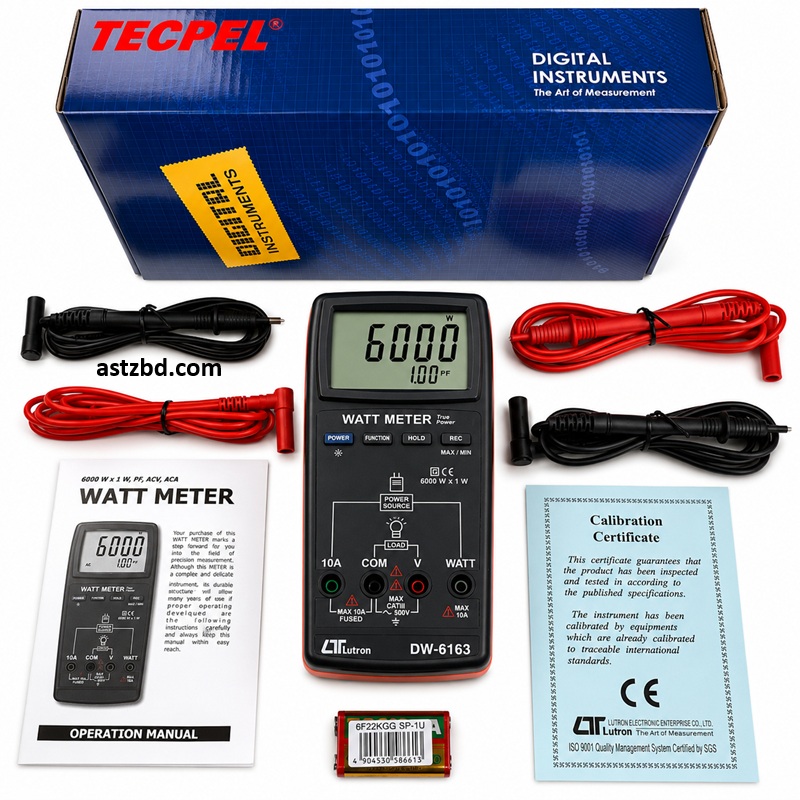

PACKAGE CONTENTS
Included	DW-6163 meter unit, test cords (red and black), user manual (English)
Optional Accessories	RS232 cable (UPCB-02), USB cable (USB-01)

Key Features Lutron DW-6163 Watt-Meter

• True RMS Measurement — the DW-6163 measures True RMS AC voltage and current, so it delivers accurate readings even on non-sinusoidal waveforms from variable-speed drives and switching power supplies.
• Wide Power Range 0–6000 W with 1 W Resolution — covers everything from small household appliances to heavy industrial loads, making this meter versatile across all sectors in Bangladesh.
• Simultaneous Dual LCD Display — users read two values at once (e.g., watts and voltage) without switching modes, which saves time during electrical diagnostics and energy audits.
• Full Auto Range — the meter selects the correct measurement range automatically, removing the need for manual range adjustment and reducing the risk of overload errors.
• Power Factor (PF) Measurement — directly measures PF from 0.01 to 1.00, allowing engineers to identify reactive power issues and recommend power factor correction.
• RS232/USB Computer Interface — connects to a PC via the optional UPCB-02 or USB-01 cable for real-time data logging and analysis, ideal for research and quality-control workflows.
• Memory Record (Max/Min) and Data Hold — captures peak and minimum values and freezes the display for convenient manual recording in busy field conditions.
• Built-in Backlight — the illuminated LCD ensures clear readout in dimly lit electrical panels, server rooms, and industrial enclosures.
• Built-in Low Battery Indicator — alerts the user before battery failure disrupts a measurement session Lutron DW-6163 Watt-Meter Taiwan.
• Professional LSI Circuit — the custom one-chip microprocessor LSI design provides long-term reliability and durability that meets the demands of daily professional use Lutron DW-6163 Watt-Meter Taiwan.

Applications Lutron DW-6163 Watt-Meter

• Lutron DW-6163 Watt-Meter Taiwan Electrical Engineering Labs — universities and polytechnics use the DW-6163 for power measurement experiments, power factor correction studies, and load analysis practicals.
• Energy Auditing — energy consultants measure actual power consumption and power factor of equipment in factories, commercial buildings, and offices across Bangladesh.
• Industrial Maintenance — plant engineers monitor motor and machinery power draw to detect overloading, inefficiency, and equipment degradation Lutron DW-6163 Watt-Meter Taiwan.
• HVAC and Air Conditioning — technicians measure compressor and fan power to verify equipment performance and troubleshoot high-energy-consumption issues.
• Electrical Contractor Work — contractors verify load balance and power factor at distribution boards during installation and commissioning.
• Research and Development — R&D laboratories log real-time power data via RS232/USB for prototype testing and product certification.
• Solar and Renewable Energy — solar installers measure inverter output power and power factor to verify system performance against design specifications.
• Government and Utility Inspections — BPDB and DESCO field teams use portable watt meters to verify metering accuracy and customer load compliance.
• Electronics Training Centres — trainers demonstrate real power, apparent power, and power factor concepts with live AC measurements.

Who Uses This

• Electrical Engineers in power generation, distribution, and industrial automation sectors across Bangladesh.
• Energy Auditors and Consultants who conduct ESCO assessments and energy efficiency studies.
• University and Polytechnic Faculty who need a reliable instrument for electrical engineering lab classes.
• Industrial Maintenance Technicians responsible for motor, HVAC, and machinery performance monitoring.
• Electrical Contractors performing load testing, commissioning, and compliance checks on commercial and industrial projects.
• R&D Engineers who require RS232/USB data logging for prototype power profiling.
• Government Technical Officers in BPDB, DESCO, REB, and BSTI who conduct field inspections and compliance testing.

Frequently Asked Questions (FAQ)

Q: What does the Lutron DW-6163 measure?

A: The Lutron DW-6163 measures AC power (WATT) from 0 to 6000 W, AC voltage (ACV) up to 600 V, AC current (ACA) up to 10 A, and power factor (PF) from 0.01 to 1.00 — all using True RMS measurement technology.

Q: Does the DW-6163 support computer data logging?

A: Yes. The instrument features a built-in RS232/USB interface. Buyers connect the optional RS232 cable (UPCB-02) or USB cable (USB-01) to transfer real-time measurement data to a PC for logging and analysis.

Q: What power supply does the Lutron DW-6163 use?

A: The DW-6163 runs on a DC 9V battery (006P type). Users can also power the instrument through an AC-to-DC 9V adapter for continuous bench or lab use without battery replacement.

Q: What is True RMS and why does it matter?

A: True RMS measurement calculates the actual effective value of an AC signal regardless of its waveform shape. Without True RMS, a meter gives inaccurate readings on loads driven by inverters, variable-frequency drives, or switching power supplies — which are common in Bangladesh’s industrial sector.

Q: What is the watt measurement accuracy of the DW-6163?

A: The DW-6163 measures AC power with an accuracy of ±(1% + 5 W) under sine-wave conditions at 50/60 Hz, tested at 23°C ± 5°C. ACV accuracy is ±(0.3% + 0.3 V) and ACA accuracy is ±(0.3% + 0.03 A).

Q: Does ASTZBD provide warranty for the Lutron DW-6163?

A: Yes. ASTZBD provides warranty coverage on every Lutron DW-6163 it sells. Buyers should contact ASTZBD at the time of purchase to confirm the current warranty terms and after-sales service process.

Q: Is the Lutron DW-6163 suitable for university lab use in Bangladesh?

A: Absolutely. The DW-6163’s simultaneous dual-display, Auto Range, True RMS measurement, and power factor readout make it an excellent instrument for undergraduate electrical and electronics engineering lab sessions.

Q: How long does delivery take in Bangladesh?

A: ASTZBD delivers within Dhaka in 1–2 business days. Orders to Chittagong, Sylhet, Rajshahi, Khulna, and other districts typically arrive within 2–5 business days via nationwide courier.
