Introduction Proceq OS8000 Schmidt Rebound Hammer
The Proceq OS8000 Schmidt Rebound Hammer redefines non-destructive concrete testing in Bangladesh and across the world. Proceq, the Swiss inventor of rebound hammer technology, built this device as the most advanced R-value hammer ever made. The OS8000 combines proven Original Schmidt mechanical precision with Proceq OS8000 Schmidt Rebound Hammer
Specifications Proceq OS8000 Schmidt Rebound Hammer
| PROCEQ OS8000 ORIGINAL SCHMIDT REBOUND HAMMER — FULL SPECIFICATIONS | |
| Model | OS8000 (Original Schmidt Live) |
| Manufacturer | Proceq / Screening Eagle Technologies, Switzerland |
| Hammer Type | Original Schmidt — R-value (classical rebound) |
| Available Types | Type N (standard) | Type L (low energy) |
| Compressive Strength Range (Type N) | 10 – 70 N/mm² (1,450 – 10,152 psi) |
| Compressive Strength Range (Type L) | 5 – 30 N/mm² (approximately) |
| Impact Energy (Type N) | 2.207 Nm (1.6 ft-lbs) |
| Impact Energy (Type L) | 0.735 Nm |
| Measurement Output | R-value (rebound number), Compressive Strength (N/mm²) |
| Angle Correction | Automatic — electronic sensor corrects for any impact angle |
| Display | Digital OLED display + analog mechanical scale |
| Connectivity | Bluetooth (to iOS & Android app and Bluetooth printer) |
| Mobile App | Proceq Original Schmidt Live — free on iOS and Android |
| Data Storage | On-device memory + secure cloud (via app) |
| Report Formats | PDF and CSV export from app |
| Standards Compliance | EN 12504-2, ASTM C805, BS 1881-202, IS 13311-2, JSCE, and others |
| Series Evaluation | Automatic outlier detection and exclusion per standard |
| Logbook Feature | GPS location, notes, audio, image attachments per series |
| Battery | Rechargeable lithium (works analog without battery) |
| Shell Material | Light, strong fiber-reinforced composite |
| Mechanical Components | Original Schmidt components — full standard compatibility |
| Operating Modes | Digital + app / Digital standalone / Print console / Analog |

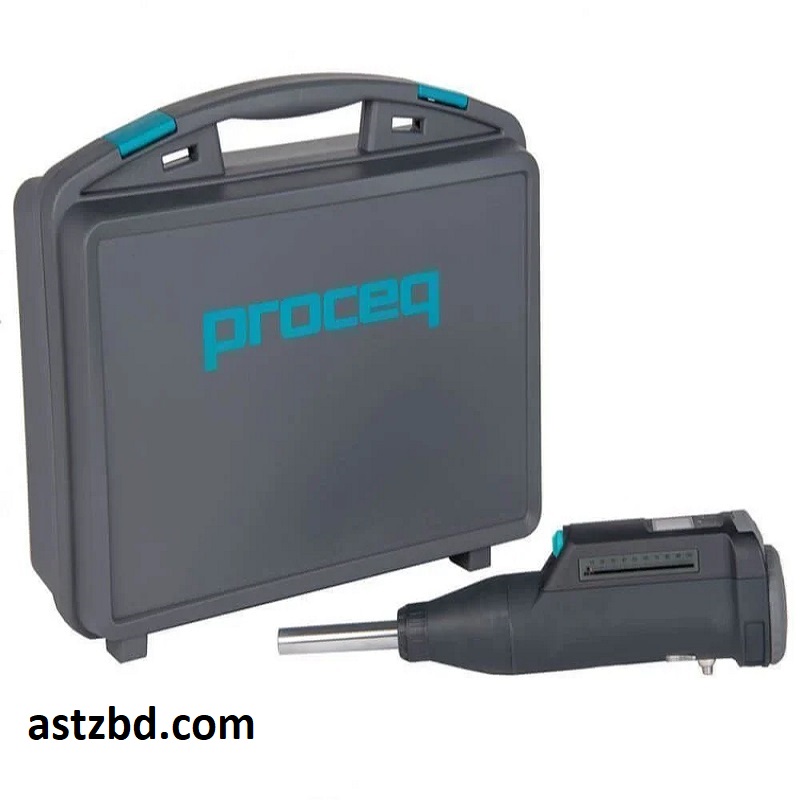

| Compatible Accessories | Testing anvil, Bluetooth printer, carrying case |
| Minimum Concrete Thickness | 100 mm (4 inches) for Type N |
| Maximum Aggregate Size (Type N) | 32 mm (1.25 inches) |
| Calibration | Testing anvil calibration per EN 12504-2 recommendation |
| Origin | Switzerland |
| Warranty | As per Proceq / Screening Eagle official policy |
Key Features Proceq OS8000 Schmidt Rebound Hammer
- Digitally enhanced Original Schmidt OS8000 — the world’s most advanced R-value concrete test hammer
- Automatic impact angle correction for any testing angle — eliminates manual correction lookup tables
- Free iOS and Android app with live series display, automatic outlier exclusion, and standard evaluation
- Cloud synchronization secures all measurement data instantly, preventing data loss
- Results and reports reach clients up to 80% faster compared to traditional analog hammers
- Operates as digital hammer, print console, standalone digital display, or pure analog mechanical hammer
- Light and strong fiber-reinforced shell houses all genuine Original Schmidt mechanical components
- On-device digital display shows live R-values, mean, series ID, and impact count
- Bluetooth wireless connection to printer for instant on-site report printing
- GPS location logging, notes, images, and audio attachments via the Logbook feature
- Export reports in PDF or CSV format directly from the field
- Compressive strength range: 10 – 70 N/mm² (1,450 – 10,152 psi) for Type N
Applications Proceq OS8000 Schmidt Rebound Hammer
- Compressive strength estimation of in-situ concrete in buildings, bridges, dams, and tunnels
- Formwork removal timing — test concrete maturity before stripping
- Uniformity assessment across large concrete surfaces
- Complement to core drilling — reduce the number of expensive cores by pre-screening with the hammer
- Structural assessment and condition surveys for existing buildings
- Pre-demolition structural evaluation and forensic investigation
Who Uses This
- Civil engineers and structural engineers on construction sites
- NDT (Non-Destructive Testing) technicians and quality control inspectors
- Government agencies: LGED, PWD, RHD, WASA, BWDB in Bangladesh
- Consultancy firms conducting structural audits and condition assessments
- Universities and research institutions studying concrete performance
- Construction companies verifying concrete quality before structural load application
- Bridge and infrastructure maintenance teams
- Forensic engineers investigating structural failures or disputes
- Paper mills for roll hardness and uniformity profiling
Frequently Asked Questions (FAQ) Proceq OS8000 Schmidt Rebound Hammer
Q1: What does the Proceq OS8000 Schmidt Rebound Hammer measure?
The OS8000 measures the rebound value (R-value) of concrete surfaces and converts it to estimated compressive strength in N/mm². Engineers use this data to assess concrete quality, uniformity, and adequacy without cutting or coring the structure.
Q2: Does the OS8000 require the mobile app to function?
No. The OS8000 operates in four independent modes. Engineers can use it as a fully digital Bluetooth hammer with the app, as a standalone digital hammer using only its built-in screen, as a Bluetooth print console, or as a traditional analog mechanical hammer without any battery at all.
Q3: Does the OS8000 automatically correct for testing angle?
Yes. The OS8000 includes an electronic angle sensor that automatically applies the correct impact angle correction for any direction of testing — horizontal, upward, downward, or any angle in between. This eliminates the manual lookup tables engineers must use with conventional hammers.
Q4: Which international standards does the OS8000 support?
The OS8000 supports EN 12504-2 (European), ASTM C805 (American), BS 1881-202 (British), IS 13311-2 (Indian), JSCE (Japanese), and several other national and international concrete testing standards selectable directly in the app.
Q5: What concrete compressive strength range does the OS8000 cover?
The Type N version covers 10 to 70 N/mm² (1,450 to 10,152 psi), which encompasses most structural concrete. Engineers select Type L for lower-strength concrete down to approximately 5 N/mm², such as early-age concrete during formwork removal decisions.
Q6: Can the OS8000 export test reports as PDF?
Yes. The Proceq Original Schmidt Live app exports complete test series reports as PDF or CSV files directly from the smartphone. Engineers send these reports to clients or project managers from the job site instantly without returning to the office.
Q7: How does ASTZ BD support buyers in Bangladesh?
ASTZ BD provides pre-purchase consultation to select the correct model, app setup and training, calibration check guidance using the testing anvil, warranty registration assistance, and ongoing technical support. ASTZ BD also connects customers to the Proceq / Screening Eagle regional service network for calibration and repair when required.
Why Buy from ASTZ BD
- Authorized dealer — ASTZ BD supplies genuine Proceq OS8000 Schmidt Rebound Hammer directly sourced from Screening Eagle Technologies
- Official warranty — every unit carries the manufacturer’s warranty with ASTZ BD as the local service point
- Expert technical support — our engineers provide installation guidance, calibration assistance, and app setup training
- Fast delivery — Dhaka warehouse stock available for immediate dispatch across Bangladesh
- Competitive pricing — ASTZ BD offers the best market price for the Proceq OS8000 Schmidt Rebound Hammer in Bangladesh
- After-sales service — ASTZ BD provides ongoing calibration, repair referral, and spare parts assistance
- Trusted by government agencies — LGED, PWD, BWDB, and major private consultancies rely on equipment from ASTZ BD
- Complete solution — ASTZ BD supplies the full Proceq NDT portfolio including GPR scanners, rebar cover meters, and ultrasonic testers
- Transparent invoicing — formal VAT invoices for all government tender compliance
- Local knowledge — ASTZ BD team understands Bangladesh construction standards and helps engineers choose the right tool
