Description

Introduction RE100-S LED Digital Rotary Evaporator

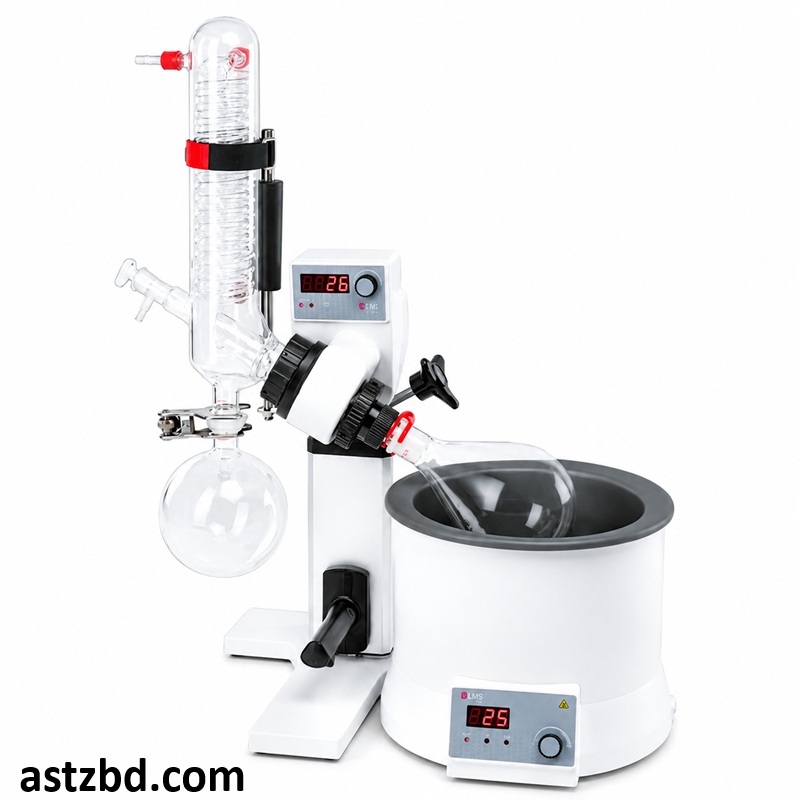

The RE100-S LED Digital Rotary Evaporator handles evaporation, distillation, and separation tasks inside a single compact unit. Chemists load a sample flask, set the bath temperature, and let the machine rotate the solution to build a thin film for fast, even vaporization. A brushless DC motor drives the rotation smoothly, and the LED display shows speed, temperature, and time at a glance. Researchers pair this rotary evaporator with a vacuum pump or a low-temperature circulator to build a complete distillation system. The unit suits pharmaceutical labs, university research centers, and food-testing facilities across Bangladesh that need dependable solvent recovery RE100-S LED Digital Rotary Evaporator

Specifications RE100-S LED Digital Rotary Evaporator

Parameter	Specification
Model	RE100-S
Motor Type	Brushless DC Motor
Speed Range	20–200 rpm
Rotation Direction	Clockwise & Counterclockwise
Display	LED Display (Speed, Temperature & Time)
Heating Bath Capacity	5 L
Heating Temperature Range	Room Temperature to 180°C
Temperature Control Accuracy	Water: ±1°C / Oil: ±3°C
Heating Power	1200 W
Overheating Protection	220°C
High Temperature Warning	Above 50°C
Boil-Dry Protection	Automatic Power-Off
Lift Type	Manual Lift (110 mm) + Auxiliary
Timer Range	1–999 Seconds
Condenser Type	Patented Vertical or Diagonal (Selectable)
Condensing Area	1200 cm² or 1700 cm²
Sealing System	PTFE Double Spring Sealing Ring
Standard Glassware	1000 mL Evaporating Flask, 1000 mL Receiving Flask, Vertical Condenser
Main Unit Dimensions	440 × 320 × 450 mm
Heating Bath Dimensions	300 × 300 × 240 mm
Compatibility	Full RE100-Pro Glassware Series
Optional Accessories	Vacuum Pump, Vacuum Controller, Low-Temperature Circulator, Explosion-Proof Glassware Film

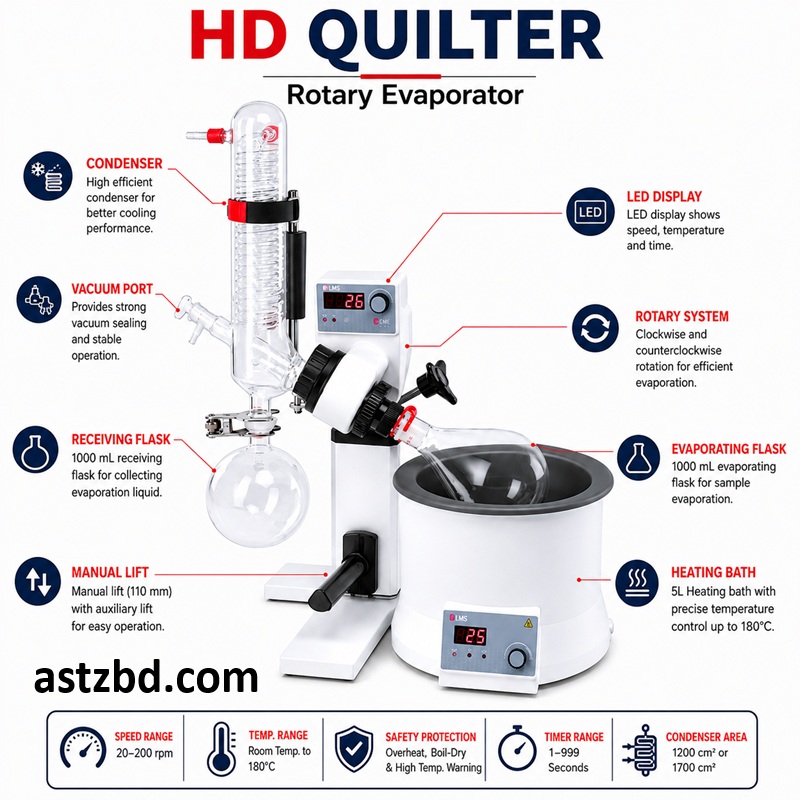

Key Features RE100-S LED Digital Rotary Evaporator

• The 5L heating bath covers a wide range from room temperature to 180°C, and it runs independently from the rest of the
• A single switch changes the bath between water and oil heating modes.
• PID control holds the water bath temperature within ±1°C for consistent results.
• Boil-dry protection shuts the heater off automatically when the bath runs without water or oil.
• Overheat protection activates at 220°C, and the display warns users once bath temperature passes 50°C.
• The brushless DC motor rotates flasks from 20 to 200 rpm in either clockwise or counterclockwise direction.
• A patented condenser (1200 cm² or 1700 cm²) speeds up liquid flow and improves cooling efficiency.
• The ejection mechanism lets technicians swap evaporating flasks quickly between runs.
• A manual lift combines with an auxiliary lift to position glassware with precision.
• The PTFE double spring sealing ring blocks leaks and resists a wide range of chemicals.
• The condenser tilts to an adjustable immersion angle for different flask sizes.
• The system accepts the full RE100-Pro glassware range, including optional explosion-proof film.



 Applications RE100-S LED Digital Rotary Evaporator

• Organic synthesis and reaction workup in chemistry labs
• Solvent removal and recovery in pharmaceutical R&D
• Concentration of plant and herbal extracts
• Natural product and essential oil extraction
• Food and beverage testing laboratories
• Traditional medicine and generic drug production
• Academic and university teaching laboratories
• Quality control testing in industrial facilities

Who Uses This RE100-S LED Digital Rotary Evaporator

1. Pharmaceutical companies rely on it for solvent recovery during drug formulation.
2. University and research labs use it to teach distillation and separation techniques.
3. Food and beverage testers apply it to concentrate samples
4. before analysis.
5. Herbal and natural product manufacturers extract active compounds with it.
6. Quality control departments run routine solvent removal checks with this evaporator.
7. Chemical manufacturers use it for process development and small-batch purification.



Frequently Asked Questions (FAQ) RE100-S LED Digital Rotary Evaporator

Q1: What does the RE100-S LED Digital Rotary Evaporator do? It evaporates, distills, and separates chemical solutions through controlled heating and rotation under reduced pressure.

Q2: How large is the heating bath? The bath holds 5 liters and heats from room temperature up to 180°C.

Q3: Can I switch between water and oil heating? Yes, a single switch changes the bath between water mode and oil mode.

Q4: Does the unit protect against dry heating? Yes, the boil-dry protection feature powers the heater off automatically if the bath runs without liquid.

Q5: What speed range does the rotation motor support? The brushless DC motor rotates flasks between 20 and 200 rpm in both directions.

Q6: Which glassware fits this evaporator? It accepts the entire RE100-Pro glassware range, including 1200 cm² and 1700 cm² condensers.

Q7: Does astzbd provide installation support in Bangladesh? Yes, astzbd delivers, sets up, and demonstrates the unit at your facility across Bangladesh.

Q8: What accessories work with the RE100-S? A vacuum pump, vacuum controller, and low-temperature circulator all pair with this evaporator for complete distillation workflows.
