Description

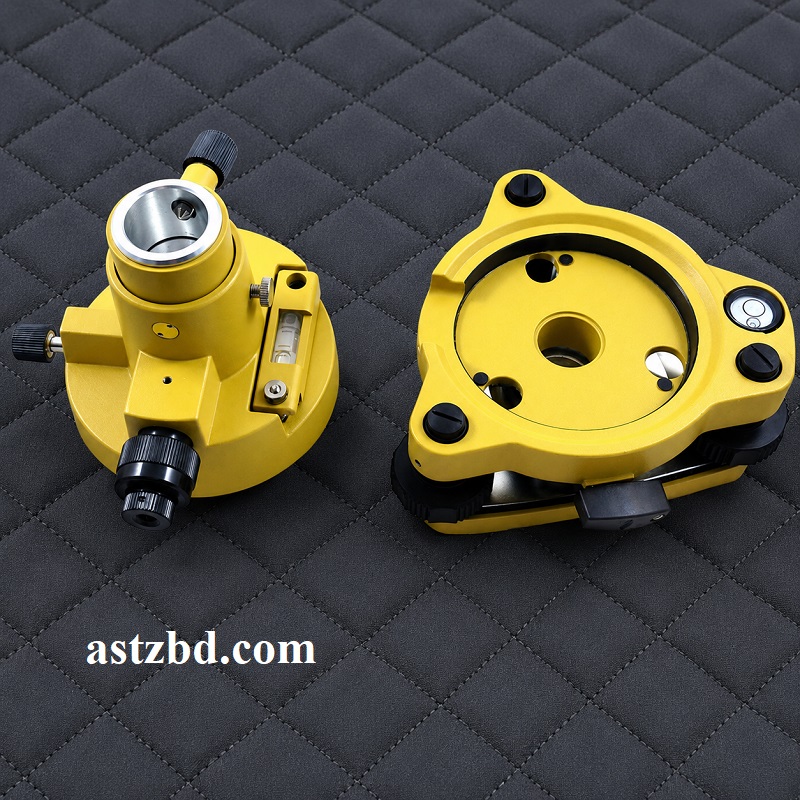

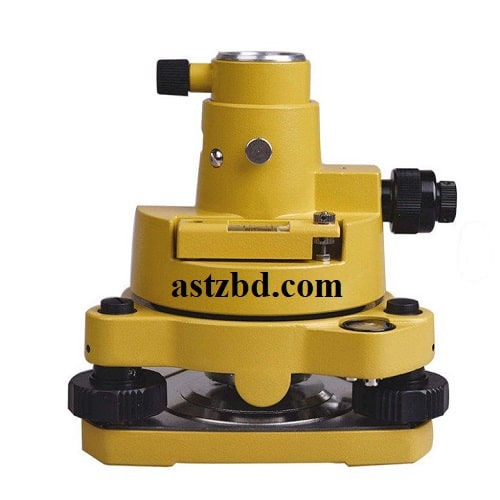

Introduction Tribrach with Adaptor

The tribrach with adaptor stands as the most essential leveling accessory for any professional surveying setup. ASTZBD brings this precision instrument to Bangladesh’s growing geospatial and construction industry. Surveyors, engineers, and GIS professionals rely on this robust base to achieve accurate horizontal alignment for their total stations, theodolites, GPS receivers, and optical instruments. The tribrach body features three adjustment screws and a high-sensitivity circular bubble that delivers rapid, repeatable leveling on any terrain. The included adaptor expands compatibility across major instrument brands, Tribrach with Adaptor

Specifications Tribrach with Adaptor

Product Name	Tribrach with Adaptor
Leveling Screws	3 aluminum alloy foot screws with smooth rotation
Circular Bubble Sensitivity	8′ / 2mm
Plumb Accuracy	Optical plummet with crosshair reticle, ±1mm at 1.5m
Tribrach Thread	5/8″ × 11 UNC standard thread (fits most brands)
Adaptor Type	Quick-release push-button adaptor
Adaptor Compatibility	Leica, Topcon, Sokkia, South, Hi-Target, Trimble
Body Material	Die-cast aluminum alloy with anti-corrosion coating
Weight (Tribrach + Adaptor)	Approx. 700g – 850g
Plate Level Accuracy	30″ / 2mm
Centering Range	Optical plummet, centering accuracy ≤0.5mm
Tripod Connector	Standard 5/8″ × 11 female thread
Carrying Case	Included protective hard case
Color	Yellow / White (instrument brand dependent)
Warranty	1 Year (ASTZBD Bangladesh)



Key Features



1. Optical Plummet Centering—The built-in optical plummet provides precise vertical alignment over a ground point with centering accuracy under 0.5mm, eliminating guesswork during instrument setup.

2. Quick-Release Adaptor System—The push-button quick-release mechanism allows users to swap instruments in seconds without disturbing the tribrach’s leveled position, saving time on multi-point setups.

3. Universal Brand Compatibility—The 5/8″ × 11 UNC thread and dedicated adaptor plate ensure compatibility with Leica, Topcon, Sokkia, South, Hi-Target, and other popular total station brands used in Bangladesh.

4. Durable Aluminum Alloy Body—The die-cast aluminum alloy construction resists corrosion and mechanical stress, maintaining structural rigidity even during long fieldwork sessions in Bangladesh’s humid climate.

5. High-Sensitivity Bubble Level—The circular bubble level with 8′ / 2mm sensitivity delivers fast coarse leveling, while the plate level enables fine adjustment for precise instrument orientation.

6. Smooth Three-Screw Adjustment—Three precision foot screws provide balanced, drag-free leveling motion, allowing surveyors to achieve stable horizontal alignment quickly on uneven or soft ground surfaces.



Applications

1. Land Surveying
2. Road & Highway Engineering
3. Building Construction Layout
4. Boundary Demarcation
5. Topographic Mapping
6. GPS / GNSS Base Station Setup
7. Bridge & Infrastructure Survey
8. Utility & Pipeline Layout
9. GIS Data Collection
10. Mining & Earthwork Survey
11. River & Flood Plain Mapping
12. Academic & Training Use



Who Uses This

1. Land Surveyors—Professionals conducting cadastral and topographic surveys across Bangladesh use the tribrach daily for stable instrument positioning.

2. Civil Engineers—Site engineers use this base for total station and theodolite setups during construction stakeout and alignment work.

3. GIS Specialists—GIS professionals mount GPS receivers on the tribrach adaptor during field data collection campaigns.

4. Government Agencies—Survey of Bangladesh, LGED, PWD, and RAJUK teams use standard tribrachs on all benchmark-based fieldwork.

5. Academic Institutions—Engineering and geomatics departments at BUET, CUET, and district polytechnics use tribrachs for student field training.

6. Private Survey Firms—Survey companies managing housing projects, road design, and utility corridors rely on this accessory for daily operations.



Frequently Asked Questions(FAQ)

Q1: What is a tribrach with adaptor used for in surveying? A tribrach with adaptor serves as the leveling base that connects a surveying instrument — such as a total station, theodolite, or GPS receiver — to a tripod. The tribrach levels the instrument horizontally over a ground point, and the adaptor allows the user to detach and reattach the instrument quickly without disturbing the level and centering Tribrach with Adaptor .

Q2: Does this tribrach fit Leica, Topcon, and South total stations? Yes. The tribrach with adaptor from ASTZBD uses the universal 5/8″ × 11 UNC thread interface. The included adaptor plate fits Leica, Topcon, Sokkia, South, Hi-Target, and most other major total station brands available in the Bangladesh market.

Q3: What is the centering accuracy of the optical plummet? The optical plummet on this tribrach achieves a centering accuracy of ≤0.5mm at a standard instrument height of 1.5m. This level of accuracy meets the requirements for precision cadastral, engineering, and control surveys.

Q4: Can I use this tribrach with a GPS or GNSS receiver? Yes. GPS and GNSS receivers use the same standard 5/8″ × 11 thread for tripod mounting. The adaptor accepts GPS receiver bases from Hi-Target, South, Trimble, and other brands. This makes the tribrach with adaptor a versatile tool for both optical and satellite-based surveying. Tribrach with Adaptor Features for Precision Total Station & GPS Surveying Tribrach with Adaptor

Q5: What warranty does ASTZBD offer on this product? ASTZBD provides a 1-year local warranty on all tribrach with adaptor units sold in Bangladesh. Warranty service takes place within Bangladesh, so customers do not need to send instruments abroad for any defect-related repairs or adjustments.



Why Buy from ASTZBD high precision surveying tribrach

1. Genuine Products—ASTZBD sources tribrach with adaptor units directly from verified manufacturers, ensuring every unit meets industry accuracy and durability standards.

2. Bangladesh Warranty—Buyers receive a full 1-year local warranty, with service handled directly in Bangladesh — no sending units abroad for repairs.

3. Expert Technical Support—The ASTZBD team includes trained surveying instrument specialists who assist customers with calibration, compatibility questions, and field setup guidance.

4. Fast Nationwide Delivery—ASTZBD delivers across Dhaka and all Bangladesh districts through trusted courier partners, with same-day dispatch on orders placed before 12 PM.

5. Competitive Pricing—ASTZBD offers the best price for tribrach with adaptor in Bangladesh without compromising on product authenticity or service quality.

6. Trusted by Professionals—Government agencies, private firms, and academic institutions across Bangladesh trust ASTZBD as their preferred surveying instrument supplier.
