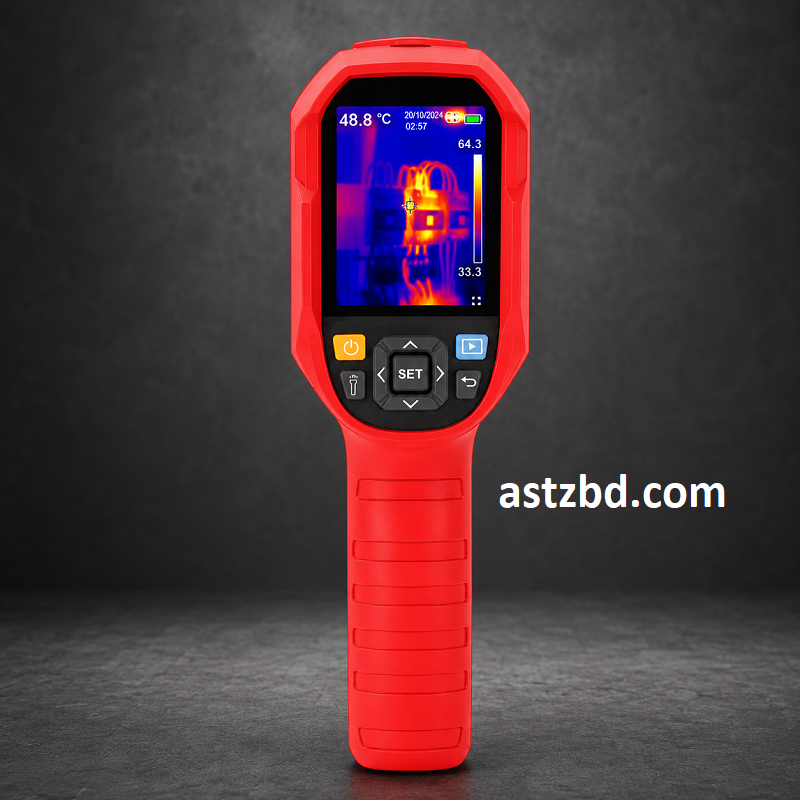

Introduction UNI-T UT260E Thermal Imager 256×192 Infrared Camera
The UNI-T UT260E Thermal Imager 256×192 Infrared Camera redefines professional thermal inspection for engineers, technicians, and maintenance specialists. This powerful handheld device combines cutting-edge infrared imaging technology with an intuitive user interface, UNI-T UT260E Thermal Imager 256×192 Infrared Camera UNI-T UT260E Thermal Imager 256×192 Infrared Camera
Specifications UNI-T UT260E Thermal Imager 256×192 Infrared Camera
| Category | Specification | Details |
|---|---|---|
| Infrared (Thermal) Camera | IR Resolution | 256 × 192 pixels (49,152 pixels) |
| Frame Rate | 25Hz | |
| Thermal Sensitivity (NETD) | ≤50mK (at 25°C) | |
| Field of View (FOV) | 50° × 38° | |
| Spatial Resolution (IFOV) | 3.4mrad | |
| Focus | Focus-Free (Fixed Focus) | |
| Spectral Range | 8μm – 14μm | |
| Temperature Measurement | Measurement Range | −20°C to 550°C (−4°F to 1022°F) |
| Accuracy | ±2°C or ±2% (whichever is greater) | |
| Measurement Modes | Center Point, Hot Spot Auto, Cold Spot Auto, Custom ROI | |
| Isotherm Function | Yes — custom limit temperature | |
| Emissivity | Adjustable (0.01–1.00) | |
| Visible Light Camera | Visual Camera Resolution | 2MP (2,000,000 pixels) |
| Image Modes | Thermal, Visible Light, Fusion, Picture-in-Picture (PIP) | |
| Display | Screen Size | 3.5 inches |
| Display Resolution | 320 × 240 pixels | |
| Display Type | Color TFT LCD | |
| Image & Color | Color Palettes | 7 — Iron Red, Rainbow, White Hot, Black Hot, Red Hot, HC Rainbow, Lava |
| Image Format | BMP / JPEG | |
| Storage Media | Micro SD Card (up to 16GB, not included) | |
| Power & Battery | Battery Type | Li-ion Rechargeable, 3.6V / 5000mAh |
| Operating Time | ≥6 hours continuous use | |
| Charging Interface | Type-C USB | |
| Charging Input | 5V / 1A | |
| Connectivity & Storage | PC Software | Yes — Windows compatible analysis software |
| Data Transfer | Type-C USB cable to PC | |
| Wireless | N/A | |
| Dimensions | Product Size | 236mm × 75mm × 86mm (9.3″ × 2.9″ × 3.3″) |
| Weight | Approx. 460g (with battery) | |
| Tripod Mount | 1/4 inch standard | |
| LED Flashlight | Built-in | |
| Language | Multilingual menu support | |
| Environmental Conditions | Operating Temperature | −15°C to 50°C |
| Storage Temperature | −20°C to 60°C | |
| Humidity | 10%RH to 90%RH (non-condensing) | |
| Box Contents | In The Box | 1× UT260E Thermal Imager, 1× Li-ion Battery, 1× Type-C USB Cable, 1× Wrist Strap, 1× Lens Cap, 1× Carrying Pouch, 1× User Manual, PC Software (CD or download) |
Key Features UNI-T UT260E Thermal Imager 256×192 Infrared Camera
- 256×192 infrared resolution — 49,152 pixels for high-detail thermal imaging
- 25Hz real-time frame rate for smooth, live thermal video
- Wide temperature range: −20°C to 550°C (−4°F to 1022°F)
- Thermal sensitivity (NETD) ≤50mK — detects tiny temperature differences
- 5-inch color TFT LCD display (320×240 pixels) for crisp image viewing
- 2MP visible light camera with dual-lens fusion and PIP imaging modes
- 7 selectable color palettes: Iron Red, Rainbow, White Hot, Black Hot, Red Hot, HC Rainbow, Lava
- Center point measurement, automatic hot/cold spot tracking, and isotherm analysis
- Image storage via Micro SD card (supports up to 16GB)
- Built-in LED flashlight for working in dark environments
- Type-C USB charging and PC data transfer
- 6V / 5000mAh Li-ion rechargeable battery — 6+ hours continuous operation
Applications UNI-T UT260E Thermal Imager 256×192 Infrared Camera
- Electrical panel hotspot detection and preventive maintenance
- PCB (printed circuit board) thermal diagnosis and fault finding
- Motor, transformer, and switchgear temperature monitoring
- UPS and battery bank thermal inspection
- HVAC duct leak detection and airflow verification
- Floor heating system inspection
- Building envelope thermal bridging and insulation assessment
- Moisture intrusion and water leak detection through walls and ceilings
Who Uses This UNI-T UT260E Thermal Imager 256×192 Infrared Camera
- Electrical engineers and maintenance technicians performing preventive inspections
- HVAC engineers diagnosing heating, cooling, and ventilation system issues
- Building inspectors and energy auditors assessing insulation performance
- Electronics repair professionals troubleshooting PCBs and circuit components
- Industrial maintenance teams monitoring rotating equipment and machinery
- Solar energy system installers and EPC contractors testing panel efficiency
- Research and development engineers requiring precision thermal data
Frequently Asked Questions (FAQ) UNI-T UT260E Thermal Imager 256×192 Infrared Camera
Q: What is the infrared resolution of the UNI-T UT260E Thermal Imager?
A: The UNI-T UT260E Thermal Imager delivers a 256×192 infrared resolution, producing 49,152 individual thermal measurement points per frame. This high pixel count enables detailed, sharp thermal images for precision diagnostics.
UNI-T UT260E Thermal Imager 256×192 Infrared Camera
Q: What temperature range does the UT260E measure?
A: The UNI-T UT260E measures temperatures from −20°C to 550°C (−4°F to 1022°F). This wide range makes the camera suitable for applications from cold-storage inspection all the way to high-temperature industrial processes.
Q: Does the UT260E have a visible light camera?
A: Yes. The UT260E includes a built-in 2MP visible light camera. Users can switch between four display modes: pure thermal, visible light, image fusion, and picture-in-picture (PIP). These modes provide full contextual clarity during inspections.
Q: How long does the battery last on a single charge?
A: The UNI-T UT260E runs on a 3.6V / 5000mAh rechargeable Li-ion battery. On a full charge, the camera provides over 6 hours of continuous operation. The device charges via a standard Type-C USB cable.
Q: Can I save thermal images and analyze them on a PC?
A: Yes. The UT260E stores thermal images on a Micro SD card (up to 16GB). Users can transfer saved images to a Windows PC via the Type-C USB cable and open them in the included PC analysis software for deeper reporting and review.
