Introduction UNI-T UTD4302C 300MHz digital oscilloscope

The UNI-T UTD4302C digital storage oscilloscope stands out as one of the most capable instruments in the UTD4000C series. Engineers across Bangladesh and beyond choose this UNI-T UTD4302C digital storage oscilloscope for its combination of 300MHz bandwidth, an impressive 2GS/s real-time sample rate, and a 50GS/s equivalent sample rate — all packed into a single desktop chassis that also houses a 16-channel logic analyzer and a 3½-digit multimeter.

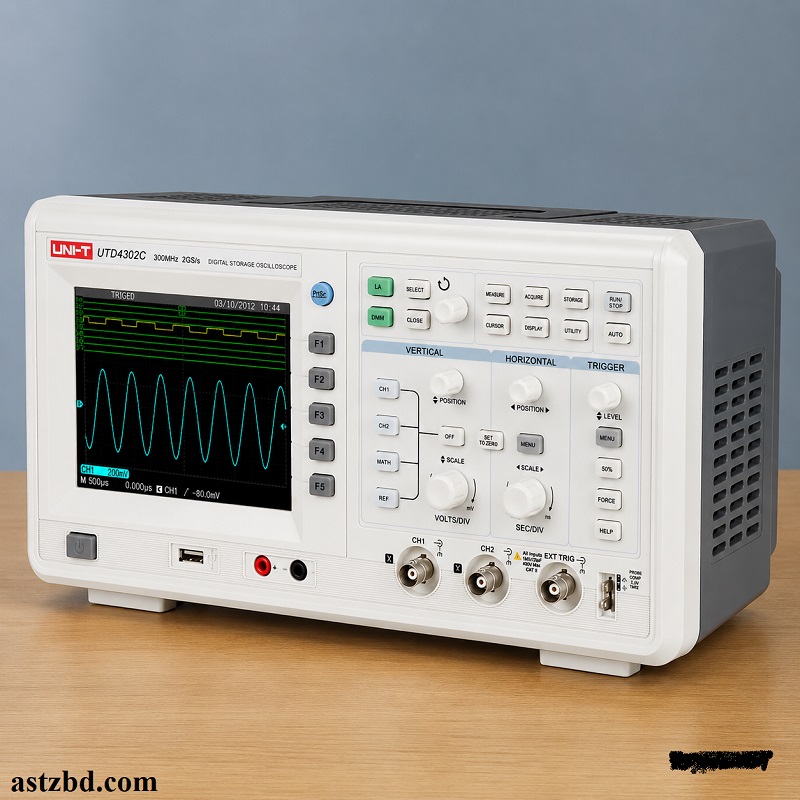

UNI-T designed the UTD4302C with user-friendliness at its core. The front panel arranges all major controls with clear labeling, so operators access every basic function without hunting through menus. The 5.7-inch high-contrast color LCD renders waveforms sharply even under bright lab lighting. A unique envelope sampling mode lets users see carrier-wave detail after amplitude modulation at a glance, and the quick waveform color-change function visually indicates waveform strength — a capability that separates this instrument from basic-grade oscilloscopes.



Specifications 300MHz dual channel oscilloscope

Vertical System

Parameter	Specification
Bandwidth	300 MHz
Channels	2 Analog Channels
Vertical Sensitivity	2 mV/div – 5 V/div
Rise Time	≤ 1.8 ns
Input Impedance	1 MΩ ± 2% || 15 pF ± 3 pF
Max Input Voltage	300 V (CAT II)
DC Accuracy	± 3%

Horizontal System

Parameter	Specification
Real-Time Sample Rate	2 GSa/s (single channel) / 1 GSa/s (dual channel)
Equivalent Sample Rate	50 GSa/s
Memory Depth	1,024 k points
Time Base Range	1 ns/div – 50 s/div
Time Base Accuracy	± 50 ppm

Trigger System

Parameter	Specification
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Trigger Sources	CH1, CH2, EXT, EXT/5, AC Line
Trigger Level Range	± 6 divisions from center

Display

Parameter	Specification
Display Type	5.7-inch Color LCD (TFT)
Resolution	320 × 240 pixels
Color Depth	64K colors

Math & Measurements

Parameter	Specification
Auto Measurements	27 types
Math Functions	Add, Subtract, Multiply, Divide, Reverse, FFT
Cursor Measurement	Manual & Track modes

Interfaces & General

Parameter	Specification
Interfaces	USB Device, USB Host, LAN, GPIB, Pass/Fail
Logic Analyzer	16 channels (UT-P06 probe included)
Digital Multimeter	3½ digits
Power Supply	100–240 V AC, 45 Hz–440 Hz, CAT II
Dimensions	330 × 165 × 165 mm
Weight	3.8 kg (net) / 6.4 kg (gross)
Warranty	24 months



Key Features 300MHz dual channel oscilloscope

1. 300MHz bandwidth with a 2GS/s real-time and 50GS/s equivalent sampling rate for high-frequency signal capture
2. Dual analog input channels deliver simultaneous two-signal measurement at full bandwidth
3. Integrated 16-channel logic analyzer enables mixed-signal debugging without a separate instrument
4. Built-in 3½-digit digital multimeter adds voltage, current and resistance measurement capability
5. 7-inch color LCD (320×240 resolution, 64K colors) produces bright and sharp waveform display
6. 27 automatic measurements cover frequency, period, rise time, fall time, amplitude, RMS, and more
7. Unique envelope sampling mode reveals carrier-wave detail after amplitude modulation instantly
8. Quick waveform acquisition and color-change function visually describes waveform signal strength
9. Dual time base function enables unrivaled waveform detail observation and comparative analysis
10. Built-in FFT and full math functions — Add, Subtract, Multiply, Divide, Reverse

Applications UTD4302C price in Bangladesh

1. Electronics R&D and circuit design validation
2. PCB-level troubleshooting and fault diagnosis
3. Production line quality control and Pass/Fail testing
4. Embedded system and microcontroller debugging via logic analyzer
5. Automotive ECU and sensor signal analysis
6. Telecommunications equipment testing, UNI-T UTD4302C 300MHz digital oscilloscope
7. Power electronics and switching power supply design
8. University and vocational electronics education and training
9. Biomedical equipment maintenance and testing
10. RF and high-frequency circuit characterization up to 300MHz

Who Uses This UNI-T UTD4302C 300MHz digital oscilloscope

1. Electronics engineers and R&D professionals needing high-bandwidth signal measurement
2. PCB designers and hardware developers who debug complex digital and analog circuits
3. Production and quality engineers running automated Pass/Fail tests on assembly lines
4. Embedded system developers who require a mixed-signal oscilloscope with logic analyzer
5. Automotive technicians diagnosing ECU, sensor and CAN-bus signals
6. University professors and lab instructors teaching signal measurement techniques
7. Electronics students performing practical lab experiments, UNI-T UTD4302C 300MHz digital oscilloscope
8. Service and maintenance engineers in telecommunications and power-electronics industries

Why Buy from ASTZ UNI-T oscilloscope with logic analyzer

1. 100% genuine UNI-T products — ASTZ sources directly from the official UNI-T distribution chain
2. Competitive pricing with flexible payment options for customers across Bangladesh
3. Fast nationwide delivery service reaches Dhaka and all major cities within the shortest possible time
4. Dedicated pre-sales and after-sales technical support team helps customers select and operate the right instrument
5. Official warranty support backed by UNI-T’s 24-month manufacturer guarantee UNI-T UTD4302C 300MHz digital oscilloscope
6. ASTZ stocks accessories, probes, and replacement parts so customers get full instrument lifecycle support
7. Trusted by hundreds of engineers, universities, and production companies across Bangladesh

Frequently Asked Questions (FAQ) digital storage oscilloscope 2GS/s

Q1: Does the UNI-T UTD4302C digital storage oscilloscope include a logic analyzer?

Yes. The UTD4302C bundles a 16-channel logic analyzer and ships with the UT-P06 logic analyzer probe. Users run mixed-signal debugging — simultaneous analog and digital capture — on one instrument.

Q2: What is the bandwidth and sampling rate of the UTD4302C?

The UTD4302C operates at 300MHz analog bandwidth. The real-time sampling rate reaches 2GSa/s on a single channel and 1GSa/s when both channels are active. The equivalent sampling rate extends to 50GSa/s for repetitive signals. UNI-T UTD4302C 300MHz digital oscilloscope

Q3: Can users connect the UTD4302C to a PC?

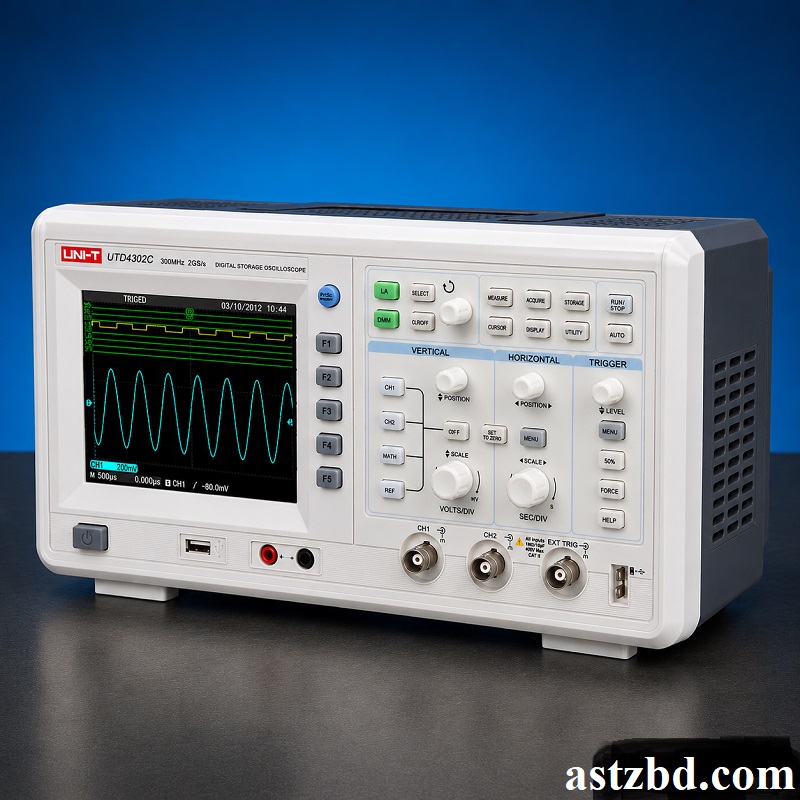

Yes. The oscilloscope provides both USB Device and LAN interfaces for PC communication. Engineers transfer waveform data, capture screenshots, and perform remote control from a computer. ASTZ includes the software installation guide in the package.

Q4: Does the UTD4302C support USB storage devices?

Yes. The USB Host port accepts plug-and-play USB drives. Users save waveform data, screenshots, and settings directly to a USB drive without any additional software. The same USB port enables system firmware upgrades.

Q6: What is the warranty period for the UNI-T UTD4302C?

UNI-T covers the UTD4302C with a 24-month manufacturer warranty. ASTZ supports warranty claims and after-sales service for customers in Bangladesh.

Q7: Does the UTD4302C include a multimeter function?

Yes. The instrument integrates a 3½-digit digital multimeter with dedicated multimeter probes included in the package. Users measure DC/AC voltage, current, and resistance without reaching for a separate handheld meter.
