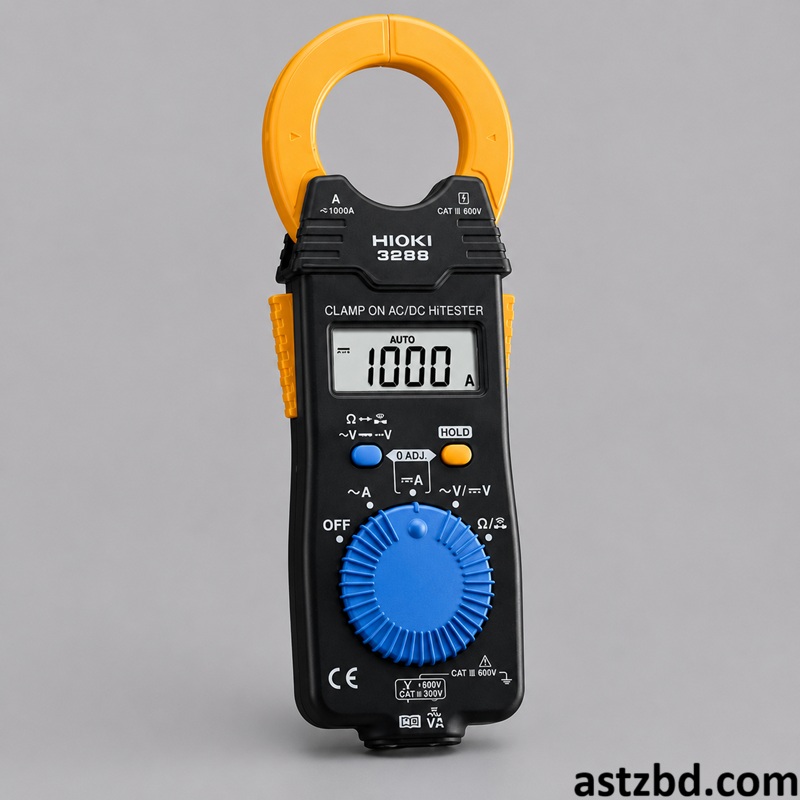

Introduction Hioki 3288 AC/DC Clamp Meter

The Hioki 3288 AC/DC Clamp Meter gives Bangladesh electricians and technicians a compact tool for one-touch maintenance on AC and DC equipment.

Astzbd supplies this clamp meter to panel installers, plant engineers, and testing labs across Dhaka, Chattogram, and Sylhet.

The meter handles current, voltage, and resistance checks with a single device, so technicians carry fewer tools into the field.

Its slim 35 mm jaw reaches conductors inside crowded distribution boards, and its 150 g body fits easily into a technician’s kit.

Consequently, teams complete routine maintenance faster while they maintain accurate, repeatable readings on every job.



Specifications AC DC Clamp Meter Bangladesh

DC Current Range	100.0 A / 1000 A, Basic accuracy: ±1.5% rdg. ±5 dgt.
AC Current Range	100.0 A / 1000 A (10 Hz to 500 Hz, average rectified), Basic accuracy: ±1.5% rdg. ±5 dgt.
DC Voltage Range	419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3% rdg. ±4 dgt.
AC Voltage Range	4.199 V to 600 V, 4 ranges (30 to 500 Hz, average rectified), Basic accuracy: ±2.3% rdg. ±8 dgt.
Resistance Range	419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2% rdg. ±4 dgt.
Continuity Check	Buzzer sounds at 50 Ω ±40 Ω or less
Other Functions	Data hold, Auto power save, Auto zero (DC A)
Display	LCD, max. 4199 digits, refresh rate 2.5 times/second
Power Supply	Coin-type lithium battery (CR2032) ×1, approx. 60 hours continuous use
Core Jaw Diameter	φ35 mm (1.38 in)
Dimensions	57 mm (W) × 180 mm (H) × 16 mm (D)
Mass	150 g (5.3 oz)
Safety Rating	CAT III 600 V (current), CAT III 300 V (voltage)
Standards	EN 61010-1, EN 61010-031, EN 61010-2-032
Included Accessories	CR2032 battery, Carrying case (9398), Test lead (L9208), Instruction manual
Country of Manufacture	Japan



Key Features 1000A Digital Clamp Meter

1. The clamp meter measures AC and DC current across 100.0 A and 1000 A ranges, so it covers small loads and heavy industrial circuits alike.
2. It also measures AC and DC voltage from 419.9 mV to 600 V across five ranges, which supports both control-circuit and mains-level checks.
3. A dedicated resistance range spans 419.9 Ω to 41.99 MΩ across six ranges, and a built-in buzzer confirms continuity below 50 Ω.
4. The 35 mm slim-core jaw opens with an independent double-lever design, so technicians clamp conductors in tight panels without disturbing neighboring wires.
5. A large 4199-count LCD refreshes 2.5 times per second, therefore readings stay legible even in dim switchgear rooms.
6. Data hold and auto power save extend battery life, and a single CR2032 coin cell powers up to 60 hours of continuous use.
7. The meter weighs only 150 g and measures 180 mm in length, so it travels comfortably in a shirt pocket or tool pouch.



Applications Hioki Clamp On HiTester

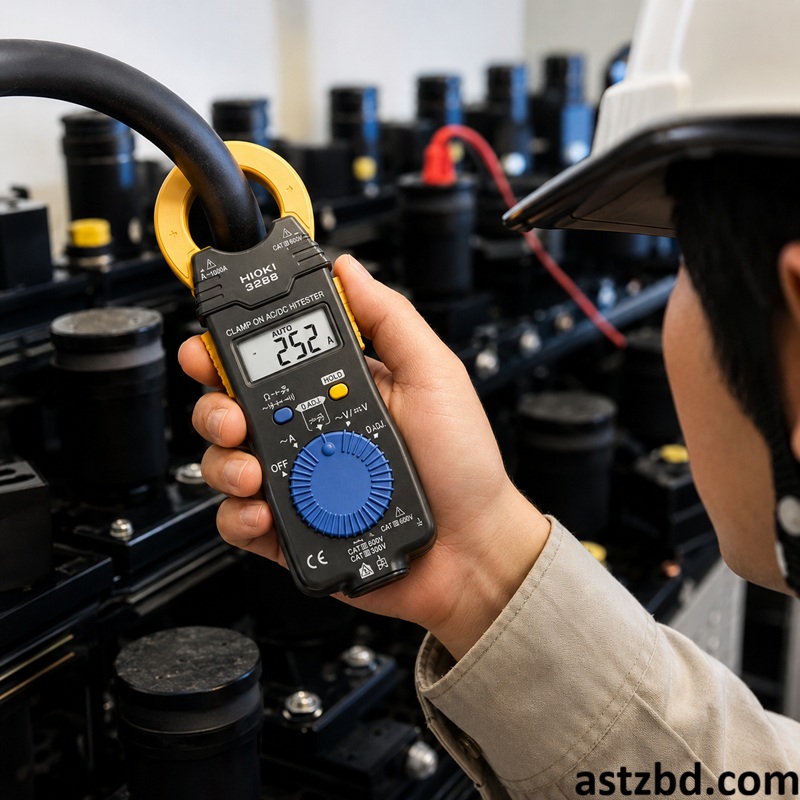

1. Technicians use the clamp meter to check load currents in electrical installations, distribution panels, and machine connections.
2. Maintenance teams rely on it for high-current checks on UPS emergency batteries and train motor circuits.
3. Electricians apply it during routine inspection of motor connections, since it reads both AC and DC current without opening the circuit.
4. Facility engineers use the resistance and continuity functions to trace wiring faults in commercial and industrial buildings.
5. Field crews carry the meter for voltage verification on control panels before they proceed with equipment servicing.
6. Solar and battery technicians measure DC current on charge controllers and battery banks with confidence.
7. Quality teams in Dhaka, Chattogram, and Sylhet use the meter for incoming inspection of imported electrical equipment.



Who Uses This Hioki Clamp On HiTester

1. Electrical contractors in Bangladesh use the Hioki 3288 for daily load checks on residential and commercial installations.
2. Industrial maintenance engineers rely on it to diagnose motor and machine faults on factory floors.
3. Power utility technicians use the meter for field verification of distribution panel currents.
4. Testing and calibration labs in Dhaka and Chattogram use it as a reference tool for routine electrical audits.
5. University and polytechnic instructors use the clamp meter to teach students accurate current and voltage measurement.
6. Building facility managers keep the meter on hand for preventive maintenance on HVAC and lighting circuits.
7. Renewable energy technicians use it to verify DC current on solar arrays and backup battery systems.



Why Buy From Astzbd Clamp Multimeter with Resistance Test

1. Astzbd sources the Hioki 3288 AC/DC Clamp Meter directly from authorized channels, so customers receive a genuine, calibrated instrument.
2. The team ships the meter with full accessories to Dhaka, Chattogram, and Sylhet, and it confirms stock before every order.
3. Astzbd publishes complete technical documentation in English, therefore engineers can verify specifications before they purchase.
4. The company offers after-sales support for calibration guidance and accessory replacement across Bangladesh.
5. Astzbd maintains transparent pricing and responds quickly to quotation requests from laboratories and contractors.



Frequently Asked Questions Hioki 3288 AC/DC Clamp Meter

Q: What current range does the Hioki 3288 AC/DC Clamp Meter measure?

A: The meter measures AC and DC current across two ranges, 100.0 A and 1000 A, with a basic accuracy of ±1.5% of reading ±5 digits.

Q: Does the Hioki 3288 measure True RMS current?

A: The standard 3288 uses average-rectified measurement, while the 3288-20 variant adds True RMS measurement for distorted waveforms; Astzbd stocks the standard 3288.

Q: Can this clamp meter check resistance and continuity?

A: Yes, the meter measures resistance from 419.9 Ω to 41.99 MΩ across six ranges, and a buzzer sounds for continuity below approximately 50 Ω.

Q: What is the jaw opening size on the Hioki 3288?

A: The clamp jaw opens to 35 mm and uses an independent double-lever design, so it accesses conductors in crowded panels easily.

Q: What accessories come with the Hioki 3288 AC/DC Clamp Meter?

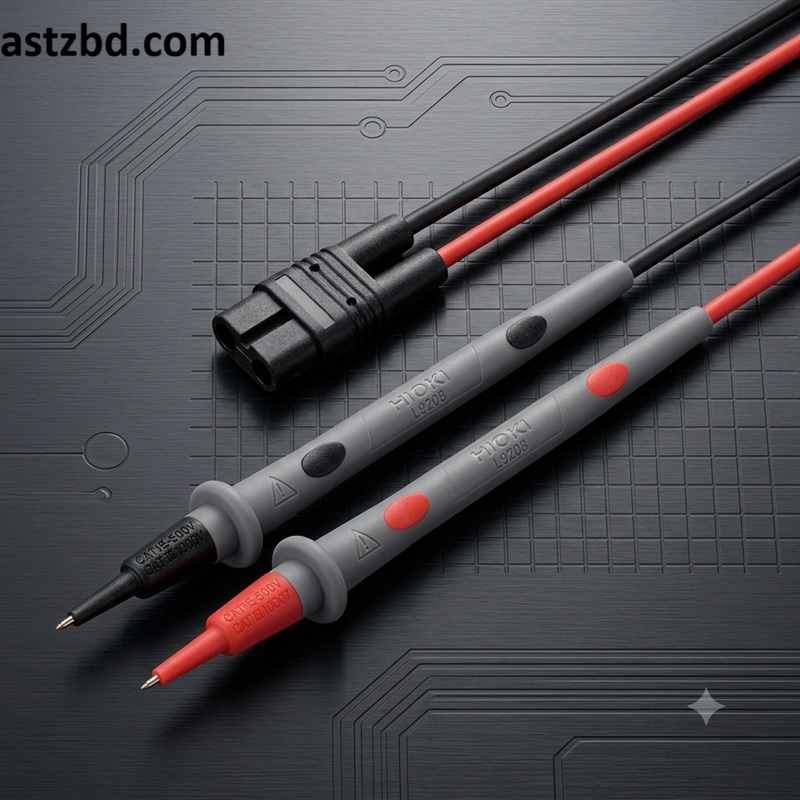

A: Astzbd ships the meter with a CR2032 battery, a 9398 carrying case, an L9208 test lead, and the instruction manual.

Q: How long does the battery last?

A: A single CR2032 coin battery powers the meter for approximately 60 hours of continuous use.

Q: Is the Hioki 3288 suitable for high-voltage panels?

A: The meter carries a CAT III 600 V rating for current measurement and a CAT III 300 V rating for voltage measurement, so it suits standard distribution panel work.
