Description
Features
Capable of measuring AC and DC currents up to 300A
Data hold function
Auto-zero function to allow one touch zero adjustment
Sleep function to save battery consumption
24mm diameter tear drop shaped jaws

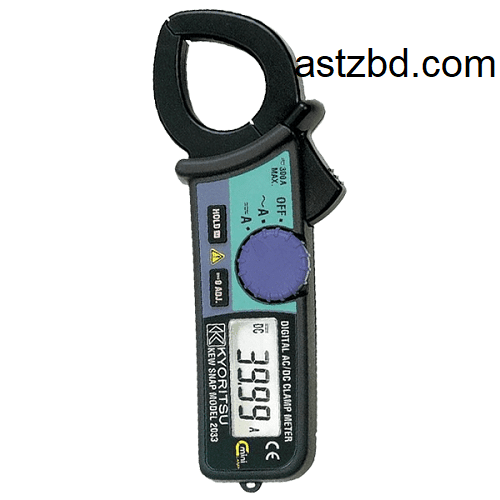

Kyoritsu 2033 Specifications
| AC A | |
| Measuring Ranges | 40/300A |
| Accuracy | 0 to 40.00A: ±1.0%rdg ±4dgt at 50 to 60Hz, ±1.0%rdg ±4dgt at 20 to 1kHz 20.0 to 200.0A: ±1.0%rdg ±4dgt at 50 to 60Hz, ±1.0%rdg ±4dgt at 20 to 1kHz 200.0 to 300.0A: ±3.5%rdg at 50 to 60Hz, ±4.0%rdg at 20 to 1kHz |
| DC A | |
| Ranges | 40/300A |
| Accuracy | 0 to 40A: ±1.0%rdg ±4dgt ±20 to ±200A: ±1.5%rdg ±4dgt ±200 to ±300A: ±3%rdg |
| General Specifications | |
| Conductor Size | Ø24mm Maximum |
| Safety Standard | IEC 61010-1 CAT III 300V IEC 61010-2-032 |
| Frequency Response | DC, 20Hz to 1kHz |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | 2 x LR-44 1.5V Batteries |
| Dimensions | 147 x 59 x 25mm |
| Weight | Approx. 100g |
